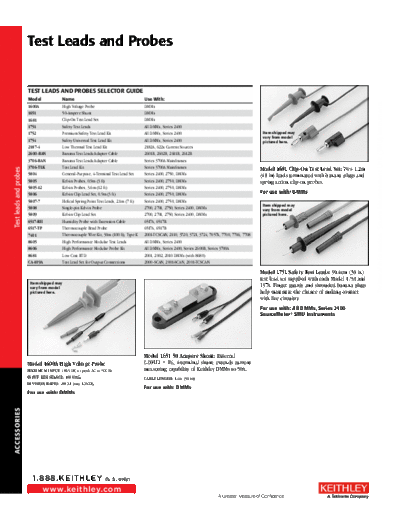

Test leads and Probes
TEsT lEaDs aND ProbEs sElECTor GuIDE
Model Name use With:
Technical information: Source Measurement Unit (SMU) Instruments
1600A High Voltage Probe DMMs
1651 50-Ampere Shunt DMMs
1681 Clip-On Test Lead Set DMMs
1751 Safety Test Leads All DMMs, Series 2400
1752 Premium Safety Test Lead Kit All DMMs, Series 2400 Item shipped may
vary from model
1754 Safety Universal Test Lead Kit All DMMs, Series 2400 pictured here.
2187-4 Low Thermal Test Lead Kit 2182A, 622x Current Sources
2600-BAN Banana Test Leads/Adapter Cable 2601B, 2602B, 2611B, 2612B
3706-BAN Banana Test Leads/Adapter Cable Series 3700A Mainframes
3706-TLK Test Lead Kit Series 3700A Mainframes Model 1681 Clip-On Test Lead Set: Two 1 .2m
Test leads and probes
5804 General-Purpose, 4-Terminal Test Lead Set Series 2400, 2750, DMMs (48 in) leads terminated with banana plugs and
5805 Kelvin Probes, 0 .9m (3 ft) Series 2400, 2750, DMMs spring action clip-on probes .
5805-12 Kelvin Probes, 3 .6m (12 ft) Series 2400, 2750, DMMs
5806 Kelvin Clip Lead Set, 0 .9m (3 ft) Series 2400, 2750, DMMs for use with: DMMs
5807-7 Helical Spring Point Test Leads, 2 .1m (7 ft) Series 2400, 2750, DMMs
Item shipped may
5808 Single-pin Kelvin Probe 2700, 2701, 2750, Series 2400, DMMs vary from model
5809 Kelvin Clip Lead Set 2700, 2701, 2750, Series 2400, DMMs pictured here.
6517-RH Humidity Probe with Extension Cable 6517A, 6517B
6517-TP Thermocouple Bead Probe 6517A, 6517B
7401 Thermocouple Wire Kit, 30m (100 ft), Type K 2001-TCSCAN, 2110, 3720, 3721, 3724, 7057A, 7700, 7706, 7708
8605 High Performance Modular Test Leads All DMMs, Series 2400
8606 High Performance Modular Probe Kit All DMMs, Series 2400, Series 2600B, Series 3700A
8681 Low Cost RTD 2001, 2002, 2010 DMMs (with 8680)
CA-109A Test Lead Set for Output Connections 2000-SCAN, 2001-SCAN, 2001-TCSCAN
Model 1751 Safety Test Leads: 91 .4cm (36 in)
test lead set supplied with each Model 175A and
Item shipped may
vary from model
197A . Finger guards and shrouded banana plugs
pictured here. help minimize the chance of making contact
with live circuitry .
for use with: all DMMs, series 2400
