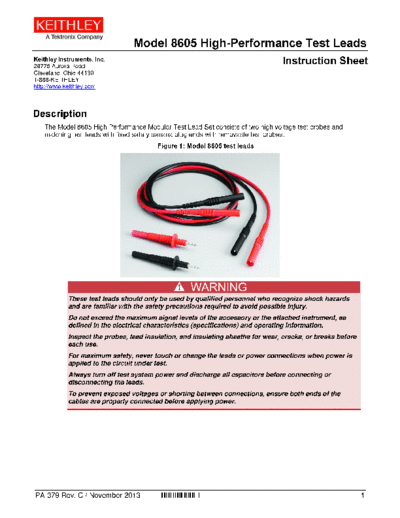

Image preview - the first page of the document



>> Download PA-379(C-November2013)(8605) documenatation <<

Text preview - extract from the document

                                 Model 8605 High-Performance Test Leads
Keithley Instruments, Inc.
28775 Aurora Road
                                                                                 Instruction Sheet
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com



Description
   The Model 8605 High Performance Modular Test Lead Set consists of two high voltage test probes and
   matching test leads with fixed safety banana plug ends with removable test probes.
                                         Figure 1: Model 8605 test leads




            These test leads should only be used by qualified personnel who recognize shock hazards
            and are familiar with the safety precautions required to avoid possible injury.
            Do not exceed the maximum signal levels of the accessory or the attached instrument, as
            defined in the electrical characteristics (specifications) and operating information.
            Inspect the probes, lead insulation, and insulating sheaths for wear, cracks, or breaks before
            each use.
            For maximum safety, never touch or change the leads or power connections when power is
            applied to the circuit under test.
            Always turn off test system power and discharge all capacitors before connecting or
            disconnecting the leads.
            To prevent exposed voltages or shorting between connections, ensure both ends of the
            cables are properly connected before applying power.




PA-379 Rev. C / November 2013            *PPA379C*                                                           1
Model 8605 High-Performance Test Leads


Mechanical characteristics
    Cable length: 3.3 ft (1 m)

Electrical characteristics
    Maximum ratings
