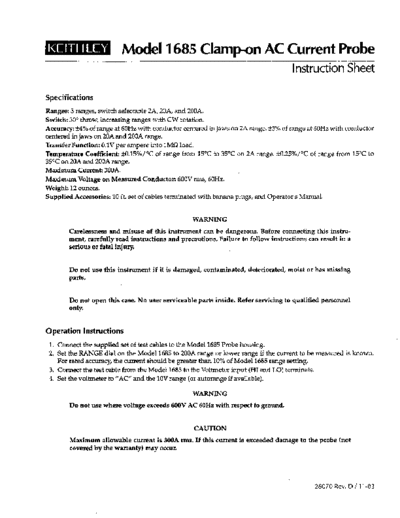

Image preview - the first page of the document



>> Download 28070D(Model1685) documenatation <<

Text preview - extract from the document

                            Model 1685 Clamp-on AC Current Probe
                                                                                           Instruction Sheet

Specifications
Ranges: 3 ranges, switch selectable 2A, ZOA, and 200A.
Switck: 30' throw, increasing ranges with CW rotation.
Accuracy: i4% of range at 60Hz with conductor centered in jaws on 2A range. zk3% of range at 60Hz with conductor
centered in jaws on 20A and ZOOA range.
Transfer Function: O.lV per ampere into 1MR load.
Temperature Coefficient: M.l5%PC        of range from 15'C to 35'C on 2A range. M.25%PC of range from 15'C to
35
