Model 2450-TRX-BAN
Keithley Instruments, Inc.
28775 Aurora Road
Triaxial to Banana Cable
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Description
The Model 2450-TRX-BAN cable connects three male triaxial connectors to five female safety banana jacks
(4 mm safety jacks).

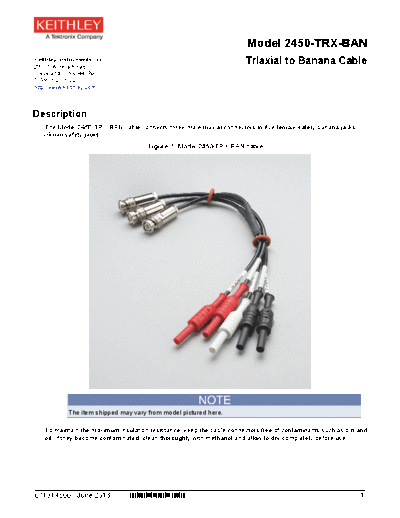

Figure 1: Model 2450-TRX-BAN cable
The item shipped may vary from model pictured here.
To maintain the maximum insulation resistance, keep the cable connectors free of contaminants such as dirt and
oil. If they become contaminated, clean thoroughly with methanol and allow to dry completely before use.
071314500 / June 2013 *P071314500* 1
Model 2450-TRX-BAN
Characteristics
Length: 12 in. (30.5 cm)
Voltage rating: 1000 VDC (working voltage up to 1000 VDC)
Safety standard: Conforms to the European Union Low Voltage Directive
Installation category: CAT I
Maximum current: 1 A
Operating environment: 32 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
