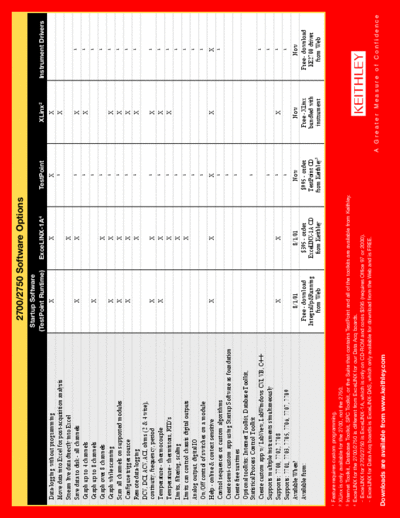

Image preview - the first page of the document
>> Download 2700-2750_SW_Selector documenatation <<
Text preview - extract from the document
2700/2750 Software Options
Startup Software
(TestPoint Runtime) ExceLINX-1A4 TestPoint XLinx2 Instrument Drivers
Data-logging without programming X X X X
Move data into Excel for post-acquisition analysis 1 X
Stream live data directly into Excel X
Save data to disk - all channels X X 1 X 1
Graph up to 4 channels 1 X 1
Graph up to 8 channels X 1 1
Graph over 8 channels X 1 1
Graph while scanning X X 1 X 1
Scan all channels on supported modules X X 1 X 1
Configure trigger source X X 1 X 1
Remote data-logging X 1 X 1
DCV, DCI, ACV, ACI, ohms (2 & 4 wire),
continuity, frequency, period X X 1 X 1
Temperature - thermocouple X X 1 X 1
Temperature - thermistors, RTD's X 1 X 1
Limits, filtering, scaling X 1 1
Limits can control chassis digital outputs X 1 1
Analog output, digital IO 1 1
On/Off control of switches on a module 1 1
Help - online & context sensitive X X X X X
Control sequences or custom algorithms 1 1
Create semi-custom app using Startup Software as foundation 1
Create free runtimes 1
Optional toolkits: Internet Toolkit, Database Toolkit,
Statistical Process Control Toolkit 1
Create custom app w/ LabView, LabWindows CVI, VB, C++ 1
Supports multiple instruments simultaneously 1 1
Supports: 7700, 7702, 7708 X X 1 X 1
Supports: 7701, 7703, 7705, 7706, 7707, 7709 1 1
Available When? 8/1/01 8/1/01 Now Now Now
Available from: Free - download $395 - order $995 - order Free - XLinx Free - download
IntegraUp&Running ExceLINX-1A CD TestPoint CD bundled with KE2700 driver
from Web from Keithley from Keithley3 instrument from Web
1 Feature requires custom programming.
2 XLinx is only available for the 2700, not the 2750.
3 Internet Toolkit, Database Toolkit, SPC Toolkit, or the Suite that contains TestPoint and all of the toolkits are available from Keithley.
4 ExceLINX for the 2700/2750 is different from ExceLINX for our Data Acq boards.
- ExceLINX for 2700/2750 is ExceLINX-1A, which is only on CD-ROM and costs $395 (requires Office 97 or 2000).
- ExceLINX for Data Acq boards is ExceLINX-DAS, which only available for download from the Web and is FREE.
