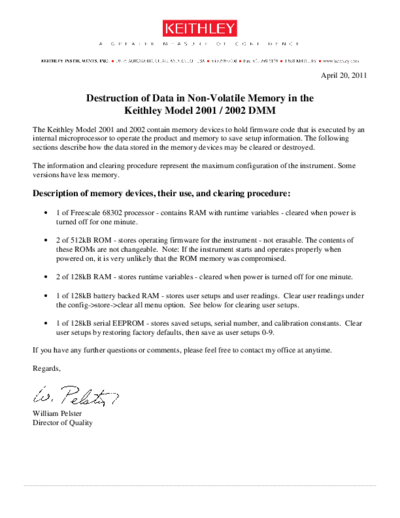

                                                                                            April 20, 2011


                 Destruction of Data in Non-Volatile Memory in the
                         Keithley Model 2001 / 2002 DMM
The Keithley Model 2001 and 2002 contain memory devices to hold firmware code that is executed by an
internal microprocessor to operate the product and memory to save setup information. The following
sections describe how the data stored in the memory devices may be cleared or destroyed.

The information and clearing procedure represent the maximum configuration of the instrument. Some
versions have less memory.

Description of memory devices, their use, and clearing procedure:

       1 of Freescale 68302 processor - contains RAM with runtime variables - cleared when power is
       turned off for one minute.

       2 of 512kB ROM - stores operating firmware for the instrument - not erasable. The contents of
       these ROMs are not changeable. Note: If the instrument starts and operates properly when
       powered on, it is very unlikely that the ROM memory was compromised.

       2 of 128kB RAM - stores runtime variables - cleared when power is turned off for one minute.

       1 of 128kB battery backed RAM - stores user setups and user readings. Clear user readings under
       the config->store->clear all menu option. See below for clearing user setups.

       1 of 128kB serial EEPROM - stores saved setups, serial number, and calibration constants. Clear
       user setups by restoring factory defaults, then save as user setups 0-9.

If you have any further questions or comments, please feel free to contact my office at anytime.

Regards,




William Pelster
Director of Quality
