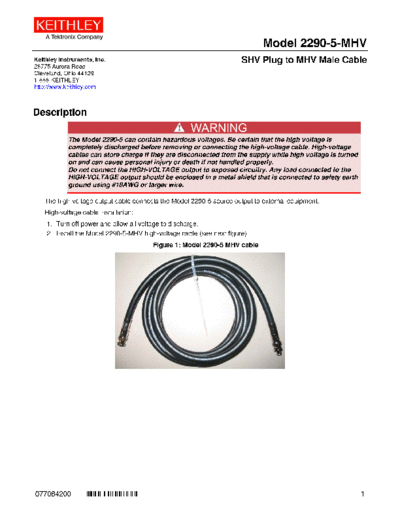

Image preview - the first page of the document



>> Download 077084200(2290-5-MHV) documenatation <<

Text preview - extract from the document

                                                                            Model 2290-5-MHV
Keithley Instruments, Inc.                                            SHV Plug to MHV Male Cable
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com



Description

            The Model 2290-5 can contain hazardous voltages. Be certain that the high voltage is
            completely discharged before removing or connecting the high-voltage cable. High-voltage
            cables can store charge if they are disconnected from the supply while high voltage is turned
            on and can cause personal injury or death if not handled properly.
            Do not connect the HIGH-VOLTAGE output to exposed circuitry. Any load connected to the
            HIGH-VOLTAGE output should be enclosed in a metal shield that is connected to safety earth
            ground using #18AWG or larger wire.

   The high-voltage output cable connects the Model 2290-5 source output to external equipment.
   High-voltage cable installation:
    1. Turn off power and allow all voltage to discharge.
    2. Install the Model 2290-5-MHV high-voltage cable (see next figure).
                                        Figure 1: Model 2290-5 MHV cable




077084200          *077084200*                                                                              1
Model 2290-5-MHV SHV plug to MHV male cable


Characteristics
    Length                                    10 feet (3.05 meters)

    Type                                      RG-8A/U coax

    Maximum operating voltage (RMS)           5,000 volts

    Impedance                                 50 Ohms




2                                                                     077084200
