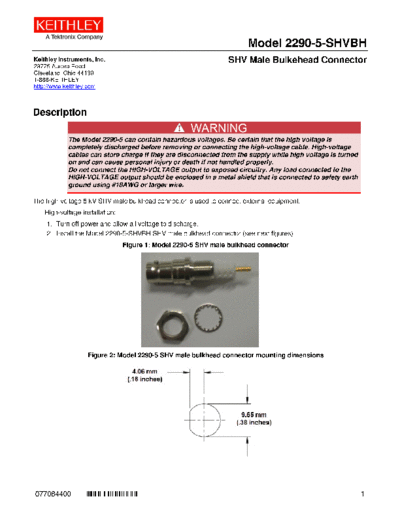

Image preview - the first page of the document
077084400(2290-5-SHVBH)


>> Download 077084400(2290-5-SHVBH) documenatation <<

Text preview - extract from the document
                                                                      Model 2290-5-SHVBH
Keithley Instruments, Inc.                                      SHV Male Bulkehead Connector
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com



Description

            The Model 2290-5 can contain hazardous voltages. Be certain that the high voltage is
            completely discharged before removing or connecting the high-voltage cable. High-voltage
            cables can store charge if they are disconnected from the supply while high voltage is turned
            on and can cause personal injury or death if not handled properly.
            Do not connect the HIGH-VOLTAGE output to exposed circuitry. Any load connected to the
            HIGH-VOLTAGE output should be enclosed in a metal shield that is connected to safety earth
            ground using #18AWG or larger wire.

The high-voltage 5 kV SHV male bulkhead connector is used to connect external equipment.
   High-voltage installation:
    1. Turn off power and allow all voltage to discharge.
    2. Install the Model 2290-5-SHVBH SHV male bulkhead connector (see next figures).
                                Figure 1: Model 2290-5 SHV male bulkhead connector




                   Figure 2: Model 2290-5 SHV male bulkhead connector mounting dimensions




077084400          *077084400*                                                                              1
Model 2290-5-SHVBH Connector


Characteristics
    Nominal impedance                                 non-constant

    Maximum operating voltage (RMS)                   3500 RMS
                                                      5000 V DC

    Insulation resistance                             10E6 M

    Temperature range                                 -65
