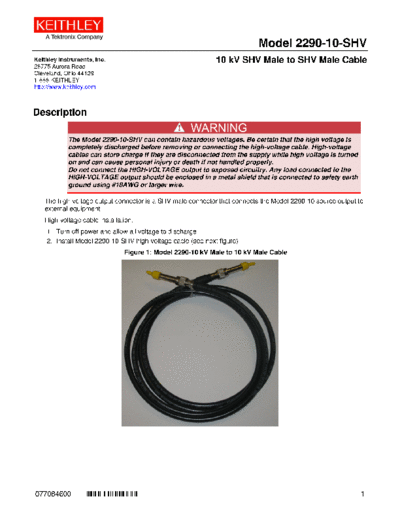

Image preview - the first page of the document



>> Download 077084600(2290-10-SHV) documenatation <<

Text preview - extract from the document

                                                                          Model 2290-10-SHV
Keithley Instruments, Inc.                                   10 kV SHV Male to SHV Male Cable
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com



Description

            The Model 2290-10-SHV can contain hazardous voltages. Be certain that the high voltage is
            completely discharged before removing or connecting the high-voltage cable. High-voltage
            cables can store charge if they are disconnected from the supply while high voltage is turned
            on and can cause personal injury or death if not handled properly.
            Do not connect the HIGH-VOLTAGE output to exposed circuitry. Any load connected to the
            HIGH-VOLTAGE output should be enclosed in a metal shield that is connected to safety earth
            ground using #18AWG or larger wire.

   The high-voltage output connector is a SHV male connector that connects the Model 2290-10 source output to
   external equipment.
   High-voltage cable installation:
    1. Turn off power and allow all voltage to discharge.
    2. Install Model 2290-10-SHV high-voltage cable (see next figure).
                               Figure 1: Model 2290-10 kV Male to 10 kV Male Cable




077084600          *077084600*                                                                              1
Model-10-SHV 10 kV SHV Male to SHV Male Cable


Electrical characteristics
    Length                                      10 feet (3.05 meters)

    Type                                        RG-213/U coax cable

    Maximum operating voltage (RMS)             10,000 volts




2                                                                       077084600
