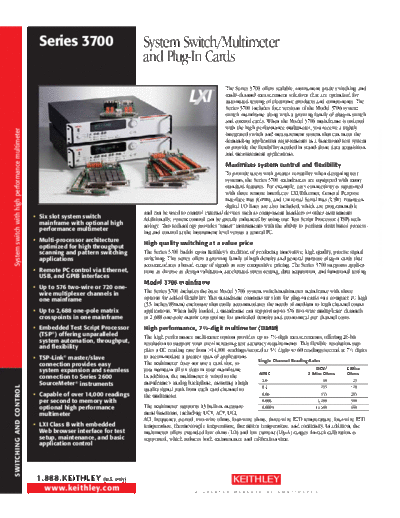

Image preview - the first page of the document



>> Download Ser3700Switch documenatation <<

Text preview - extract from the document

                                                   Series 3700                       System Switch/Multimeter
                                                                                     and Plug-In Cards
                                                                                                                            The Series 3700 offers scalable, instrument grade switching and
                                                                                                                            multi-channel measurement solutions that are optimized for
                                                                                                                            automated testing of electronic products and components. The
                                                                                                                            Series 3700 includes four versions of the Model 3706 system
                                                                                                                            switch mainframe along with a growing family of plug-in switch
                                                                                                                            and control cards. When the Model 3706 mainframe is ordered
                                                                                                                            with the high performance multimeter, you receive a tightly
System switch with high performance multimeter




                                                                                                                                                                                                    System switch with high performance multimeter
                                                                                                                            integrated switch and measurement system that can meet the
                                                                                                                            demanding application requirements in a functional test system
                                                                                                                            or provide the flexibility needed in stand-alone data acquisition
                                                                                                                            and measurement applications.
                                                                                                                          Maximizes system control and flexibility
                                                                                                                          To provide users with greater versatility when designing test
                                                                                                                          systems, the Series 3700 mainframes are equipped with many
                                                                                                                          standard features. For example, easy connectivity is supported
                                                                                                                          with three remote interfaces: LXI/Ethernet, General Purpose
                                                                                                                          Interface Bus (GPIB), and Universal Serial Bus (USB). Fourteen
                                                                                                                          digital I/O lines are also included, which are programmable
                                                                                     and can be used to control external devices such as component handlers or other instruments.
