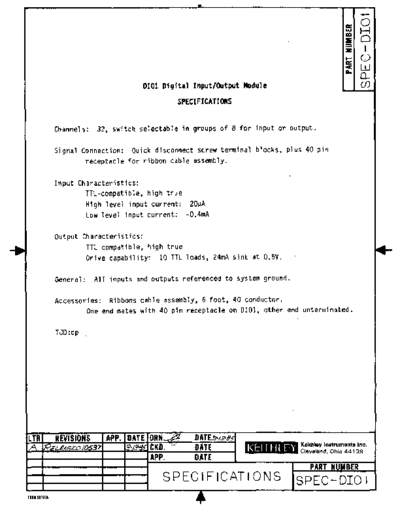

Image preview - the first page of the document
>> Download DIO1_500RevA_DocSpec documenatation <<
Text preview - extract from the document
0101 Dlgttal Input/Output bdulc
SPECIFICATIONS
Channels: 32, switch selectable in groups of 8 for input or output.
Signal Connection: Quick disconnect screw terminal blocks, plus 40 pin
receptacle for ribbon cable assembly.
Input Characteristics:
TTL-compatible. high true
High level input current: 20uA
Low level input current: -0.4mA
Output Characteristics:
TTL compatible, high true
-b Drive capability: 10 TTL loads, 24mA sink at 0.5V.
General: All inputs and outputs referenced to system ground.
Accessories: Ribbons cable assembly, 6 foot, 40 conductor.
One end mates with 40 pin receptacle on 0101. other end unterminated.
TJD:cp
TR REVISIONS APP. DATE IORN DATEswe
Keithley Instruments Inc.
4 3-/-9d CKD.
&?~UY.&s,%.:,/o5??7 DATE Cleveland, Ohio 44 139
~~ IAPP.
_._ DATE
-...-
I PARTNUMBER
I
I I \ SPECIFICATIONS SpEC-DIO 1
