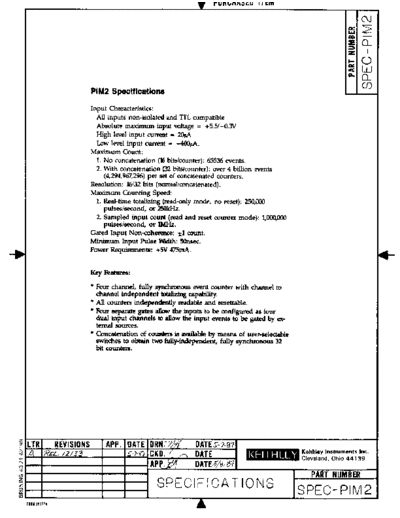

Image preview - the first page of the document
PIM2_500RevA_DocSpec


>> Download PIM2_500RevA_DocSpec documenatation <<

Text preview - extract from the document
                     PM2 Spedflcations
                     Input Characteristics:
                       All inputs non-isolated and T'IX compatible
                       Absolute maximum input voltage = +5.5/-0.3V
                       I-I&h level input current = 20/1A
                       Low level input current - -4aOfi.
                     Maximum Count:
                       1. No concatenation (I6 bits/counter): 65536 events.
                       2. With concatenation (32 bits/counter): over 4 billion events
                          (4,294,967,2%)per set of concatenated counters.
                     Resolution: I6132bits (-al/concatenated).
                     Maximum Counting Speed:
                       1. Real-time tot&zing (mad-only mode, no reset): 250,OLM
                          pulses/second, or 2!%Hz.
                       2. Sampled input count (read and reset counter mode): l,OOO,ooO
                          pulses/second, or IMHz.
                     Gated Input Non-cob-e:        iI count,
                     Minimum Input Pulse width: 5Ousec.
                     Power Fkquimmenix +5V 475mA.
                                                                                                                        c
                     * Four channel, fully synchronous event counter with channel to
                       channel independent &talk@ capability.
                     * All counters independently readable and resettable.
                     l Ibur separate gates a&w the inputs to be conflgwed as four
                       dual input channels to allow the inPut events to be gated by ex-
                       tend sources.
                     l Concatenation of counters is availableby means of user-selectable
                       switches to obtain hvo fully-independent, fully synchmnous 32
                       bit counters.




                                                                                           Keith&    Instruments Inc.
      7&L.   12133               57-Y)ICKD. ' ,-, DATE                                     Cleveland. Ohio 44139
                                -      Ape.-&/
g                                                                                             PARTNUMBER
5                                      7 SPECIFICATIONS                                    SPEC-PIM2
