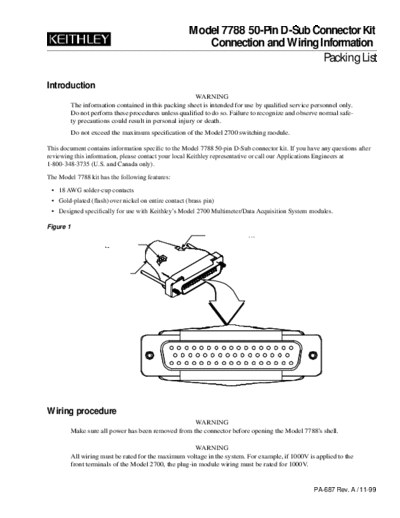

Image preview - the first page of the document



>> Download pa687a(Model 7788) documenatation <<

Text preview - extract from the document

                                                      Model 7788 50-Pin D-Sub Connector Kit
                                                         Connection and Wiring Information
                                                                                Packing List

Introduction
                                                         WARNING
           The information contained in this packing sheet is intended for use by qualified service personnel only.
           Do not perform these procedures unless qualified to do so. Failure to recognize and observe normal safe-
           ty precautions could result in personal injury or death.
           Do not exceed the maximum specification of the Model 2700 switching module.

This document contains information specific to the Model 7788 50-pin D-Sub connector kit. If you have any questions after
reviewing this information, please contact your local Keithley representative or call our Applications Engineers at
1-800-348-3735 (U.S. and Canada only).

The Model 7788 kit has the following features:
