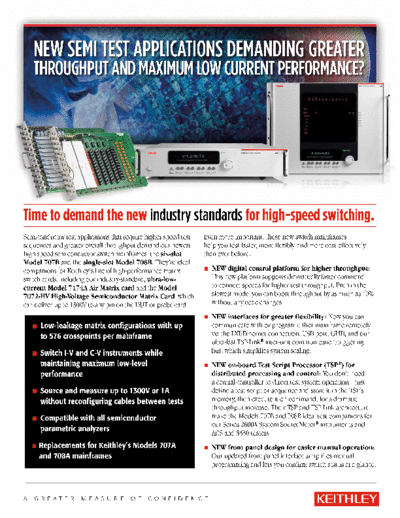

Image preview - the first page of the document



>> Download 707B_708B_flyer documenatation <<

Text preview - extract from the document

    New semi test applicatioNs demaNdiNg greater
    throughput aNd maximum low curreNt performaNce?




Time to demand the new industry standards for high-speed switching.
Semiconductor test applications that require higher-speed test   Even more important, these new switch mainframes
sequences and greater overall throughput demand our newest       help you test faster, more flexibly, and more cost-effectively
high-speed semiconductor switch mainframes, the six-slot         than ever before:
Model 707B and the single-slot Model 708B. They're ideal
companions for Keithley's line of high-performance matrix        n   NEW digital control platform for higher throughput:
switch cards, including our industry-standard, ultra-low-            This new platform supports dramatically faster command-
current Model 7174A Air Matrix card and the Model                    to-connect speeds for higher test throughput. Even in the
7072-HV High-Voltage Semiconductor Matrix Card, which                slowest mode, you can boost throughput by as much as 40%
can deliver up to 1300V to any pin on the DUT or probe card.         without any code changes.
                                                                 n   NEW interfaces for greater flexibility: Now you can
    n   Low-leakage matrix configurations with up                    communicate with or program either mainframe remotely
        to 576 crosspoints per mainframe                             via the LXI/Ethernet connection, USB port, GPIB, and our
                                                                     ultra-fast TSP-Link
