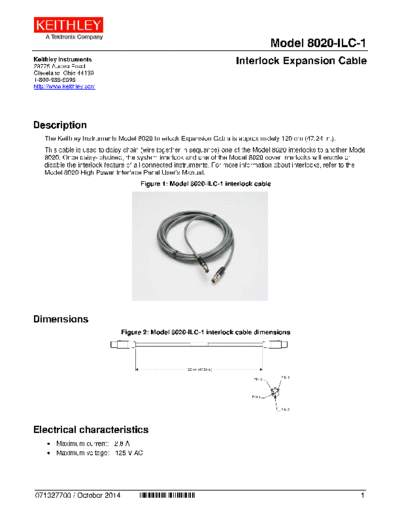

Image preview - the first page of the document
>> Download 071327700 (Oct 2014)(8020-ILC-1) documenatation <<
Text preview - extract from the document
Model 8020-ILC-1
Keithley Instruments
28775 Aurora Road
Interlock Expansion Cable
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Keithley Instruments Model 8020 Interlock Expansion Cable is approximately 120 cm (47.24 in.).
This cable is used to daisy chain (wire together in sequence) one of the Model 8020 interlocks to another Model
8020. Once daisy- chained, the system interlock and one of the Model 8020 cover interlocks will enable or
disable the interlock feature of all connected instruments. For more information about interlocks, refer to the
Model 8020 High Power Interface Panel User's Manual.
Figure 1: Model 8020-ILC-1 interlock cable
Dimensions
Figure 2: Model 8020-ILC-1 interlock cable dimensions
Electrical characteristics
