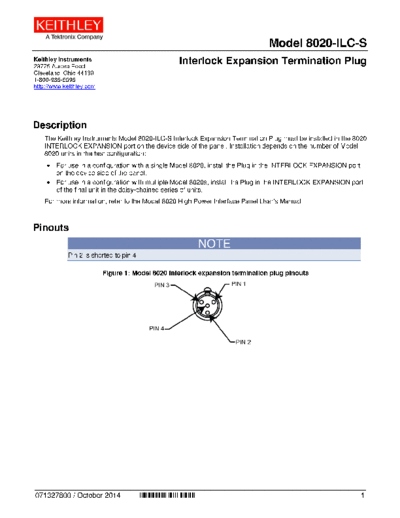

Image preview - the first page of the document
071327800 (Oct 2014)(8020-ILC-S)


>> Download 071327800 (Oct 2014)(8020-ILC-S) documenatation <<

Text preview - extract from the document
                                                                               Model 8020-ILC-S
Keithley Instruments
28775 Aurora Road
                                                  Interlock Expansion Termination Plug
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com




Description
    The Keithley Instruments Model 8020-ILC-S Interlock Expansion Termination Plug must be installed in the 8020
    INTERLOCK EXPANSION port on the device side of the panel. Installation depends on the number of Model
    8020 units in the test configuration:
