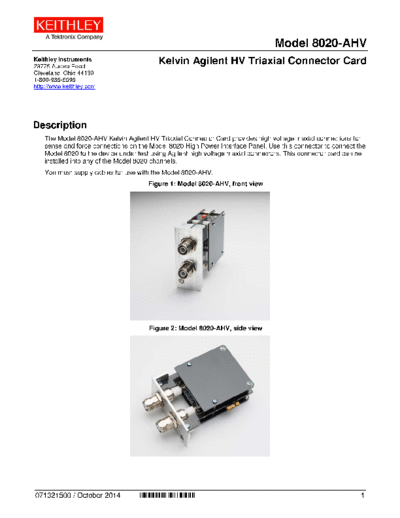

Image preview - the first page of the document
>> Download 071321500 (Oct 2014)(8020-AHV) documenatation <<
Text preview - extract from the document
Model 8020-AHV
Keithley Instruments
28775 Aurora Road
Kelvin Agilent HV Triaxial Connector Card
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Model 8020-AHV Kelvin Agilent HV Triaxial Connector Card provides high voltage triaxial connections for
sense and force connections on the Model 8020 High Power Interface Panel. Use this connector to connect the
Model 8020 to the device under test using Agilent high voltage triaxial connectors. This connector card can be
installed into any of the Model 8020 channels.
You must supply cables for use with the Model 8020-AHV.
Figure 1: Model 8020-AHV, front view
Figure 2: Model 8020-AHV, side view
071321500 / October 2014 *P071321500* 1
Model 8020-AHV
Electrical characteristics
The following characteristics apply when used with the Model 8020:
