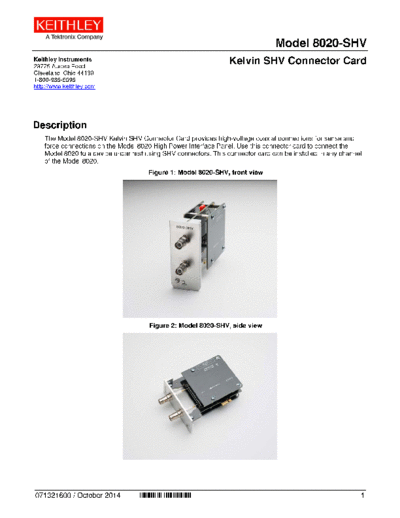

Image preview - the first page of the document
>> Download 071321600 (Oct 2014)(8020-SHV) documenatation <<
Text preview - extract from the document
Model 8020-SHV
Keithley Instruments
28775 Aurora Road
Kelvin SHV Connector Card
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Model 8020-SHV Kelvin SHV Connector Card provides high-voltage coaxial connections for sense and
force connections on the Model 8020 High Power Interface Panel. Use this connector card to connect the
Model 8020 to a device under test using SHV connectors. This connector card can be installed in any channel
of the Model 8020.
Figure 1: Model 8020-SHV, front view
Figure 2: Model 8020-SHV, side view
071321600 / October 2014 *071321600* 1
Model 8020-SHV
Cable connections
Use the following cable to connect to this card:
