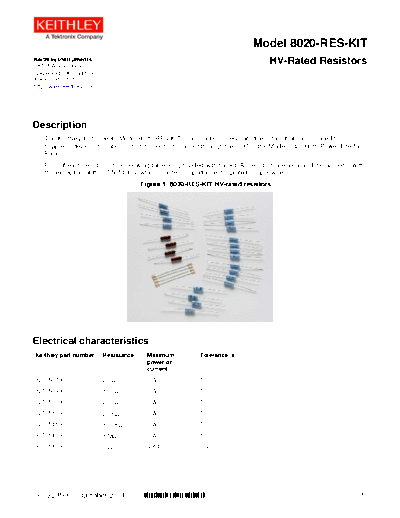

Image preview - the first page of the document



>> Download 071323500 (Oct 2014)(8020-RES-KIT) documenatation <<

Text preview - extract from the document

                                                                                Model 8020-RES-KIT
Keithley Instruments
28775 Aurora Road
                                                                                      HV-Rated Resistors
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com




Description
    The Keithley Instruments Model 8020-RES-KIT is a selection of HV-rated resistors that can be used to
    suppress device oscillations or limit maximum current through the DUT in the Model 8020 High Power Interface
    Panel.
    Four of each resistor in the following table are provided with the kit. All resistors are axial and metal-oxide, with
    the exception of the 325051300, which is a zero-impedance, tin-plated jumper wire.
                                       Figure 1: 8020-RES-KIT HV-rated resistors




Electrical characteristics
Keithley part number      Resistance     Maximum            Tolerance (
