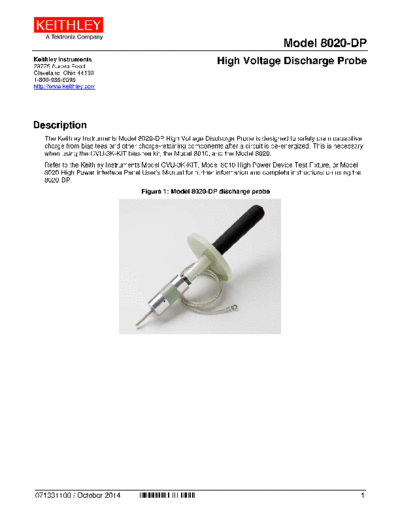

Image preview - the first page of the document
>> Download 071331100 (Oct 2014)(8020-DP) documenatation <<
Text preview - extract from the document
Model 8020-DP
Keithley Instruments
28775 Aurora Road
High Voltage Discharge Probe
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Keithley Instruments Model 8020-DP High Voltage Discharge Probe is designed to safely drain capacitive
charge from bias tees and other charge-retaining components after a circuit is de-energized. This is necessary
when using the CVU-3K-KIT bias tee kit, the Model 8010, and the Model 8020.
Refer to the Keithley Instruments Model CVU-3K-KIT, Model 8010 High Power Device Test Fixture, or Model
8020 High Power Interface Panel User's Manual for further information and complete instructions on using the
8020-DP.
Figure 1: Model 8020-DP discharge probe
071331100 / October 2014 *P071331100* 1
Model 8020-DP
Dimensions
Figure 2: Model 8020-DP dimensions
Electrical characteristics
