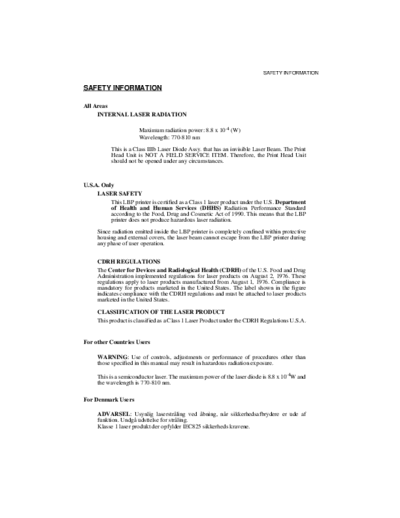

Image preview - the first page of the document
Konica Minolta QMS 2060 pagework20 Service Manual


>> Download Konica Minolta QMS 2060 pagework20 Service Manual documenatation <<

Text preview - extract from the document
                                                                          SAFETY INFORMATION


SAFETY INFORMATION

All Areas
     INTERNAL LASER RADIATION

                      Maximum radiation power: 8.8 x 10-4 (W)
                      Wavelength: 770-810 nm

           This is a Class IIIb Laser Diode Assy. that has an invisible Laser Beam. The Print
           Head Unit is NOT A FIELD SERVICE ITEM. Therefore, the Print Head Unit
           should not be opened under any circumstances.



U.S.A. Only
     LASER SAFETY
          This LBP printer is certified as a Class 1 laser product under the U.S. Department
          of Health and Human Services (DHHS) Radiation Performance Standard
          according to the Food, Drug and Cosmetic Act of 1990. This means that the LBP
          printer does not produce hazardous laser radiation.

     Since radiation emitted inside the LBP printer is completely confined within protective
     housing and external covers, the laser beam cannot escape from the LBP printer during
     any phase of user operation.


     CDRH REGULATIONS
     The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug
     Administration implemented regulations for laser products on August 2, 1976. These
     regulations apply to laser products manufactured from August 1, 1976. Compliance is
     mandatory for products marketed in the United States. The label shown in the figure
     indicates compliance with the CDRH regulations and must be attached to laser products
     marketed in the United States.

     CLASSIFICATION OF THE LASER PRODUCT
     This product is classified as a Class 1 Laser Product under the CDRH Regulations U.S.A.


For other Countries Users

     WARNING: Use of controls, adjustments or performance of procedures other than
     those specified in this manual may result in hazardous radiation exposure.

     This is a semiconductor laser. The maximum power of the laser diode is 8.8 x 10-4W and
     the wavelength is 770-810 nm.

For Denmark Users

     ADVARSEL: Usynlig laserstr
