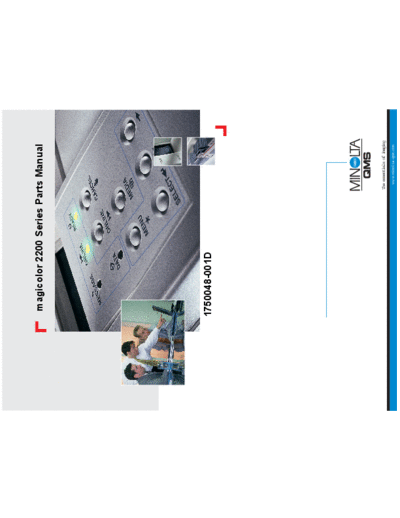

Image preview - the first page of the document
Konica Minolta QMS magicolor 2200 Parts Manual


>> Download Konica Minolta QMS magicolor 2200 Parts Manual documenatation <<

Text preview - extract from the document
 magicolor 2200 Series Parts Manual




1750048-001D




                         The essentials of imaging
                           w w w.minolta-qms.com
                                                                                                                                                                          I
                                                                                                                                                PARTS MANUAL
                    PREFACE

1.   The part numbers listed in Parts Manual are those which were assigned to the parts making up the machine at the time machine was originally introduced
     onto the market.


2.   Parts whose INDEX numbers are shown white against a black background in the illustration are those to be used in only certain market areas. These part
     numbers are given in the lower half part of the list section. Check the SFIX No. listed in SFIX CHART on page II to find which part number is applicable
     to your own area.


3.   Parts whose INDEX numbers are shown black against a white background in the illustration are those to be used in all market areas. These parts are
     listed on the upper half part of the list section.


4.   If "NS" follows a part number given in the list section, it indicates that we do not keep a stock of the part. The part is not required for ordinary service jobs,
     either.


5.   If "RP" is shown in the REC column of the list section, it indicates that the part is functionally important.


6.   In the exploded views in this Parts Manual the parts (Screws & Washes, etc...) which are indicated with a "four-digit" numbers are listed in numerical order
     in the section "SCREWS AND WASHERS". Please check these "four-digit" numbers with the part numbers ("ten-digit" numbers) which should be used for
     ordering the part.


7.   All part numbers consist of "ten-digit" which should all be quoted when ordering a part. The price of parts can be obtained by referring to the "Parts Price
     List" which is separately issued.


8.   All infomation contained in this parts manual is subject to change.




QMS, the MINOLTA-QMS logo, and magicolor are registered trademarks of MINOLTA-QMS, Inc.
Minolta is a trademark of the Minolta Co., Ltd.
