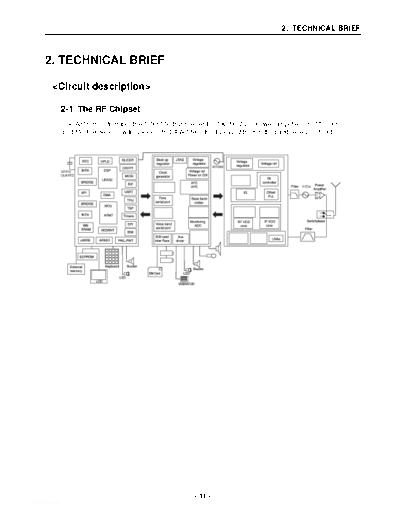

Image preview - the first page of the document
LG B1200 8


>> Download LG B1200 8 documenatation <<

Text preview - extract from the document
                                                                            2. TECHNICAL BRIEF



2. TECHNICAL BRIEF



  2-1 The RF Chipset
  The A316 RF integrates the TRF6150 transceiver IC, TX/RX VCO, Power amplifier(RF3110), Front
  End Module 8450T(switchplexer, RF-SAW filter), for dulaband transmitting and receiving function.




  32KHz
  QUARTZ


                                                                                  VCOs




                                              - 11 -
2. TECHNICAL BRIEF



   2-1-1 The Receiver




   The RF receive signal( EGSM 925Mhz
