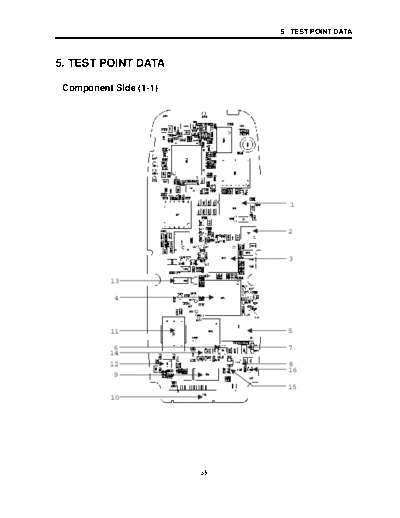

Image preview - the first page of the document
>> Download LG B1200 10 documenatation <<
Text preview - extract from the document
5. TEST POINT DATA
5. TEST POINT DATA
Component Side (1-1)
1
2
3
13
4
11 5
6 7
14
12 8
16
9
15
10
- 35 -
5. TEST POINT DATA
Location Component Side (1-1)
1 J103 Battery connector : For damage or cold soldering cause power on failure
2 Q101 P-channel MOSFET with schottky diode : For damage or cold soldering cause
charger function failure
3 U202 Nausica_CS : analog baseband chipset (ABB)
4 U201 Hercrom20 : digital baseband chipset (DBB)
5 U301 16Mbit flash ROM : For damage or cold soldering cause power on failure
6 U101 3V, 200mA LDO regulator : For damage or cold soldering cause accessory power
failure.
7 Q301 Isolated dual transistors : For damage or cold soldering Q301A cause vibration
motor Failure, Q301B cause keypad back-light failure
8 Q302 Isolated dual transistors : For damage or cold soldering Q302A cause pre-charger
indication failure, Q302B cause the LCD back-light failure
9 J301 Vibration motor : For damage or bad connection cause vibrator failure.
10 J104 System connector : For damage or cold soldering cause headset failure, trace/debug
/SW download failure
11 J102 SIM connector : For damage or bad connection cause SIM card failure.
12 U302 Audio amplifier : For damage cause speaker function failure.
13 Y201 32.768kHz crystal : For damage cause RTC function failure.
14 R104 8P4R resistor network : For damage or cold soldering cause trace/debug
R105 /SW download failure
R109
15 D313 Switching diode array : For damage or cold soldering cause the surge noise by
Vibrator
16 D102 Switching diode array : For damage or cold soldering cause the flash fast program
function failure
- 36 -
5. TEST POINT DATA
Component Side (1-2)
23 19
33 18
29 21
20
26 22
25
24
32
30
28 31
27
- 37 -
5. TEST POINT DATA
Location Component Side (1-2)
18 C223 VR2B regulator (2.85V) : For damage or cold soldering cause power supply for
DBB & ABB peripheral failure.
19 C224 VR1B regulator (2V) : For damage or cold soldering cause power supply for ABB
internal logic failure
20 C225 VR3 regulator (2.85V) : For damage or cold soldering cause power supply for
ABB analog circuits failure
21 C226 VR2 regulator (2.9V) : For damage or cold soldering cause power supply for
Memory device failure.
22 C227 VR1 regulator (1.8V) : For damage or cold soldering cause power supply for
DBB Core & RTC failure
23 C207 SIM regulator (3V/5V) : For damage or cold soldering cause power
C208 supply for SIM Interface failure
24 C206 VREF output (1.2V) : For damage or cold soldering cause power supply for
power on failure
25 R208 IBIAS output : For damage or cold soldering cause power supply for Power on
failure
26 R301 Microphone Input : For damage or cold soldering cause microphone failure
C304
C305
27 R110 Ext. audio Input : For damage or cold soldering cause external audio input failure
C107
28 C106 Ext. audio output : For damage or cold soldering cause external audio output
R107 failure
29 R207 ABB local Osc. generator : For damage or cold soldering cause ABB local Osc.
C205 failure
30 R307A Vibrator control : For damage or cold soldering cause vibrator failure
R308A
31 R307A Back-light control : For damage or cold soldering cause all back-light LED failure
R308A
32 R204 SIM card power control : For damage or cold soldering cause SIM card power
control failure.
33 R210 Uplink & downlink I/Q Filtering : For damage or cold soldering cause uplink or
R215 downlink I/Q signal failure.
C209
C210
- 38 -
5. TEST POINT DATA
Keypad Side (2-1)
1
7
2
4
3
5 6
- 39 -
5. TEST POINT DATA
Location Keypad Side (2-1)
1 LS301 Speaker : For bad connection cause speaker failure
2 DS301 LCM Connector : For damage or cold soldering cause LCD Display failure
3 D301~ Back-Light LED : For damage or cold soldering cause back-light LED failure
D312
4 S301~ Keypad Switches : For damage or shirt circuit cause keypad function failure
S317
5 M301 Microphone holder : For damage or cold soldering cause microphone failure
6 B201 Batter holder : For damage or cold soldering cause RTC function failure
7 Q601 T/R Switch transistor : For damage or cold soldering cause T/R Switch function
failure
- 40 -
