11. EXPLODED VIEW & REPLACEMENT PART LIST
11. EXPLODED VIEW & REPLACEMENT PART LIST

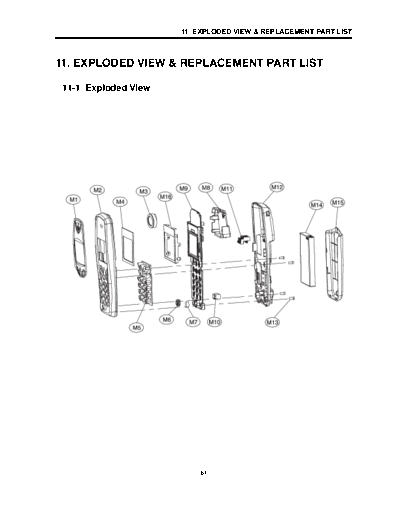

11-1 Exploded View
- 61 -
11. EXPLODED VIEW & REPLACEMENT PART LIST
< Parts List of Exploded View >
No Location No. LG Part No. GVC Part No. Description Specification Service
M1 MWAC0019201 R3870160R0 LCD Lens LCD Window Y
M2 MHDA0005501 R2710267R0 Upper Case (Cobalt Blue) Y
MHDA0005502 R2710268R0 Upper Case (Titanium) Y
MHDA0005503 R2710266R0 Upper Case (Red) Y
M3 LS301SUSY0006501 HJ00118040 Speaker/Receiver/Buzzer 6x2.2OB-2 Speaker/Receiver/Buzzer 6x2.2OB-2 Y
M4 - R3630096G0 Sponge for LCM N
M5 MKAA0004601 R3920058G0 Keypad Rubber Metal Dome Keypad Rubber Y
M6 SUMY0004301 HJ110043C0 MICROPHONE & RUBBER 6x2.2 OB-22S42-C1033 DUAL Y
M7 SBCL0001101 R383003180 Backup Battery 3V 1.8mAh VL621 3V 5mAh Y
M8 SNGF0000901 R3930027H0 ANTENNA EMBEDDED(IN BUILD) Internal Antena Y
M9 SAFY0054401 84044599 Main Board + Key Board (Main PCB Ass'y) Main Board + Key Board Y
M10 MPBZ0014801 R400001580 Vibrator 15x8mm Y
M11 J103ENTB0003601 R3010216M0 Battery Connector Battery Connector Y
M12 MHDB0005401 R2720177R0 Lower Case (Cobalt Blue) Y
MHDB0005402 R2720178R0 Lower Case (Titanium) Y
MHDB0005403 R2720176R0 Lower Case (Red) Y
M13 - R3220063U0 Screws M1.6x4mm N
M14 SBPL0064501 JB040094A0 Battery pack 600mAh Li-Ion Y
M15 MCJA0003401 R2770018R0 Battery Cover (Cobalt Blue) Y
MCJA0003402 R2770019R0 Battery Cover (Titanium) Y
MCJA0003403 R2770017R0 Battery Cover (Red) Y
M16 MHGD0001301 R385003400 LCM Metal Sheet 39.4x36.3x0.2t(LCM cap) 39.4x36.3x0.2t Y
- 62 -
11. EXPLODED VIEW & REPLACEMENT PART LIST
11-2 Accessories
Travel Adapter Portable Handsfree
< Accessories >
ITEM Location No. LG Part No. GVC Part No. Description Specification Service
1 SGEY0003001 JZ01008960 Headset Ear micro phone Y
2 SSAD0011301 JB100133C0 Switching Travel Charger, (Round Pin) RUS Ver. Europe Version (Round Pin) RUS Ver. Y
- 63 -
11. EXPLODED VIEW & REPLACEMENT PART LIST
11-3 Replacement Part List
ITEM Location No. LG Part No. GVC Part No. Description Specification Service Remark
1 - 84044599 Main Board + Key Board (Main PCB Ass'y) Please refer to the `Exploded View' Y M9
U301 EUSY0137301 BG13909YS0 FLASH MEMORY GE28F160C3BC70 VF VFBGA 48-BALL Y
U202 EUSY0137304 CG010248B0 ASIC Nausica TWL3011GGM ABB BGA_100p (TI) Y
U201 EUSY0137306 CG010288B0 F741529AGHH HERCROM20DBB BGA BGA_179p (TI) Y
U601 EUSY0138201 CG01042DB0 TRF6150PAPR CLARA TRANSCEIVER S-PQFP-G64 Rev3 Y
U602 EUSY0138202 CG31028YR0 IC Front End Module FEM8450T FEM8450T Y
U302 EUSY0137307 DA01047Y20 IC Audio Amplifier LM4902MM LM4902MM MSOP-8 Y
U603 EUSY0138203 DA01048YT0 IC Power Amplifier RF3110 RF3110 Y
Q101 EUSY0137311 DE04096YD0 IC MOSFET+Schottky Diode Si483 Si4833DY SO-8 Y
U604 EUSY0137308 DE04099Y30 IC INVERTOR SN74AHC1GU04DCKR SN74AHC1GU04DCKR SOT353 Y
Z601 EUSY0138204 DE04103YZ0 IC BALUN LDB32920M05D-463 LDB32920M05D-463 Y
U101 EUSY0137309 DZ70939YI0 IC Low Drop Regulator RT9167-3 RT9167-30CB SOT25-5 Y
Q602 EQBN0013501 EA95857520 TR NPN BFR505T SOT416 (PHILIPS BFR505T SOT416 Y
Q301 EQBN0013601 EAE1000340 TR NPN Pair IMX9 SMT6 (ROHM) IMX9 SMT6 Y
Q603 EQBP0007401 EB95001840 TR PNP DTA114YE EMT3 (ROHM) DTA114YE EMT3 Y
Q302 EQBP0007601 EBE1000240 TR PNP Pair IMT17 SMT6 (ROHM) IMT17 SMT6 Y
Q601 EQFP0004001 EGE10002T0 Dual P-Channel 1.8V MOSFET 1.8V MOSFET Y
D103, D201 EDSY0011501 EJ12005840 SCHOTTKY DIODE RB751S-40 SOD52 RB751S-40 SOD523 Y
D313 EDSY0011601 EJE1001640 DIODE Pair DA221 SOT416 (ROHM) DA221 SOT416 Y
D102 EDSY0011701 EJE1001740 DIODE Pair DAN222 SOT416 DAN222 SOT416 Y
D601, D602 EDVY0001601 EJE10018I0 Variable Capacitance Diode for VCO HVC369B Y
D301, D302, D303, D304, EDLH0006701 EL500236K0 LED 0603 LTST-C190FKT GREEN LTST-C190FKT GREEN Y
D304, D307, D308
D309, D310, D311, D312 EDLH0006703 EL500257K0 LED LTST-S220KGKT Green (LITEO LTST-S220KGKT Green Y
Y201 EXXY0016101 EM432762T0 X'TAL 32.768KHZ MS1V-TK 20PPM 32.768KHZ MS1V-TK 20PPM 12.5PF SMD 2P Y
Y601 EXSC0005501 EMA0001410 VCO VON1885C28DKB (SAMSUNG) VON1885C28DKB Y
Y602 EXSK0003301 EN913003L0 VCTCXO 13MHz TOA1300VPM4DKG-SM 13MHz Y
R317, R318 - FM000330D0 CHIP RES 1/8W 5% 33ohm 2012 1/8W 5% 33ohm N
R309 - FM00039010 CHIP RES 1/8W 5% 39ohm 2012 Y 1/8W 5% 39ohm N
R605 - FM01022210 CHIP RES 1/10W 5% 2.2K 1608 YA 1/10W 5% 2.2K N
R314, R637 - FM21010110 CHIP RES 1/16W 5% 100ohm 1005 1/16W 5% 100ohm N
R640 - FM21010210 CHIP RES 1/16W 5% 1K 1005 1/16W 5% 1K N
R209, R211, R315 - FM210103D0 CHIP RES 1/16W 5% 10K 1005 1/16W 5% 10K N
R111 - FM210104D0 CHIP RES 1/16W 5% 100K 1005 1/16W 5% 100K N
R629 - FM210105D0 CHIP RES 1/16W 5% 1M 1005 ROHM 1/16W 5% 1M N
R305 - FM21012210 CHIP RES 1/16W 5% 1.2K 1005 1/16W 5% 1.2K N
R613, R602 - FM210122D0 CHIP RES 1/16W 5% 1.2K 1005 1/16W 5% 1.2K N
R208, R217 - FM210124D0 CHIP RES 1/16W 5% 120K 1005 1/16W 5% 120K N
R633, R631 - FM210150D0 CHIP RES 1/16W 5% 15ohm 1005 1/16W 5% 15ohm N
R614, R316 - FM210152D0 CHIP RES 1/16W 5% 1.5K 1005 1/16W 5% 1.5K N
R606 - FM210182D0 CHIP RES 1/16W 5% 1.8K 1005 1/16W 5% 1.8K N
R102, R204 - FM210203D0 CHIP RES 1/16W 5% 20K 1005 1/16W 5% 20K N
R601 - FM210221D0 CHIP RES 1/16W 5% 220ohm 1005 1/16W 5% 220ohm N
R112, R604 - FM210222D0 CHIP RES 1/16W 5% 2.2K 1005 1/16W 5% 2.2K N
R216 - FM21027110 CHIP RES 1/16W 5% 270ohm 1005 1/16W 5% 270ohm N
R634 - FM21027210 CHIP RES 1/16W 5% 2.7K 1005 1/16W 5% 2.7K N
R609, R610 - FM210330D0 CHIP RES 1/16W 5% 33ohm 1005 1/16W 5% 33ohm N
R301, R608 - FM210332D0 CHIP RES 1/16W 5% 3.3K 1005 1/16W 5% 3.3K N
R110, R319 - FM210470D0 CHIP RES 1/16W 5% 47ohm 1005 1/16W 5% 47ohm N
R306 - FM21047210 CHIP RES 1/16W 5% 4.7K 1005 1/16W 5% 4.7K N
R304 - FM21047310 CHIP RES 1/16W 5% 47K 1005 1/16W 5% 47K N
- 64 -
11. EXPLODED VIEW & REPLACEMENT PART LIST
ITEM Location No. LG Part No. GVC Part No. Description Specification Service Remark
R624, R625 - FM210473D0 CHIP RES 1/16W 5% 47K 1005 1/16W 5% 47K N
R108, R107 - FM210479D0 CHIP RES 1/16W 5% 4.7ohm 1005 1/16W 5% 4.7ohm N
R630 - FM210561D0 CHIP RES 1/16W 5% 560ohm 1005 1/16W 5% 560ohm N
R638 - FM210680D0 CHIP RES 1/16W 5% 68ohm 1005 1/16W 5% 68ohm N
R603 - FM210681D0 CHIP RES 1/16W 5% 680ohm 1005 1/16W 5% 680ohm N
R619 - FM21068210 CHIP RES 1/16W 5% 6.8K 1005 1/16W 5% 6.8K N
R616, R618 - FM210689D0 CHIP RES 1/16W 5% 6.8ohm 1005 1/16W 5% 6.8ohm N
R607 - FM21082010 CHIP RES 1/16W 5% 82ohm 1005 1/16W 5% 82ohm N
R627 - FN219761T0 CHIP RES 1/16W 1% 9.76K 1005 1/16W 1% 9.76K N
R101 - FN90022830 CHIP RES 1/4W 1% 0.22ohm 2012 1/4W 1% 0.22ohm N
R311, R312, R313 - FP911015D0 CHIP RES ARRAY 1/16W 5% 100ohm 1/16W 5% 100ohm N
R103, R307, R316 - FP911024D0 CHIP RES ARRAY 1/16W 5% 1K 1/16W 5% 1K N
R628, R210, R215 - FP911025D0 CHIP RES ARRAY 1/16W 5% 1K 1/16W 5% 1K N
R109 - FP911035D0 CHIP RES ARRAY 1/16W 5% 10K 1/16W 5% 10K N
R308, R206 - FP911044D0 CHIP RES ARRAY 1/16W 5% 1/16W 5% 100K N
R105, R104 - FP914705D0 CHIP RES ARRAY 1/16W 5% 47ohm 1/16W 5% 47ohm N
R617, R615 - FP916814D0 CHIP RES ARRAY 1/16W 5% 1/16W 5% 680ohm N
C610 - GH022252P0 CHIP FILM 2012 2200P/50V J 2200P/50V J N
C604 - GH047222P0 CHIP FILM 2012 4.7n/16V J 4.7n/16V J N
C612 - GH112322P0 CHIP FILM 3216 12n/16V J 5% 12n/16V J 5% N
C611 - GH115322P0 CHIP FILM 3216 15n/16V J 5% 15n/16V J 5% N
C603 - GH133322P0 CHIP FILM 3216 33n/16V J 33n/16V J N
C613 - GM01025270 CHIP MONO 2012 .001U/50V J 0.001U/50V J N
C208 - GM010513J0 CHIP MONO 2012 1U/10V KX MURAT 1U/10V N
C103, C319, C320, C321, - GM010523J0 CHIP MONO 2012 1U/16V K 1U/16V K N
C322, C323, C324, C325, -
C326, C327 -
C108, C224, C654 - GM02251H70 CHIP MONO 2012 2.2U/10V MX 2.2U/10V MX N
C106, C329 - GM04751870 CHIP MONO 2012 4.7U/10V ZY TAI 4.7U/10V ZY N
C631, C649, C650, C651 - GM04751K70 CHIP MONO 2012 4.7u/10V KR 4.7u/10V KR N
C101, C223, C225, C226, - GM11060K70 CHIP MONO 3216 10U/6.3V K/X5R 10U/6.3V K/X5R N
C227
C602 - GM41025270 CHIP MONO 1608 .001U/50V J TAI 0.001U/50V J N
C104 - GM41042370 CHIP MONO 1608 .1U/16V KX 0.1U/16V KX N
C656, C306, C307 - GM41050570 CHIP MONO 1608 1u/6.3V M 1u/6.3V M N
C207 - GM42241370 CHIP MONO 1608 0.22U/10V K/X7R 0.22U/10V K/X7R N
C643 - GM60105B70 CHIP MONO 1005 1P/50V CN 1P/50V CN N
C632 - GM60505B70 CHIP MONO 1005 5P/50V CN 5P/50V CN N
C615 - GM60792A70 CHIP MONO 1005 0.7P/16V BN 0.7P/16V BN N
C203, C204 - GM61005C70 CHIP MONO 1005 10P/50V DN 10P/50V DN N
C614 - GM61015270 CHIP MONO 1005 100P/50V JN 100P/50V JN N
C212, C619, C620, C645, - GM61025370 CHIP MONO 1005 .001U/50V KX 0.001U/50V KX N
C652, C653 -
C648, C109 - GM61032370 CHIP MONO 1005 0.01U/16V KX 0.01U/16V KX N
C107, C206, C213, C214, - GM61041370 CHIP MONO 1005 .1u/10v K X5R 0.1u/10v K X5R N
C215, C216, C217, C218, -
C219, C220, C221, C222, -
C304, C305, C608, C639, -
C315, C316, C618, C640, -
C664, C662 -
C626, C627, C629, C634 - GM61205270 CHIP MONO 1005 12P/50V JN 12P/50V JN N
C665 - GM61215270 CHIP MONO 1005 120P/50V JN 120P/50V JN N
C616 - GM61595B70 CHIP MONO 1005 1.5P/50V CN 1.5P/50V CN N
- 65 -
11. EXPLODED VIEW & REPLACEMENT PART LIST
ITEM Location No. LG Part No. GVC Part No. Description Specification Service Remark
C205 - GM61805270 CHIP MONO 1005 18P/50V JN 18P/50V JN N
C105, C636 - GM62205270 CHIP MONO 1005 22P/50V JN 22P/50V JN N
C102 - GM62232370 CHIP MONO 1005 0.022U/16V KX 0.022U/16V KX N
C617, C646, C605, C621, - GM62705270 CHIP MONO 1005 27P/50V JN 27P/50V JN N
C668
C622, C623 - GM62795B70 CHIP MONO 1005 2.7P/50V CN 2.7P/50V CN N
C657, C658 - GM63302270 CHIP MONO 1005 33P/50V JN 33P/50V JN N
C211 - GM63331370 CHIP MONO 1005 33n/10V K/X7R 33n/10V K/X7R N
C607 - GM63395270 CHIP MONO 1005 3.3P/50V JN 3.3P/50V JN N
C308 - GM63925370 CHIP MONO 1005 0.0039U/50V KX 0.0039U/50V KX N
C606 - GM63995BJ0 CHIP MONO 1005 3.9P/50V CN MUR 3.9P/50V CN N
C110, C111, C112, C228, - GM64705270 CHIP MONO 1005 47P/50V JN 47P/50V JN N
C231, C301, C309, C310,
C311, C312, C313, C330,
C331, C332, C333, C334,
C336, C337, C338, C628,
C633 - GM64705270 CHIP MONO 1005 47P/50V JN 47P/50V JN N
C209, C210 - GM64715370 CHIP MONO 1005 470P/50V KX 470P/50V KX N
C601, C644 - GM656952J0 CHIP MONO 1005 5.6P/50V JN 5.6P/50V JN N
C609 - GM66805270 CHIP MONO 1005 68P/50V JN 68P/50V JN N
C663, C314 - GM66815370 CHIP MONO 1005 680P/50V KX 680P/50V KX N
C660 - GM66895270 CHIP MONO 1005 6.8P/50V JN 6.8P/50V JN N
L608, L614 - HB11001040 CHIP INDUCTOR 1005 6.8nH 300mA 6.8nH 300mA10% N
L606, L607 - HB11028940 CHIP INDUCTOR 1005 10nH 250mA 10nH 250mA 10% N
L612 - HB11029140 CHIP INDUCTOR 1005 22nH 250mA 22nH 250mA 10% N
L604, L605 - HB11030440 CHIP INDUCTOR 1005 1.8nH 300mA 1.8nH 300mA 0.3nH N
L603, L602 - HB11031340 CHIP INDUCTOR 1005 120nH 250mA 120nH 250mA10% N
L613 - HB11033040 CHIP INDUCTOR 1005 100nH 100mA 100nH 100mA+/-5% N
L601 - HB110331U0 CHIP INDUCTOR 1005 2.7nH 0.1 2.7nH 0.1nH 220mA N
L609 - HB110335U0 CHIP INDUCTOR SMD 1608 15nH 15nH 2% 150mA N
D104 - HH000010X0 ESD Protection P0402FC08C P040 P0402FC08C P0402FC N
D101 - HH000011X0 ESD Protection TVS Diode P0402 P0402FC15C N
- MICROPHONE & RUBBER 6x2.2 OB-2 Please refer to the `Exploded View' Y M6
- Backup Battery 3V 1.8mAh VL621 Please refer to the `Exploded View' Y M7
DS301 SVLM0003501 JG100159W0 LCD MODULE G112064-22 FSTN 28P LCD Module Y
- KG10240000 BOARD A316 100.5mmx39mmx6 100.5mmx39mmx6Layer N
R3010195S0 I/O 3 in 1 MQ203-A-16R-PWJ HRS N
- ANTENNA EMBEDDED(IN BUILD) Please refer to the `Exploded View' Y M8
R401A011S0 METAL CAN RF A316 N
2 - R3870160R0 LCD Lens Please refer to the `Exploded View' Y M1
3 - R385003400 LCM Metal Sheet 39.4x36.3x0.2t(LCM cap) Please refer to the `Exploded View' Y M16
4 - R3920058G0 Keypad Rubber Metal Dome Please refer to the `Exploded View' Y M5
5 Upper Case
- Cobalt Blue Please refer to the `Exploded View' Y
- Titanium Please refer to the `Exploded View' Y M2
- Bordeaux Please refer to the `Exploded View' Y
6 Lower Case
- Cobalt Blue Please refer to the `Exploded View' Y
- Titanium Please refer to the `Exploded View' Y M12
- Bordeaux Please refer to the `Exploded View' Y
7 Battery Cover
- Cobalt Blue Please refer to the `Exploded View' Y
- Titanium Please refer to the `Exploded View' Y M15
- Bordeaux Please refer to the `Exploded View' Y
- 66 -
11. EXPLODED VIEW & REPLACEMENT PART LIST
ITEM Location No. LG Part No. GVC Part No. Description Specification Service Remark
8 MCCF0005701 R3814025G0 Rubber Cap for Antenna Rubber Cap for Antenna Y
10 - R400001580 Vibrator Please refer to the `Exploded View' Y M10
11 R3010204M0 SIM Connector N
12 LS301 - HJ00118040 Speaker/Receiver/Buzzer 6x2.2OB-2 Please refer to the `Exploded View' Y M3
13 J103 - R3010216M0 Battery Connector Please refer to the `Exploded View' Y M11
R301016960 RF Mechanical Connector N
14
Screws - R3220063U0 M1.6x4L Please refer to the `Exploded View' N M13
15 Sponge
R3830030S0 Microphone Holder N
- R3630096G0 Sponge for LCM Please refer to the `Exploded View' N M4
R3830031S0 Backup Battery Holder N
1
Battery Pack - JB040094A0 600mAh Li-Ion Please refer to the `Exploded View' Y M14
- 67 -
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
