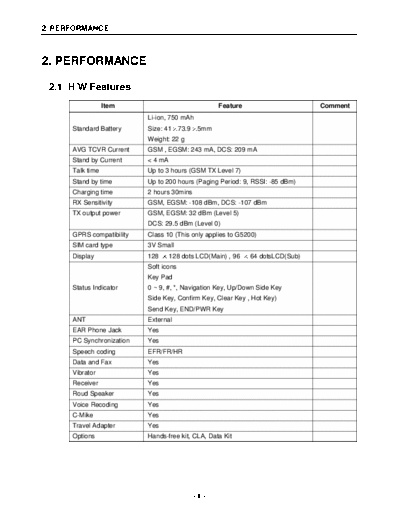

LG G5200 10


>> Download LG G5200 10 documenatation <<

Text preview - extract from the document
2. PERFORMANCE



2. PERFORMANCE

 2.1 H/W Features
                  Item                              Feature                     Comment
                           Li-ion, 750 mAh
      Standard Battery     Size: 41 73.9 5mm
                           Weight: 22 g
      AVG TCVR Current     GSM , EGSM: 243 mA, DCS: 209 mA
      Stand by Current     < 4 mA
      Talk time            Up to 3 hours (GSM TX Level 7)
      Stand by time        Up to 200 hours (Paging Period: 9, RSSI: -85 dBm)
      Charging time        2 hours 30mins
      RX Sensitivity       GSM, EGSM: -108 dBm, DCS: -107 dBm
      TX output power      GSM, EGSM: 32 dBm (Level 5)
                           DCS: 29.5 dBm (Level 0)
      GPRS compatibility   Class 10 (This only applies to G5200)
      SIM card type        3V Small
      Display              128      128 dots LCD(Main) , 96   64 dotsLCD(Sub)
                           Soft icons
                           Key Pad
      Status Indicator     0 ~ 9, #, *, Navigation Key, Up/Down Side Key
                           Side Key, Confirm Key, Clear Key , Hot Key)
                           Send Key, END/PWR Key
      ANT                  External
      EAR Phone Jack       Yes
      PC Synchronization   Yes
      Speech coding        EFR/FR/HR
      Data and Fax         Yes
      Vibrator             Yes
      Receiver             Yes
      Roud Speaker         Yes
      Voice Recoding       Yes
      C-Mike               Yes
      Travel Adapter       Yes
      Options              Hands-free kit, CLA, Data Kit




                                            -8-
                                                                    2. PERFORMANCE



2.2 Technical Specification
     Item            Description                       Specification
                                     GSM
                                      TX: 890 + n      0.2 MHz
                                         RX: 935 + n   0.2 MHz (n = 1 ~ 124)
                                     EGSM
      1     Frequency Band            TX: 890 + (n
