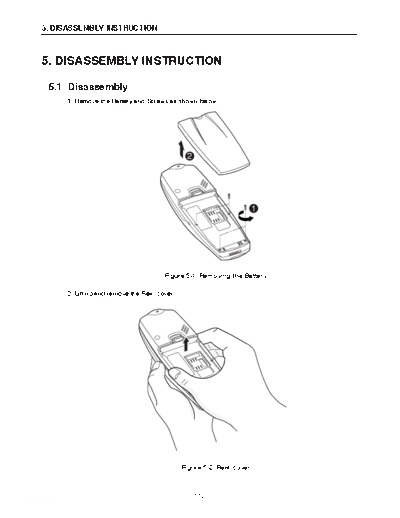

Image preview - the first page of the document
>> Download LG G5300 3 documenatation <<
Text preview - extract from the document
5. DISASSEMBLY INSTRUCTION
5. DISASSEMBLY INSTRUCTION
5.1 Disassembly
1. Remove the Battery and Screws as shown below.
2
1
Figure 5-1. Removing the Battery.
2. Lift up and remove the Rear cover.
Figure 5-2. Rear cover.
- 102 -
5. DISASSEMBLY INSTRUCTION
3. Detach the rest components as shown below.
Figure 5-3. Detaching the rest components.
- 103 -
5. DISASSEMBLY INSTRUCTION
4. First, lift up PCB and remove the Antenna holding the hooks of the both end sides. After that,
detach the Receiver and Keypad.
Figure 5-4. Removing PCB, Antenna, Receiver and Keypad.
5. Use a tweezers to remove the Battery locker and Spring.
1
1
2
3
Figure 5-5. Removing the Battery locker.
- 104 -
