13. EXPLODED VIEW & REPLACEMENT PART LIST
13. EXPLODED VIEW & REPLACEMENT PART LIST

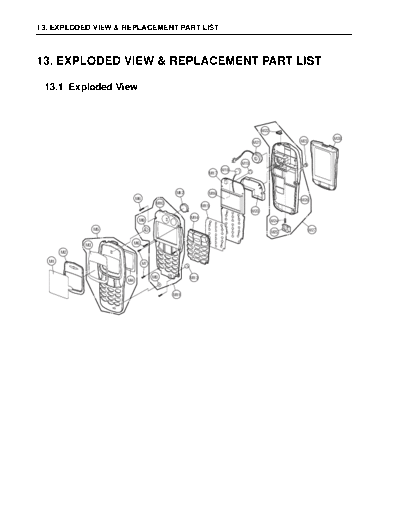

13.1 Exploded View
M22
M28
M21 M23
M19
M18
M17
M12 M16
M6 M26
M10
M15
M20
M14
M8 M24
M5 M27
M25
M3 M6
M2
M1
M7
M9 M13
M4
M11
13. EXPLODED VIEW & REPLACEMENT PART LIST
< Parts List of Exploded View >
No. Location No. Description Part No. QTY Specification Color SVC
M1 MTAB00 TAPE,PROTECTION MTAB0009401 1 Y
M2 MWAC00 WINDOW,LCD MWAC0020801 1 Y
M3 MTAD00 TAPE,WINDOW MTAD0008701 1 Y
M4 MPBG00 PAD,LCD MPBG0007601 1 Y
M5 ACGK00 COVER ASSY,FRONT ACGK0017501 1 WHITE Y
ACGK00 COVER ASSY,FRONT ACGK0017502 1 BLUE Y
ACGK00 COVER ASSY,FRONT ACGK0017503 1 RED Y
M6 GTZZ00 SCREW TAP TITE GTZZ0000603 2 M1.7x6.0,MSWR3(FN) ,N ,ETC - Y
M7 GTZZ01 SCREW TAP TITE GTZZ0000604 4 M1.7x4.0,MSWR3(FN) ,N ,ETC- Y
M8 MPBM00 PAD,RECEIVER MPBM0001901 1 Y
M9 MPBH00 PAD,MIKE MPBH0002201 1 Y
M10 MCJL00 COVER,GUIDE MCJL0000701 1 Y
M11 ACGL00 COVER ASSY,GUIDE ACGL0000101 1 Y
M12 SURY00 RECEIVER SURY0005601 1 ASSY ,113 dB,32 ohm,13*4.7 ,Receiver Y
M13 SUMY00 MICROPHONE SUMY0004601 1 ASSY ,-40 dB,6*1.5 ,W3000 MIC Y
M14 ABGA00 BUTTON ASSY,DIAL ABGA0000601 1 Y
M15 ADCA00 DOME ASSY,METAL ADCA0007801 1 Y
M16 SVLM00 LCD MODULE SVLM0003801 1 128*64 ,34.8*30.55*4.4(t) ,D/IC: Y
S6B0723TB-01(SSE),LED B/L(BLUE)
M17 SAFY00 PCB ASSY,MAIN SAFY0058601 1 W3000,WAP Y
M18 SJMY00 VIBRATOR,MOTOR SJMY0003602 1 3 V,0.08 A,10*3.4 ,W3000 VIBRATOR Y
M19 SBCL00 BATTERY,CELL,LITHIUM SBCL0000901 1 2.00 V,4.0 mAh,COIN ,BACKUP BATTERY Y
M20 SNGF00 ANTENNA,GSM,FIXED SNGF0001201 1 3.0 ,-2.0 dBd,BLACK , Y
M21 SUSY00 SPEAKER SUSY0007601 1 ASSY ,8 ohm,88 dB,16 mm,4T SPEAKER Y
M22 MCCC00 CAP,EARPHONE JACK MCCC0005801 1 Y
M23 MCCF00 CAP,MOBILE SWITCH MCCF0006501 1 Y
M24 MSDB00 SPRING,COIL MSDB0001701 1 G7000 Y
M25 MLEA00 LOCKER,BATTERY MLEA0006401 1 Y
M26 MCJN00 COVER,REAR MCJN0008401 1 Y
M27 ACGM00 COVER ASSY,REAR ACGM0014701 1 Y
M28 SBPL00 BATTERY PACK,LI-ION SBPL0065801 1 3.75 V,870 mAh,1 CELL,PRISMATIC , Y
W3000 STD BATTERY(SV)
13. EXPLODED VIEW & REPLACEMENT PART LIST
13.2 Accessories
DATA CABLE EAR PHONE/EAR MIKE SET
HANDSTRAP ADAPTOR,AC-DC
Level Location No. Description Part No. QTY Specification Color SVC
2 MHBY00 HANDSTRAP MHBY0001101 1 Neck Strap 400mm (CDMA,common use) Y
2 SGDY00 DATA CABLE SGDY0003003 1 LG-510W/G510 ,CABLE W/O POWER BULK Y
2 SGEY00 EAR PHONE/EAR MIKE SET SGEY0002901 1 G7000,G5200 Common use, 3P EAR MIC Y
2 SSAD00 ADAPTOR,AC-DC SSAD0007803 1 100-240V ,50 Hz,5.2 V,850 mA,GOST , Y
