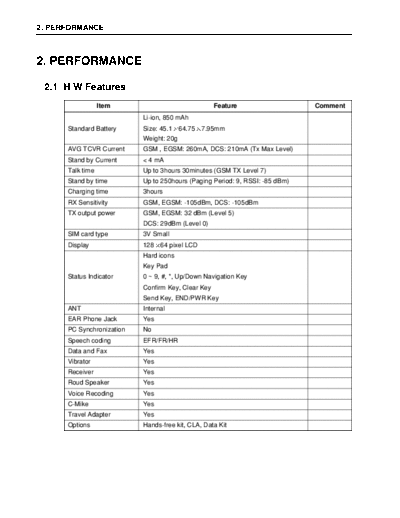

Image preview - the first page of the document
>> Download LG W3000 7 documenatation <<
Text preview - extract from the document
2. PERFORMANCE
2. PERFORMANCE
2.1 H/W Features
Item Feature Comment
Li-ion, 850 mAh
Standard Battery Size: 45.1 64.75 7.95mm
Weight: 20g
AVG TCVR Current GSM , EGSM: 260mA, DCS: 210mA (Tx Max Level)
Stand by Current < 4 mA
Talk time Up to 3hours 30minutes (GSM TX Level 7)
Stand by time Up to 250hours (Paging Period: 9, RSSI: -85 dBm)
Charging time 3hours
RX Sensitivity GSM, EGSM: -105dBm, DCS: -105dBm
TX output power GSM, EGSM: 32 dBm (Level 5)
DCS: 29dBm (Level 0)
SIM card type 3V Small
Display 128 64 pixel LCD
Hard icons
Key Pad
Status Indicator 0 ~ 9, #, *, Up/Down Navigation Key
Confirm Key, Clear Key
Send Key, END/PWR Key
ANT Internal
EAR Phone Jack Yes
PC Synchronization No
Speech coding EFR/FR/HR
Data and Fax Yes
Vibrator Yes
Receiver Yes
Roud Speaker Yes
Voice Recoding Yes
C-Mike Yes
Travel Adapter Yes
Options Hands-free kit, CLA, Data Kit
2. PERFORMANCE
2.2 Technical Specification
Item Description Specification
GSM
TX: 890 + n 0.2 MHz
RX: 935 + n 0.2 MHz (n = 1 ~ 124)
EGSM
