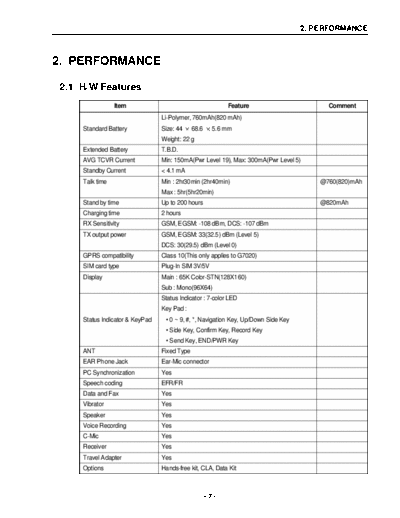

Image preview - the first page of the document
>> Download LG W720 5 documenatation <<Text preview - extract from the document 2. PERFORMANCE
2. PERFORMANCE
2.1 H/W Features
Item Feature Comment
Li-Polymer, 760mAh(820 mAh)
Standard Battery Size: 44 68.6 5.6 mm
Weight: 22 g
Extended Battery T.B.D.
AVG TCVR Current Min: 150mA(Pwr Level 19), Max: 300mA(Pwr Level 5)
Standby Current < 4.1 mA
Talk time Min : 2hr30min (2hr40min) @760(820)mAh
Max : 5hr(5hr20min)
Stand by time Up to 200 hours @820mAh
Charging time 2 hours
RX Sensitivity GSM, EGSM: -108 dBm, DCS: -107 dBm
TX output power GSM, EGSM: 33(32.5) dBm (Level 5)
DCS: 30(29.5) dBm (Level 0)
GPRS compatibility Class 10(This only applies to G7020)
SIM card type Plug-In SIM 3V/5V
Display Main : 65K Color-STN(128X160)
Sub : Mono(96X64)
Status Indicator : 7-color LED
Key Pad :
Status Indicator & KeyPad
