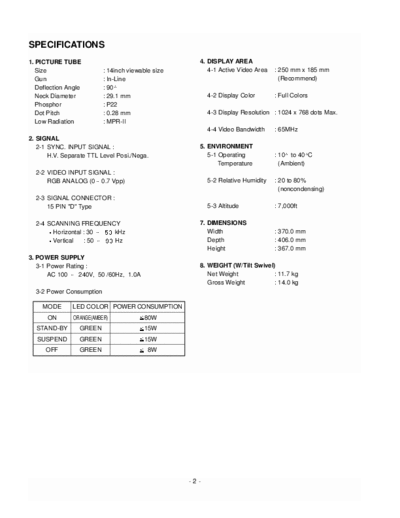

Image preview - the first page of the document



>> Download CH480_1 documenatation <<

Text preview - extract from the document

SPECIFICATIONS
1. PICTURE TUBE                                       4. DISPLAY AREA
   Size                    : 14inch viewable size        4-1 Active Video Area    : 250 mm x 185 mm
   Gun                     : In-Line                                                (Recommend)
   Deflection Angle        : 90
   Neck Diameter           : 29.1 mm                      4-2 Display Color       : Full Colors
   Phosphor                : P22
   Dot Pitch               : 0.28 mm                      4-3 Display Resolution : 1024 x 768 dots Max.
   Low Radiation           : MPR-II
                                                          4-4 Video Bandwidth     : 65MHz
2. SIGNAL
   2-1 SYNC. INPUT SIGNAL :                           5. ENVIRONMENT
       H.V. Separate TTL Level Posi./Nega.               5-1 Operating            : 10 to 40 C
                                                             Temperature            (Ambient)
  2-2 VIDEO INPUT SIGNAL :
      RGB ANALOG (0 0.7 Vpp)                              5-2 Relative Humidity   : 20 to 80%
                                                                                    (noncondensing)
  2-3 SIGNAL CONNECTOR :
      15 PIN "D" Type                                     5-3 Altitude            : 7,000ft

  2-4 SCANNING FREQUENCY                              7. DIMENSIONS
       Horizontal : 30 kHz                               Width                    : 370.0 mm
       Vertical   : 50 Hz                                Depth                    : 406.0 mm
                                                         Height                   : 367.0 mm
3. POWER SUPPLY
   3-1 Power Rating :                                 8. WEIGHT (W/Tilt Swivel)
       AC 100     240V, 50 /60Hz, 1.0A                   Net Weight            : 11.7 kg
                                                         Gross Weight          : 14.0 kg
  3-2 Power Consumption

     MODE      LED COLOR POWER CONSUMPTION
      ON        ORANGE(AMBER)             80W
  STAND-BY        GREEN                   15W
   SUSPEND        GREEN                   15W
      OFF         GREEN                    8W




                                                    -2-
