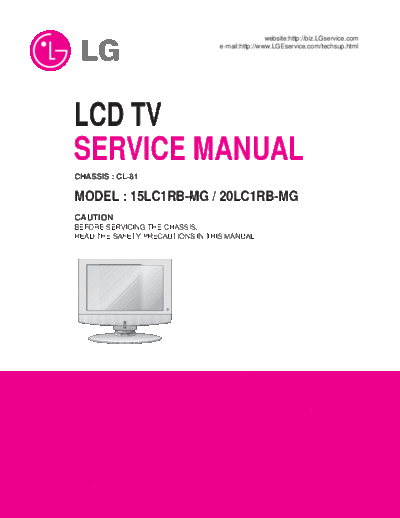

LG_15LC1R_20LC1RB-MG_[SM]


>> Download LG_15LC1R_20LC1RB-MG_[SM] documenatation <<

Text preview - extract from the document
                                                  website:http://biz.LGservice.com
                                  e-mail:http://www.LGEservice.com/techsup.html




LCD TV
SERVICE MANUAL
CHASSIS : CL-81

MODEL : 15LC1RB-MG / 20LC1RB-MG
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
                                          CONTENTS




CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

DISASSEMBLY ..........................................................................................6

SPECIFICATION ........................................................................................7

ADJUSTMENT INSTRUCTION ...............................................................10

SVC REMOCON ......................................................................................13

TROUBLE SHOOTING ............................................................................14

BLOCK DIAGRAM...................................................................................18

WIRING DIAGRAM ..................................................................................20

EXPLODED VIEW .................................................................................. 21

REPLACEMENT PARTS LIST ............................................................... 23

SVC. SHEET ...............................................................................................




                                                   -2-
                                            SAFETY PRECAUTIONS

                                              IMPORTANT SAFETY NOTICE
 Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
 Schematic Diagram and Replacement Parts List.
 It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
 Shock, Fire, or other Hazards.
 Do not modify the original design without permission of manufacturer.


General Guidance                                                       Leakage Current Hot Check (See below Figure)
                                                                       Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the              Do not use a line Isolation Transformer during this check.
servicing of a receiver whose chassis is not isolated from the AC      Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
power line. Use a transformer of adequate power rating as this         between a known good earth ground (Water Pipe, Conduit, etc.)
protects the technician from accidents resulting in personal injury    and the exposed metallic parts.
from electrical shocks.                                                Measure the AC voltage across the resistor using AC voltmeter
                                                                       with 1000 ohms/volt or more sensitivity.
It will also protect the receiver and it's components from being       Reverse plug the AC cord into the AC outlet and repeat AC voltage
damaged by accidental shorts of the circuitry that may be              measurements for each exposed metallic part. Any voltage
inadvertently introduced during the service operation.                 measured must not exceed 0.75 volt RMS which is corresponds to
                                                                       0.5mA.
If any fuse (or Fusible Resistor) in this TV receiver is blown,        In case any measurement is out of the limits specified, there is
replace it with the specified.                                         possibility of shock hazard and the set must be checked and
                                                                       repaired before it is returned to the customer.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.                        Leakage Current Hot Check circuit

Keep wires away from high voltage or high temperature parts.                                AC Volt-meter

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to                                           Good Earth Ground
                                                                                                               such as WATER PIPE,
be sure the set is safe to operate without damage of electrical                                                CONDUIT etc.
shock.                                                                 To Instrument's           0.15uF
                                                                       exposed
                                                                       METALLIC PARTS
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC                                 1.5 Kohm/10W
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1M and 5.2M.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.




                                                                   -3-
                                          SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service                  prevent potential shock reasons prior to applying power to the
manual and its supplements and addenda, read and follow the                  unit under test.
SAFETY PRECAUTIONS on page 3 of this publication.                       2.   After removing an electrical assembly equipped with ES
NOTE: If unforeseen circumstances create conflict between the                devices, place the assembly on a conductive surface such as
following servicing precautions and any of the safety precautions on         aluminum foil, to prevent electrostatic charge buildup or
page 3 of this publication, always follow the safety precautions.            exposure of the assembly.
Remember: Safety First.                                                 3.   Use only a grounded-tip soldering iron to solder or unsolder ES
                                                                             devices.
General Servicing Precautions                                           4.   Use only an anti-static type solder removal device. Some solder
1. Always unplug the receiver AC power cord from the AC power                removal devices not classified as "anti-static" can generate
   source before;                                                            electrical charges sufficient to damage ES devices.
   a. Removing or reinstalling any component, circuit board             5.   Do not use freon-propelled chemicals. These can generate
      module or any other receiver assembly.                                 electrical charges sufficient to damage ES devices.
   b. Disconnecting or reconnecting any receiver electrical plug or     6.   Do not remove a replacement ES device from its protective
      other electrical connection.                                           package until immediately before you are ready to install it.
   c. Connecting a test substitute in parallel with an electrolytic          (Most replacement ES devices are packaged with leads
      capacitor in the receiver.                                             electrically shorted together by conductive foam, aluminum foil
      CAUTION: A wrong part substitution or incorrect polarity               or comparable conductive material).
      installation of electrolytic capacitors may result in an          7.   Immediately before removing the protective material from the
      explosion hazard.                                                      leads of a replacement ES device, touch the protective material
                                                                             to the chassis or circuit assembly into which the device will be
2. Test high voltage only by measuring it with an appropriate high           installed.
   voltage meter or other voltage measuring device (DVM,                     CAUTION: Be sure no power is applied to the chassis or circuit,
   FETVOM, etc) equipped with a suitable high voltage probe.                 and observe all other safety precautions.
   Do not test high voltage by "drawing an arc".                        8.   Minimize bodily motions when handling unpackaged
3. Do not spray chemicals on or near this receiver or any of its             replacement ES devices. (Otherwise harmless motion such as
   assemblies.                                                               the brushing together of your clothes fabric or the lifting of your
4. Unless specified otherwise in this service manual, clean                  foot from a carpeted floor can generate static electricity
   electrical contacts only by applying the following mixture to the         sufficient to damage an ES device.)
   contacts with a pipe cleaner, cotton-tipped stick or comparable
   non-abrasive applicator; 10% (by volume) Acetone and 90% (by         General Soldering Guidelines
   volume) isopropyl alcohol (90%-99% strength)                         1. Use a grounded-tip, low-wattage soldering iron and appropriate
   CAUTION: This is a flammable mixture.                                   tip size and shape that will maintain tip temperature within the
   Unless specified otherwise in this service manual, lubrication of       range or 500oF to 600oF.
   contacts in not required.                                            2. Use an appropriate gauge of RMA resin-core solder composed
5. Do not defeat any plug/socket B+ voltage interlocks with which          of 60 parts tin/40 parts lead.
   receivers covered by this service manual might be equipped.          3. Keep the soldering iron tip clean and well tinned.
6. Do not apply AC power to this instrument and/or any of its           4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
   electrical assemblies unless all solid-state device heat sinks are      bristle (0.5 inch, or 1.25cm) brush with a metal handle.
   correctly installed.                                                    Do not use freon-propelled spray-on cleaners.
7. Always connect the test receiver ground lead to the receiver         5. Use the following unsoldering technique
   chassis ground before connecting the test receiver positive             a. Allow the soldering iron tip to reach normal temperature.
   lead.                                                                       (500oF to 600oF)
   Always remove the test receiver ground lead last.                       b. Heat the component lead until the solder melts.
8. Use with this receiver only the test fixtures specified in this         c. Quickly draw the melted solder with an anti-static, suction-
   service manual.                                                             type solder removal device or with solder braid.
   CAUTION: Do not connect the test fixture ground strap to any                CAUTION: Work quickly to avoid overheating the
   heat sink in this receiver.                                                 circuitboard printed foil.
                                                                        6. Use the following soldering technique.
Electrostatically Sensitive (ES) Devices                                   a. Allow the soldering iron tip to reach a normal temperature
Some semiconductor (solid-state) devices can be damaged easily                 (500oF to 600oF)
by static electricity. Such components commonly are called                 b. First, hold the soldering iron tip and solder the strand against
Electrostatically Sensitive (ES) Devices. Examples of typical ES               the component lead until the solder melts.
devices are integrated circuits and some field-effect transistors and      c. Quickly move the soldering iron tip to the junction of the
semiconductor "chip" components. The following techniques                      component lead and the printed circuit foil, and hold it there
should be used to help reduce the incidence of component                       only until the solder flows onto and around both the
damage caused by static by static electricity.                                 component lead and the foil.
1. Immediately before handling any semiconductor component or                  CAUTION: Work quickly to avoid overheating the circuit
   semiconductor-equipped assembly, drain off any electrostatic                board printed foil.
   charge on your body by touching a known earth ground.                   d. Closely inspect the solder area and remove any excess or
   Alternatively, obtain and wear a commercially available                     splashed solder with a small wire-bristle brush.
   discharging wrist strap device, which should be removed to

                                                                    -4-
IC Remove/Replacement                                                    3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through             CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the              component and adjacent components and the circuit board to
circuit foil. When holes are the slotted type, the following technique      prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique         Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above.                                 Excessive heat applied to the copper foil of any printed circuit
                                                                         board will weaken the adhesive that bonds the foil to the circuit
Removal                                                                  board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by gently       following guidelines and procedures should be followed whenever
   prying up on the lead with the soldering iron tip as the solder       this condition is encountered.
   melts.
2. Draw away the melted solder with an anti-static suction-type          At IC Connections
   solder removal device (or with solder braid) before removing the      To repair a defective copper pattern at IC connections use the
   IC.                                                                   following procedure to install a jumper wire on the copper pattern
Replacement                                                              side of the circuit board. (Use this technique only on IC
1. Carefully insert the replacement IC in the circuit board.             connections).
2. Carefully bend each IC lead against the circuit foil pad and
   solder it.                                                            1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush.                knife. (Remove only as much copper as absolutely necessary).
   (It is not necessary to reapply acrylic coating to the areas).        2. carefully scratch away the solder resist and acrylic coating (if
                                                                            used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor                                       3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement                                                         carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close as     4. Route the jumper wire along the path of the out-away copper
   possible to the component body.                                          pattern and let it overlap the previously scraped end of the good
2. Bend into a "U" shape the end of each of three leads remaining           copper pattern. Solder the overlapped area and clip off any
   on the circuit board.                                                    excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding         At Other Connections
   leads extending from the circuit board and crimp the "U" with         Use the following technique to repair the defective copper pattern
   long nose pliers to insure metal to metal contact then solder         at connections other than IC Pins. This technique involves the
   each connection.                                                      installation of a jumper wire on the component side of the circuit
                                                                         board.
Power Output, Transistor Device
Removal/Replacement                                                      1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads.             Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped).                    condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit     2. Trace along the copper pattern from both sides of the pattern
   board.                                                                   break and locate the nearest component that is directly
4. Insert new transistor in the circuit board.                              connected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead.                3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink.                                                       nearest component on one side of the pattern break to the lead
                                                                            of the nearest component on the other side.
Diode Removal/Replacement                                                   Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as                 CAUTION: Be sure the insulated jumper wire is dressed so the
   possible to diode body.                                                  it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
   board.
3. Observing diode polarity, wrap each lead of the new diode
   around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
   the two "original" leads. If they are not shiny, reheat them and if
   necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
   stake.
2. Securely crimp the leads of replacement component around
   notch at stake top.


                                                                     -5-
                                         DISASSEMBLY




#1                                                 #2 Detached stand assy (Remove the screws)




#3 Disassembly stand assy                          #4 Detached Backcover (Remove the screw)




#5 Open the Backcover's latch with jig             #6 Unlock latch between Cabinet and Backcover



                                             -6-
                                                      SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.

1. Application range
This specification is applied to CL-81 chassis.

2. Requirement for Test
Testing for standard of each part must be followed in below
condition.

   (1) Temperature: 25



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
