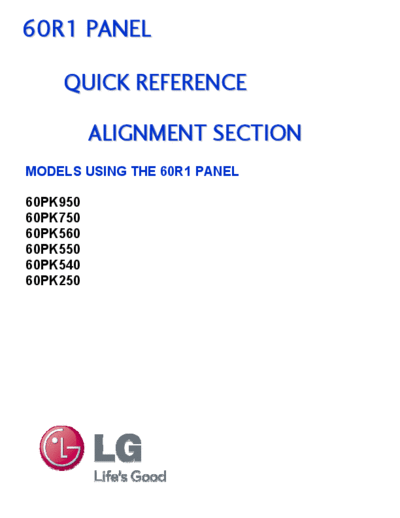

Image preview - the first page of the document
LG_60PK250_60PK540_60PK550_60PK560_60PK750_60PK950_60R1_Alignments_[SM]


>> Download LG_60PK250_60PK540_60PK550_60PK560_60PK750_60PK950_60R1_Alignments_[SM] documenatation <<

Text preview - extract from the document
60R1 PANEL

    QUICK REFERENCE

          ALIGNMENT SECTION
MODELS USING THE 60R1 PANEL

60PK950
60PK750
60PK560
60PK550
60PK540
60PK250
Intentionally left blank
             60R1 SMPS BOARD ADJUSTMENT POINTS
             Set should be in "White Wash"
             These two voltages are adjustable and
             should be adjusted to the correct values
             as indicated by your Panel's Voltage
             Label. Example shown on the right.
                                                                                 VA    VS
                                                                                VR551 VR901
             Always adjust "Highest to Lowest" voltages.
             VS and VA adjustment resistors are shown in
             the drawing below.
             They are located at the top Right of the board.

             1) VS ADJUST:
                Connect DVM to pin 1 or 2 of P811 or P812.
                Adjust VR901 until the voltage matches your panel's voltage label.

             2) VA ADJUST:
                Connect DVM to pin 6 or 7 of P811 or P812.
60R1 PANEL




                Adjust VR551 until the voltage matches your panel's voltage label.
60R1 Y-SUS BOARD ADJUSTMENT POINTS




                                     60R1 PANEL
             60R1 VSC, -Vy ADJUSTMENTS

             PREPARATION:

             1) Pre-Heat unit for at least 10 Minutes
                before making adjustments.
                Vs and Va adjustments complete.
                                                             -Vy     VSC
             2) Place unit into White Wash from the
                Customer's Menu for all adjustments.
             3) Be sure to use all adjustment values as
                indicated on your panel's voltage label in
                the upper left of the panel.
             PROCEDURE: (See figure below for locations)
              1) Adjust
