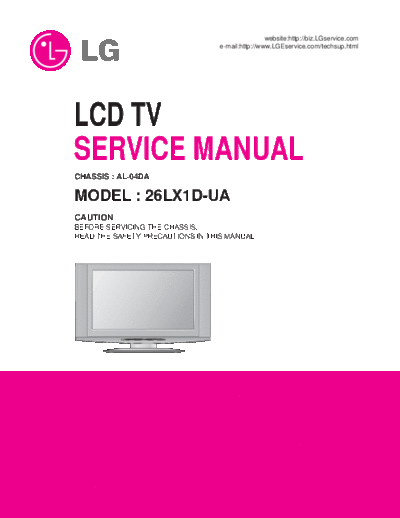

LG_AL04DA_26LX1DUA_[SM]


>> Download LG_AL04DA_26LX1DUA_[SM] documenatation <<

Text preview - extract from the document
                                                  website:http://biz.LGservice.com
                                  e-mail:http://www.LGEservice.com/techsup.html




LCD TV
SERVICE MANUAL
CHASSIS : AL-04DA

MODEL : 26LX1D-UA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
                                          CONTENTS




CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

SPECIFICATION ........................................................................................6

ADJUSTMENT INSTRUCTION ...............................................................10

SVC REMOCON ......................................................................................12

TROUBLE SHOOTING ............................................................................13

BLOCK DIAGRAM...................................................................................16

WIRING DIAGRAM ..................................................................................18

EXPLODED VIEW .................................................................................. 19

EXPLODED VIEW PARTS LIST ..............................................................20

REPLACEMENT PARTS LIST ............................................................... 21

SVC. SHEET ...............................................................................................




                                                   -2-
                                            SAFETY PRECAUTIONS

                                              IMPORTANT SAFETY NOTICE
 Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
 Schematic Diagram and Replacement Parts List.
 It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
 X-RADIATION, Shock, Fire, or other Hazards.
 Do not modify the original design without permission of manufacturer.


General Guidance                                                       Leakage Current Hot Check (See below Figure)
                                                                       Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the              Do not use a line Isolation Transformer during this check.
servicing of a receiver whose chassis is not isolated from the AC      Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
power line. Use a transformer of adequate power rating as this         between a known good earth ground (Water Pipe, Conduit, etc.)
protects the technician from accidents resulting in personal injury    and the exposed metallic parts.
from electrical shocks.                                                Measure the AC voltage across the resistor using AC voltmeter
                                                                       with 1000 ohms/volt or more sensitivity.
It will also protect the receiver and it's components from being       Reverse plug the AC cord into the AC outlet and repeat AC voltage
damaged by accidental shorts of the circuitry that may be              measurements for each exposed metallic part. Any voltage
inadvertently introduced during the service operation.                 measured must not exceed 0.75 volt RMS which is corresponds to
                                                                       0.5mA.
If any fuse (or Fusible Resistor) in this TV receiver is blown,        In case any measurement is out of the limits specified, there is
replace it with the specified.                                         possibility of shock hazard and the set must be checked and
                                                                       repaired before it is returned to the customer.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.                        Leakage Current Hot Check circuit

Keep wires away from high voltage or high temperature parts.                                AC Volt-meter

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
                                                                                                               Good Earth Ground
metallic parts of the cabinet, such as antennas, terminals, etc., to                                           such as WATER PIPE,
be sure the set is safe to operate without damage of electrical                                                CONDUIT etc.
                                                                       To Instrument's           0.15uF
shock.                                                                 exposed
                                                                       METALLIC PARTS
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC                                 1.5 Kohm/10W
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1M and 5.2M.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.




                                                                   -3-
                                          SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service                unit under test.
manual and its supplements and addenda, read and follow the             2. After removing an electrical assembly equipped with ES
SAFETY PRECAUTIONS on page 3 of this publication.                          devices, place the assembly on a conductive surface such as
NOTE: If unforeseen circumstances create conflict between the              aluminum foil, to prevent electrostatic charge buildup or
following servicing precautions and any of the safety precautions on       exposure of the assembly.
page 3 of this publication, always follow the safety precautions.       3. Use only a grounded-tip soldering iron to solder or unsolder ES
Remember: Safety First.                                                    devices.
                                                                        4. Use only an anti-static type solder removal device. Some solder
General Servicing Precautions                                              removal devices not classified as "anti-static" can generate
1. Always unplug the receiver AC power cord from the AC power              electrical charges sufficient to damage ES devices.
   source before;                                                       5. Do not use freon-propelled chemicals. These can generate
   a. Removing or reinstalling any component, circuit board                electrical charges sufficient to damage ES devices.
      module or any other receiver assembly.                            6. Do not remove a replacement ES device from its protective
   b. Disconnecting or reconnecting any receiver electrical plug or        package until immediately before you are ready to install it.
      other electrical connection.                                         (Most replacement ES devices are packaged with leads
   c. Connecting a test substitute in parallel with an electrolytic        electrically shorted together by conductive foam, aluminum foil
      capacitor in the receiver.                                           or comparable conductive material).
      CAUTION: A wrong part substitution or incorrect polarity          7. Immediately before removing the protective material from the
      installation of electrolytic capacitors may result in an             leads of a replacement ES device, touch the protective material
      explosion hazard.                                                    to the chassis or circuit assembly into which the device will be
                                                                           installed.
2. Test high voltage only by measuring it with an appropriate high         CAUTION: Be sure no power is applied to the chassis or circuit,
   voltage meter or other voltage measuring device (DVM,                   and observe all other safety precautions.
   FETVOM, etc) equipped with a suitable high voltage probe.            8. Minimize bodily motions when handling unpackaged
   Do not test high voltage by "drawing an arc".                           replacement ES devices. (Otherwise harmless motion such as
3. Do not spray chemicals on or near this receiver or any of its           the brushing together of your clothes fabric or the lifting of your
   assemblies.                                                             foot from a carpeted floor can generate static electricity
4. Unless specified otherwise in this service manual, clean                sufficient to damage an ES device.)
   electrical contacts only by applying the following mixture to the
   contacts with a pipe cleaner, cotton-tipped stick or comparable      General Soldering Guidelines
   non-abrasive applicator; 10% (by volume) Acetone and 90% (by         1. Use a grounded-tip, low-wattage soldering iron and appropriate
   volume) isopropyl alcohol (90%-99% strength)                            tip size and shape that will maintain tip temperature within the
   CAUTION: This is a flammable mixture.                                   range or 500 F to 600 F.
   Unless specified otherwise in this service manual, lubrication of    2. Use an appropriate gauge of RMA resin-core solder composed
   contacts in not required.                                               of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which       3. Keep the soldering iron tip clean and well tinned.
   receivers covered by this service manual might be equipped.          4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its              bristle (0.5 inch, or 1.25cm) brush with a metal handle.
   electrical assemblies unless all solid-state device heat sinks are      Do not use freon-propelled spray-on cleaners.
   correctly installed.                                                 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver            a. Allow the soldering iron tip to reach normal temperature.
   chassis ground before connecting the test receiver positive                 (500 F to 600 F)
   lead.                                                                   b. Heat the component lead until the solder melts.
   Always remove the test receiver ground lead last.                       c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this             type solder removal device or with solder braid.
   service manual.                                                             CAUTION: Work quickly to avoid overheating the
   CAUTION: Do not connect the test fixture ground strap to any                circuitboard printed foil.
   heat sink in this receiver.                                          6. Use the following soldering technique.
                                                                           a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices                                       (500 F to 600 F)
Some semiconductor (solid-state) devices can be damaged easily             b. First, hold the soldering iron tip and solder the strand against
by static electricity. Such components commonly are called                     the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES           c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors and          component lead and the printed circuit foil, and hold it there
semiconductor "chip" components. The following techniques                      only until the solder flows onto and around both the
should be used to help reduce the incidence of component                       component lead and the foil.
damage caused by static by static electricity.                                 CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or                  board printed foil.
   semiconductor-equipped assembly, drain off any electrostatic            d. Closely inspect the solder area and remove any excess or
   charge on your body by touching a known earth ground.                       splashed solder with a small wire-bristle brush.
   Alternatively, obtain and wear a commercially available
   discharging wrist strap device, which should be removed to
   prevent potential shock reasons prior to applying power to the


                                                                    -4-
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through          Circuit Board Foil Repair
which the IC leads are inserted and then bent flat against the           Excessive heat applied to the copper foil of any printed circuit
circuit foil. When holes are the slotted type, the following technique   board will weaken the adhesive that bonds the foil to the circuit
should be used to remove and replace the IC. When working with           board causing the foil to separate from or "lift-off" the board. The
boards using the familiar round hole, use the standard technique         following guidelines and procedures should be followed whenever
as outlined in paragraphs 5 and 6 above.                                 this condition is encountered.

Removal                                                                  At IC Connections
1. Desolder and straighten each IC lead in one operation by gently       To repair a defective copper pattern at IC connections use the
   prying up on the lead with the soldering iron tip as the solder       following procedure to install a jumper wire on the copper pattern
   melts.                                                                side of the circuit board. (Use this technique only on IC
2. Draw away the melted solder with an anti-static suction-type          connections).
   solder removal device (or with solder braid) before removing the
   IC.                                                                   1. Carefully remove the damaged copper pattern with a sharp
Replacement                                                                 knife. (Remove only as much copper as absolutely necessary).
1. Carefully insert the replacement IC in the circuit board.             2. carefully scratch away the solder resist and acrylic coating (if
2. Carefully bend each IC lead against the circuit foil pad and             used) from the end of the remaining copper pattern.
   solder it.                                                            3. Bend a small "U" in one end of a small gauge jumper wire and
3. Clean the soldered areas with a small wire-bristle brush.                carefully crimp it around the IC pin. Solder the IC connection.
   (It is not necessary to reapply acrylic coating to the areas).        4. Route the jumper wire along the path of the out-away copper
                                                                            pattern and let it overlap the previously scraped end of the good
"Small-Signal" Discrete Transistor                                          copper pattern. Solder the overlapped area and clip off any
Removal/Replacement                                                         excess jumper wire.
1. Remove the defective transistor by clipping its leads as close as
   possible to the component body.                                       At Other Connections
2. Bend into a "U" shape the end of each of three leads remaining        Use the following technique to repair the defective copper pattern
   on the circuit board.                                                 at connections other than IC Pins. This technique involves the
3. Bend into a "U" shape the replacement transistor leads.               installation of a jumper wire on the component side of the circuit
4. Connect the replacement transistor leads to the corresponding         board.
   leads extending from the circuit board and crimp the "U" with
   long nose pliers to insure metal to metal contact then solder         1. Remove the defective copper pattern with a sharp knife.
   each connection.                                                         Remove at least 1/4 inch of copper, to ensure that a hazardous
                                                                            condition will not exist if the jumper wire opens.
Power Output, Transistor Device                                          2. Trace along the copper pattern from both sides of the pattern
Removal/Replacement                                                         break and locate the nearest component that is directly
1. Heat and remove all solder from around the transistor leads.             connected to the affected copper pattern.
2. Remove the heat sink mounting screw (if so equipped).                 3. Connect insulated 20-gauge jumper wire from the lead of the
3. Carefully remove the transistor from the heat sink of the circuit        nearest component on one side of the pattern break to the lead
   board.                                                                   of the nearest component on the other side.
4. Insert new transistor in the circuit board.                              Carefully crimp and solder the connections.
5. Solder each transistor lead, and clip off excess lead.                   CAUTION: Be sure the insulated jumper wire is dressed so the
6. Replace heat sink.                                                       it does not touch components or sharp edges.

Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
   possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
   board.
3. Observing diode polarity, wrap each lead of the new diode
   around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
   the two "original" leads. If they are not shiny, reheat them and if
   necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
   stake.
2. Securely crimp the leads of replacement component around
   notch at stake top.
3. Solder the connections.
   CAUTION: Maintain original spacing between the replaced
   component and adjacent components and the circuit board to
   prevent excessive component temperatures.


                                                                     -5-
                                                     SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.

1. Application range                                                   3. Test and Inspection Method
This specification is applied to AL-04DA chassis.                         3.1 Performance : LGE TV test method followed.

2. Requirement for Test                                                   3.2 Demanded other specification.
Testing for standard of each part must be followed in below                   EMI : FCC Class B, IC Class B
condition.                                                                    SAFETY : UL1492, CSA, C22, No.1

   (1) Temperature: 20



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
