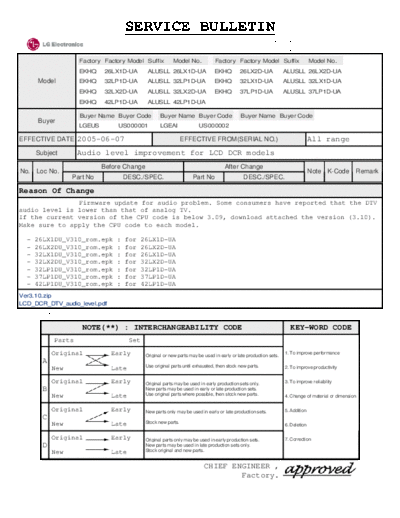

Image preview - the first page of the document



>> Download LG_Audio_level_improvement_for_DCR_Models_[SM] documenatation <<

Text preview - extract from the document

                                    SERVICE BULLETIN
                                                                                                        No. : 0IVL20050016
                                                                                                        Date : 2005-06-08
                    Factory Factory Model Suffix          Model No.           Factory Factory Model Suffix                      Model No.
                    EKHQ     26LX1D-UA       ALUSLL 26LX1D-UA                 EKHQ         26LX2D-UA              ALUSLL 26LX2D-UA
      Model         EKHQ     32LP1D-UA       ALUSLL 32LP1D-UA                 EKHQ         32LX1D-UA              ALUSLL 32LX1D-UA
                    EKHQ     32LX2D-UA       ALUSLL 32LX2D-UA                 EKHQ         37LP1D-UA              ALUSLL 37LP1D-UA
                    EKHQ     42LP1D-UA       ALUSLL 42LP1D-UA

                    Buyer Name Buyer Code          Buyer Name Buyer Code                   Buyer Name Buyer Code
      Buyer
                    LGEUS        US000001          LGEAI              US000002

EFFECTIVE DATE 2005-06-07                                      EFFECTIVE FROM(SERIAL NO.)                                       All range
      Subject       Audio level improvement for LCD DCR models
                            Before Change                                          After Change
No. Loc No.                                                                                                                     Note K-Code Remark
                  Part No           DESC./SPEC.                    Part No                   DESC./SPEC.

Reason Of Change
               Firmware update for audio problem. Some consumers have reported that the DTV
audio level is lower than that of analog TV.
If the current version of the CPU code is below 3.09, download attached the version (3.10).
Make sure to apply the CPU code to each model.

  -   26LX1DU_V310_rom.epk      :   for    26LX1D-UA
  -   26LX2DU_V310_rom.epk      :   for    26LX2D-UA
  -   32LX1DU_V310_rom.epk      :   for    26LX1D-UA
  -   32LX2DU_V310_rom.epk      :   for    32LX2D-UA
  -   32LP1DU_V310_rom.epk      :   for    32LP1D-UA
  -   37LP1DU_V310_rom.epk      :   for    37LP1D-UA
  -   42LP1DU_V310_rom.epk      :   for    42LP1D-UA
Ver3.10.zip
LCD_DCR_DTV_audio_level.pdf

        ** FILE THIS SERVICE BULLETIN WITH YOUR SERVICE MANUAL
                     NOTE(**) : INTERCHANGEABILITY CODE                                                              KEY-WORD CODE
            Parts                    Set
            Original          Early         Original or new parts may be used in early or late production sets.
                                                                                                                  1. To improve performance
        A
                                            Use original parts until exhausted, then stock new parts.             2. To improve productivity
            New               Late

            Original          Early         Original parts may be used in early production sets only.             3. To improve reliability
        B                                   New parts may be used in early or late production sets.
                                            Use original parts where possible, then stock new parts.
            New               Late                                                                                4. Change of material or dimension

            Original          Early         New parts only may be used in early or late production sets.          5. Addition
        C
                                            Stock new parts.
            New               Late                                                                                6. Deletion

            Original          Early         Original parts only may be used in early production sets.             7. Correction
        D                                   New parts may be used in late production sets only.
                                            Stock original and new parts.
            New               Late

                                                                         CHIEF ENGINEER ,
                                                                                 Factory.
