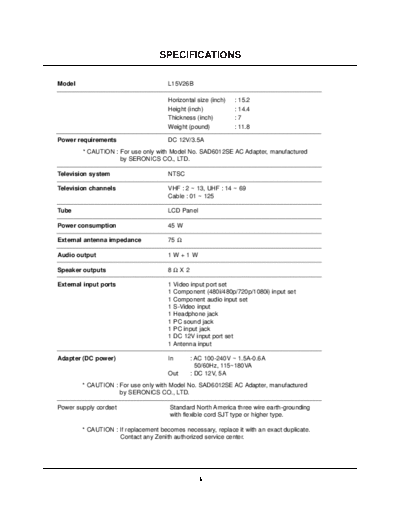

Image preview - the first page of the document
![LG_L15V26B_[SM]](/pics/5c25c5b78fba4.gif)
>> Download LG_L15V26B_[SM] documenatation <<
Text preview - extract from the document
SPECIFICATIONS
Model L15V26B
Horizontal size (inch) : 15.2
Height (inch) : 14.4
Thickness (inch) : 7
Weight (pound) : 11.8
Power requirements DC 12V/3.5A
* CAUTION : For use only with Model No. SAD6012SE AC Adapter, manufactured
by SERONICS CO., LTD.
Television system NTSC
Television channels VHF : 2 ~ 13, UHF : 14 ~ 69
Cable : 01 ~ 125
Tube LCD Panel
Power consumption 45 W
External antenna impedance 75
Audio output 1W+1W
Speaker outputs 8X2
External input ports 1 Video input port set
1 Component (480i/480p/720p/1080i) input set
1 Component audio input set
1 S-Video input
1 Headphone jack
1 PC sound jack
1 PC input jack
1 DC 12V input port set
1 Antenna input
Adapter (DC power) In : AC 100-240V ~ 1.5A-0.6A
50/60Hz, 115~180VA
Out : DC 12V, 5A
* CAUTION : For use only with Model No. SAD6012SE AC Adapter, manufactured
by SERONICS CO., LTD.
Power supply cordset Standard North America three wire earth-grounding
with flexible cord SJT type or higher type.
* CAUTION : If replacement becomes necessary, replace it with an exact duplicate.
Contact any Zenith authorized service center.
DESCRIPTION OF CONTROLS
Front of the TV
Side Control Panel
Channel Buttons
ch
Volume Buttons
vol
enter
Enter Button
menu
Menu Button
tv/video
TV/Video Button on/off
On/Off Button
Remote Control Sensor
Power/Standby indicator
Illuminates brightly when the
TV is in standby mode. Dims
when the TV is switched on.
DESCRIPTION OF CONTROLS
Back of the TV
Connection Panel
PC PC INPUT H/P S-VIDEO VIDEO (MONO) L AUDIO R Y PB PR L R ANT IN DC 12V
SOUND +75
COMPONENT(480i/480p/720p/1080i) AUDIO
IN DVD/DTV IN
PC Input S-Video Input Antenna Input
Audio/Video Input
PC Sound Input DC 12V Input
DVD/DTV IN
Headphone Jack
(Component (480i/480p/720p/1080i),
AUDIO) Input
DESCRIPTION OF CONTROLS
Remote Control Overview
power tv/video
POWER TV/VIDEO
1 2 3
NUMBERS 4 5 6
7 8 9
flashbk cc
FLASHBK 0 CLOSED CAPTION
menu mute
MENU MUTE
ch
ENTER
vol enter vol
CHANNEL (D,E)
VOLUME (F,G)
mts ch sleep
MTS SLEEP TIMER
SPECIFICATIONS
Displayable Video Formats
Horizontal Vertical
MODE Resolution
Frequency (KHz) Frequency (Hz)
640x400 31.5KHz 70Hz
640x400 37.9KHz 85Hz
640x480 31.5KHz 60Hz
VGA 640x480 35.0KHz 67Hz
640x480 37.9KHz 72Hz
640x480 37.5KHz 75Hz
640x480 43.3KHz 85Hz
720x400 31.5KHz 70Hz
800x600 35.2KHz 56Hz
800x600 37.9KHz 60Hz
SVGA 800x600 48.1KHz 72Hz
800x600 46.9KHz 75Hz
800x600 53.7KHz 85Hz
(MAC) 832x624 49.7KHz 75Hz
1024x768 48.4KHz 60Hz
XGA 1024x768 56.5KHz 70Hz
1024x768 60.2KHz 75Hz
1024x768 68.67KHz 85Hz
ADJUSTMENT INSTRUCTION
1. Notes 2. PC Input Mode Adjustment
(1) This set uses an AC adapter, so connect the adapter to 2-1. Required Test Equipment
the TV correctly before adjustment. (1) A pattern generator with a Gray Pattern of 16(11) tones.
(2) These adjustments must be performed in the correct (2) A Service remote control
sequence.
(3) These adjustments must be performed at 25!5cC of 2-2. Preparation for Adjustment
temperature and 65!10% of relative humidity. (1) Perform Heat Run for more than 30 minutes with a white
(4) The input voltage of the receiver must be kept at pattern.
100~220V, 50/60Hz during adjustment. (2) Connect the signal from a pattern generator to the LCD
(5) The set must be operated for 30 minutes before TV's PC Input Jack(D-Sub).
adjustment. Heat Run must be performed with the full white
signal or a TV noise signal. 2-3. Auto Gray Adjustment
(1) Apply the gray signal of XGA(1024X768) 16 tones(H: 31-
214 Pattern, V: 60-84 Pattern) apply the gray signal of
Pattern Generator 16(11) tones.
(2) In SVC Menu mode, adjust the Auto gray from 0 to 1 by
using the Volume + Key.
2-4. Position of Mode Adjustment
Timing of Mode Table * H[dot]/V[line]
Mode VGA-60 VGA-67 VGA-72 VGA-75 VGA-85 SVGA-56 SVGA-60 SVGA-72
H_Total 800 864 832 840 832 1024 1056 1040
H_Display 640 640 656 640 640 800 800 800
H_Blanking 160 224 176 200 192 224 256 240
H_Sync 96 64 40 64 56 72 128 120
H Polarity NEG. NEG. NEG. NEG. NEG. POS POS POS
H_Bp 48 96 120 120 80 128 88 64
H_Fp 16 64 16 16 56 24 40 56
H-Freq[KHz] 31.469 35.0 37.861 37.5 43.269 35.156 37.879 48.077
/Clk[MHz] 25.175 30.24 31.5 31.5 36.0 36.0 40.0 50.0
V_Total 525 525 520 500 509 625 628 666
V_Display 480 480 496 480 480 600 600 600
V_Blanking 45 45 24 20 29 25 28 66
V_Sync 2 3 3 3 3 2 4 6
V Polarity NEG NEG NEG NEG NEG POS POS POS
V_Bp 33 39 20 16 25 22 23 23
V_Fp 10 3 1 1 1 1 1 37
ADJUSTMENT INSTRUCTION
Mode SVGA-75 SVGA-85 XGA-60 XGA-70 XGA-75 MAC-75 XGA-85
H_Total 1056 1048 1344 1328 1312 1152 1376
H_Display 800 800 1024 1024 1024 832 1024
H_Blanking 256 248 320 304 288 320 352
H_Sync 80 64 136 136 96 64 96
H Polarity POS POS NEG POS NEG POS
H_Bp 160 152 136 144 176 224 208
H_Fp 16 32 160 24 16 32 48
H-Freq[KHz] 46.875 53.674 48.363 56.476 60.023 49.725 68.677
/Clk[MHz] 49.5 56.25 65.0 75.0 78.75 57.283 84.997
V_Total 625 631 806 806 800 667 808
V_Display 600 600 768 768 768 624 768
V_Blanking 25 31 38 38 32 43 40
V_Sync 3 3 6 6 3 3 3
V Polarity POS POS NEG NEG POS NEG POS
V_Bp 21 27 29 29 28 39 36
V_Fp 1 1 3 3 1 1 1
Mode VGA350-70 VGA350-85 VGA400-70 VGA400-85
H_Total 800 832 800 832
H_Display 640 640 640 640
H_Blanking 160 192 160 192
H_Sync 96 64 96 64
H Polarity POS POG NEG NEG
H_Bp 48 96 48 96
H_Fp 16 32 16 32
H-Freq[KHz] 31.468 37.86 31.46 37.86
/Clk[MHz] 25.17 31.47 25.17 31.5
V_Total 449 445 449 445
V_Display 350 350 400 400
V_Blanking 99 95 49 45
V_Sync 2 3 2 3
V Polarity NEG NEG POS POS
V_Bp 60 60 35 41
V_Fp 37 32 12 1
ADJUSTMENT INSTRUCTION
4. EDID(The Extended Display Identification Data)
EDID Table
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 00 FF FF FF FF FF FF 00 30 E5 D7 3A 01 00 00 00
10 00 0B 01 01 78 1F 17 70 E8 C3 A0 A3 54 4C 97 24
20 14 50 54 BF E8 80 31 59 3B D9 45 59 61 59 71 59
30 81 40 81 80 01 01 10 0E 01 01 01 01 01 01 01 01
40 01 01 01 01 01 01 01 01 F9 15 01 01 01 01 01 01
50 01 01 01 01 01 01 01 01 01 01 64 19 00 40 41 00
60 26 30 18 88 36 00 0E C3 10 00 00 1E 00 00 00 FD
70 00 32 55 1E 46 0D 00 0A 20 20 20 20 20 20 00 C8
5. Option 1 Data(200PR~A2 ST: 1bit, SYS: 2bit)
OPTION OPTION
200PR TEXT I/II SV TOP SCART A2 ST SYS 200PR TEXT I/II SV TOP SCART A2 ST SYS
Data Data
0 0 0 0 0 0 0 0 25 0 0 0 1 1 0 1
1 0 0 0 0 0 0 1 26 0 0 0 1 1 0 2
2 0 0 0 0 0 0 2 27 0 0 0 1 1 0 3
3 0 0 0 0 0 0 3 28 0 0 0 1 1 1 0
4 0 0 0 0 0 1 0 29 0 0 0 1 1 1 1
5 0 0 0 0 0 1 1 30 0 0 0 1 1 1 2
6 0 0 0 0 0 1 2 31 0 0 0 1 1 1 3
7 0 0 0 0 0 1 3 32 0 0 1 0 0 0 0
8 0 0 0 0 1 0 0 33 0 0 1 0 0 0 1
9 0 0 0 0 1 0 1 34 0 0 1 0 0 0 2
10 0 0 0 0 1 0 2 35 0 0 1 0 0 0 3
11 0 0 0 0 1 0 3 36 0 0 1 0 0 1 0
12 0 0 0 0 1 1 0 37 0 0 1 0 0 1 1
13 0 0 0 0 1 1 1 38 0 0 1 0 0 1 2
14 0 0 0 0 1 1 2 39 0 0 1 0 0 1 3
15 0 0 0 0 1 1 3 40 0 0 1 0 1 0 0
16 0 0 0 1 0 0 0 41 0 0 1 0 1 0 1
17 0 0 0 1 0 0 1 42 0 0 1 0 1 0 2
18 0 0 0 1 0 0 2 43 0 0 1 0 1 0 3
19 0 0 0 1 0 0 3 44 0 0 1 0 1 1 0
20 0 0 0 1 0 1 0 45 0 0 1 0 1 1 1
21 0 0 0 1 0 1 1 46 0 0 1 0 1 1 2
22 0 0 0 1 0 1 2 47 0 0 1 0 1 1 3
23 0 0 0 1 0 1 3 48 0 0 1 1 0 0 0
24 0 0 0 1 1 0 0 49 0 0 1 1 0 0 1
- 11 -
ADJUSTMENT INSTRUCTION
OPTION OPTION
200PR TEXT I/II SV TOP SCART A2 ST SYS 200PR TEXT I/II SV TOP SCART A2 ST SYS
Data Data
50 0 0 1 1 0 0 2 92 0 1 0 1 1 1 0
51 0 0 1 1 0 0 3 93 0 1 0 1 1 1 1
52 0 0 1 1 0 1 0 94 0 1 0 1 1 1 2
53 0 0 1 1 0 1 1 95 0 1 0 1 1 1 3
54 0 0 1 1 0 1 2 96 0 1 1 0 0 0 0
55 0 0 1 1 0 1 3 97 0 1 1 0 0 0 1
56 0 0 1 1 1 0 0 98 0 1 1 0 0 0 2
57 0 0 1 1 1 0 1 99 0 1 1 0 0 0 3
58 0 0 1 1 1 0 2 100 0 1 1 0 0 1 0
59 0 0 1 1 1 0 3 101 0 1 1 0 0 1 1
60 0 0 1 1 1 1 0 102 0 1 1 0 0 1 2
61 0 0 1 1 1 1 1 103 0 1 1 0 0 1 3
62 0 0 1 1 1 1 2 104 0 1 1 0 1 0 0
63 0 0 1 1 1 1 3 105 0 1 1 0 1 0 1
64 0 1 0 0 0 0 0 106 0 1 1 0 1 0 2
65 0 1 0 0 0 0 1 107 0 1 1 0 1 0 3
66 0 1 0 0 0 0 2 108 0 1 1 0 1 1 0
67 0 1 0 0 0 0 3 109 0 1 1 0 1 1 1
68 0 1 0 0 0 1 0 110 0 1 1 0 1 1 2
69 0 1 0 0 0 1 1 111 0 1 1 0 1 1 3
70 0 1 0 0 0 1 2 112 0 1 1 1 0 0 0
71 0 1 0 0 0 1 3 113 0 1 1 1 0 0 1
72 0 1 0 0 1 0 0 114 0 1 1 1 0 0 2
73 0 1 0 0 1 0 1 115 0 1 1 1 0 0 3
74 0 1 0 0 1 0 2 116 0 1 1 1 0 1 0
75 0 1 0 0 1 0 3 117 0 1 1 1 0 1 1
76 0 1 0 0 1 1 0 118 0 1 1 1 0 1 2
77 0 1 0 0 1 1 1 119 0 1 1 1 0 1 3
78 0 1 0 0 1 1 2 120 0 1 1 1 1 0 0
79 0 1 0 0 1 1 3 121 0 1 1 1 1 0 1
80 0 1 0 1 0 0 0 122 0 1 1 1 1 0 2
81 0 1 0 1 0 0 1 123 0 1 1 1 1 0 3
82 0 1 0 1 0 0 2 124 0 1 1 1 1 1 0
83 0 1 0 1 0 0 3 125 0 1 1 1 1 1 1
84 0 1 0 1 0 1 0 126 0 1 1 1 1 1 2
85 0 1 0 1 0 1 1 127 0 1 1 1 1 1 3
86 0 1 0 1 0 1 2 128 1 0 0 0 0 0 0
87 0 1 0 1 0 1 3 129 1 0 0 0 0 0 1
88 0 1 0 1 1 0 0 130 1 0 0 0 0 0 2
89 0 1 0 1 1 0 1 131 1 0 0 0 0 0 3
90 0 1 0 1 1 0 2 132 1 0 0 0 0 1 0
91 0 1 0 1 1 0 3 133 1 0 0 0 0 1 1
ADJUSTMENT INSTRUCTION
OPTION OPTION
200PR TEXT I/II SV TOP SCART A2 ST SYS 200PR TEXT I/II SV TOP SCART A2 ST SYS
Data Data
134 1 0 0 0 0 1 2 176 1 0 1 1 0 0 0
135 1 0 0 0 0 1 3 177 1 0 1 1 0 0 1
136 1 0 0 0 1 0 0 178 1 0 1 1 0 0 2
137 1 0 0 0 1 0 1 179 1 0 1 1 0 0 3
138 1 0 0 0 1 0 2 180 1 0 1 1 0 1 0
139 1 0 0 0 1 0 3 181 1 0 1 1 0 1 1
140 1 0 0 0 1 1 0 182 1 0 1 1 0 1 2
141 1 0 0 0 1 1 1 183 1 0 1 1 0 1 3
142 1 0 0 0 1 1 2 184 1 0 1 1 1 0 0
143 1 0 0 0 1 1 3 185 1 0 1 1 1 0 1
144 1 0 0 1 0 0 0 186 1 0 1 1 1 0 2
145 1 0 0 1 0 0 1 187 1 0 1 1 1 0 3
146 1 0 0 1 0 0 2 188 1 0 1 1 1 1 0
147 1 0 0 1 0 0 3 189 1 0 1 1 1 1 1
148 1 0 0 1 0 1 0 190 1 0 1 1 1 1 2
149 1 0 0 1 0 1 1 191 1 0 1 1 1 1 3
150 1 0 0 1 0 1 2 192 1 1 0 0 0 0 0
151 1 0 0 1 0 1 3 193 1 1 0 0 0 0 1
152 1 0 0 1 1 0 0 194 1 1 0 0 0 0 2
153 1 0 0 1 1 0 1 195 1 1 0 0 0 0 3
154 1 0 0 1 1 0 2 196 1 1 0 0 0 1 0
155 1 0 0 1 1 0 3 197 1 1 0 0 0 1 1
156 1 0 0 1 1 1 0 198 1 1 0 0 0 1 2
157 1 0 0 1 1 1 1 199 1 1 0 0 0 1 3
158 1 0 0 1 1 1 2 200 1 1 0 0 1 0 0
159 1 0 0 1 1 1 3 201 1 1 0 0 1 0 1
160 1 0 1 0 0 0 0 202 01 1 0 0 1 0 2
161 1 0 1 0 0 0 1 203 1 1 0 0 1 0 3
162 1 0 1 0 0 0 2 204 1 1 0 0 1 1 0
163 1 0 1 0 0 0 3 205 1 1 0 0 1 1 1
164 1 0 1 0 0 1 0 206 1 1 0 0 1 1 2
165 1 0 1 0 0 1 1 207 1 1 0 0 1 1 3
166 1 0 1 0 0 1 2 208 1 1 0 1 0 0 0
167 1 0 1 0 0 1 3 209 1 1 0 1 0 0 1
168 1 0 1 0 1 0 0 210 1 1 0 1 0 0 2
169 1 0 1 0 1 0 1 211 1 1 0 1 0 0 3
170 1 0 1 0 1 0 2 212 1 1 0 1 0 1 0
171 1 0 1 0 1 0 3 213 1 1 0 1 0 1 1
172 1 0 1 0 1 1 0 214 1 1 0 1 0 1 2
173 1 0 1 0 1 1 1 215 1 1 0 1 0 1 3
174 1 0 1 0 1 1 2 216 1 1 0 1 1 0 0
175 1 0 1 0 1 1 3 217 1 1 0 1 1 0 1
ADJUSTMENT INSTRUCTION
OPTION
200PR TEXT I/II SV TOP SCART A2 ST SYS
Data
218 1 1 0 1 1 0 2
219 1 1 0 1 1 0 3
220 1 1 0 1 1 1 0
221 1 1 0 1 1 1 1
222 1 1 0 1 1 1 2
223 1 1 0 1 1 1 3
224 1 1 1 0 0 0 0
225 1 1 1 0 0 0 1
226 1 1 1 0 0 0 2
227 1 1 1 0 0 0 3
228 1 1 1 0 0 1 0
229 1 1 1 0 0 1 1
230 1 1 1 0 0 1 2
231 1 1 1 0 0 1 3
232 1 1 1 0 1 0 0
233 1 1 1 0 1 0 1
234 1 1 1 0 1 0 2
235 1 1 1 0 1 0 3
236 1 1 1 0 1 1 0
237 1 1 1 0 1 1 1
238 1 1 1 0 1 1 2
239 1 1 1 0 1 1 3
240 1 1 1 1 0 0 0
241 1 1 1 1 0 0 1
242 1 1 1 1 0 0 2
243 1 1 1 1 0 0 3
244 1 1 1 1 0 1 0
245 1 1 1 1 0 1 1
246 1 1 1 1 0 1 2
247 1 1 1 1 0 1 3
248 1 1 1 1 1 0 0
249 1 1 1 1 1 0 1
250 1 1 1 1 1 0 2
251 1 1 1 1 1 0 3
252 1 1 1 1 1 1 0
253 1 1 1 1 1 1 1
254 1 1 1 1 1 1 2
255 1 1 1 1 1 1 3
ADJUSTMENT INSTRUCTION
6. Option2 data(ACMS~BBACK:1bit,LANG:3bit)
OPTION
ACMS VOL HIDEV
Data
0 0 0 0
1 0 0 1
2 0 1 0
3 0 1 1
4 1 0 0
5 1 0 1
6 1 1 0
7 1 1 1
7. Option3 data(IIC AFT~CH+AU:1bit)
OPTION
IIC AFT MD SAVE MONO CH+AUS
Data
0 0 0 0 0
1 0 0 0 1
2 0 0 1 0
3 0 0 1 1
4 0 1 0 0
5 0 1 0 1
6 0 1 1 0
7 0 1 1 1
8 1 0 0 0
9 1 0 0 1
10 1 0 1 0
11 1 0 1 1
12 1 1 0 0
13 1 1 0 1
14 1 1 1 0
15 1 1 1 1
TROUBLESHOOTING
1. General Features
No. Symptom Cause Check Point
1 Button doesn't 1) Broken components and 1) Check button visually.
function soldering Check and repair soldering
2) P2 connector error 2) Check and repair the P2 connector
2 No Picture Input error of inverter connector 1) Bend the pin legs of P1 connector -> recheck them
2) Check and repair the IC804,805 SI4925
P902 and Pin 21 connector 1) Check and fix P902 connector
have slipped out 2) Check and fix the components on the P902 LCD
module and main board
3) Check Pin21
Cracked components and 1) Check and repair the tuner and main board
soldering on the tuner board 2) Solder Q102
3 Dark screen 1) Defective LCD lamp 1) Replace the inverter
2) Defective inverter 2) Replace the LCD lamp
3) Input error of inverter connector 3) Check the connector input
2. PC Mode
No. Symptom Cause Check Point
4 Screen noise Clock or phase 1) Resetting is needed according to the video card of each
not able to be adjusted PC
2) Horizontal noise : adjust phase until no horizontal
noise occurs
3) Vertical noise : adjust clock in menu until no vertical
noise occurs.
5 Screen position error Screen position error 1) Run the Auto Configure in Menu.
horizontally or vertically 2) Adjust horizontal and vertical position until the screen
displays normally.
6 Color beat noise Solder of D-SUB Jack of JA202 Recheck and repair JA202, IC202.
and IC202.
3. TV and external input
No. Symptom Cause Check Point
7 No sound Defective Reset IC of IC603 1) Check the volume and speaker
- Speaker Defective MSP3440G of IC601 - Sound comes out only when being inputted into Audio
- Earphone Defective B+(8V,5V) of IC604,605. L/R
2) Check after replacing IC603
3) Replace IC601
4) Check and replace B+ of IC604,605.
8 Video color beat noise Earphone shield case being touched Check the shield and JA203, Replace shield case
Solder of IC301 and IC912 Re-solder.
EXPLODED VIEW
521
430
400
520
540
112
300
120
410
530
310
560
330
EXPLODED VIEW PARTS LIST
No. PART NO. DESCRIPTION
112 6304FLP006B LCD,LC151X01-C3P1
120 6400VA0017A SPEAKER,GENERAL T401SX-095K14 LG C&D 8 OHM 1.0
300 3091V00443B CABINET ASSEMBLY
310 5020V00552J BUTTON,CONTROL RU-15LA51 ABS, HF-380
330 5020V00553G BUTTON,POWER RU-15LA51 ABS, HF-380 7K
400 3809V00300D BACK COVER ASSEMBLY,RU-15LA52 2PHONE ML-012A
410 4811V00029B BRACKET ASSEMBLY,STAND RU-15LA50 ML024A ZENITH
430 4814V00326A SHIELD,COVER 15LA50 ML012A
520 6871VMMC05U PCB ASSEMBLY,MAIN ML012A
521 4950V00059H METAL,SBHG 15LA52
530 6871VSMA12A PCB ASSEMBLY,SUB CONT MF-004A CTL ASSY RT-15LA3
540 6633VA0003L INVERTER ASSEMBLY,12V NON ECT ALPS 4LAMP
560 6871VSMA13G PCB ASSEMBLY,SUB POWER ML012A RU-15LA52
REPLACEMENT PARTS LIST
For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film
charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film
in the P/No. means as follows; CE : Electrolytic RN : Metal Film RUN DATE : 2002.9.18
RF : Fusible
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
Q904 0TR387500AA CHIP 2SC3875S(ALY) KEC
IC
Q1101 0TR150400BA CHIP 2SA1504S(ASY) KEC
IC1 0IZZVC0042H M37136EFSP 52P ST ML012A
IC2 0IAL241600B AT24C16-10PC 8D EEPROM 16K
DIODE
IC3 0IFA752700A KA75270Z 3 TP RE-SET IC MC-007
D1 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC4 0IMCRNS002A LM1881M NATIONAL SEMICONDUCTOR
D2 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC201 0IAL242110A AT24C21-10SI-2.5 8P,SOP TP 1K
D601 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC202 0IPH740800M 74F08D 14P SOIC R/TP QUAD 2-IN
D602 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC301 0IIT323000D VPC3230D QA B4 80P QFP TRAY SO
D801 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC302 0IHY100100A LGTV1001 64P QFP BK PROGRESSIV
D802 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC601 0IMCRMN014A MSP3440G QA B8 V3 MICRONAS 80
D805 0DD181009AB KDS181 TP KEC - 85V - - - 300M
IC602 0ISA428200A LA4282 12S 2CHX10W AUDIO AMP
LD1101 0DL112100AB LED,SM3411(DL-11S2GN1) BK Y-GREEN
IC603 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOLTA
ZD101 0DZ330009BA ZENER,HZT33(TP) HITACHI
IC604 0IMCRFA009A KA78M08RTM, FAIRCHILD 2P D-PAK
ZD211 0DZRM00178A ZENERS,UDZS TE-17 5.1B
IC605 0IMCRFA008A KA78M05RTM, FAIRCHILD 2P D-PAK
IC801 0ITC786000A SI786 28SSOP TP DUAL-OUTPUT PO CAPACITOR
IC901 0IMCRG2004B JAGASM A4 SAGE 352BALL TRAY HI
C17 0CE107SF6DC 100UF MVG 16V M SMD R/TP
IC902 0IPH806520A 80C652 40 PLCC ST 8-BIT MICROC
C20 0CE107SF6DC 100UF MVG 16V M SMD R/TP
IC903 0IPH743730E 74HCT373D 20SOP R/TP ADDRESS L
C21 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD
IC904 0IZZVC0041M M27C512_10F1 DIP BK 512K ML-01
C24 0CE107SF6DC 100UF MVG 16V M SMD R/TP
IC905 0ISS416162C K4S161622E-TC80 50TSOP R/TP SD
C25 0CE227VF6DC 220UF MV 16V 20% R/TP(SMD) SMD
IC906 0ISS416162C K4S161622E-TC80 50TSOP R/TP SD
C60 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
IC907 0IPH740400G 74HC04D HEX INVERTER 14P,SOP T
C63 0CE476SF6DC 47UF MVG 16V M SMD R/TP
IC908 0IAL241610A AT24C16N-10SI 8P SOIC ST EEPRO
C69 0CE105VK6DC 1UF MV 50V 20% R/TP(SMD) SMD
IC909 0IMCRFA020A RC1587DT_36 FAIRCHILD 3P TO252
C101 0CE476DH618 47UF STD 25V 20% FL TP 5
IC914 0IMCRTH001A THC63LVDM83R THINE ELECTRONICS
C105 0CE106DK618 10UF STD 50V M FL TP5
TRANSISTOR C107 0CE108DD618 1000UF STD 10V M FL TP5
C113 0CE105DK618 1UF STD 50V M FL TP5
IC802 0TFVI80001A VISHAY SI4808DY R/TP SO-8 30V
C115 0CE107DF618 100UF STD 16V M FL TP5
IC803 0TFVI80001A VISHAY SI4808DY R/TP SO-8 30V
C209 0CE225VK6DC 2.2UF MV 50V 20% R/TP(SMD) SMD
IC804 0TFVI80005A VISHAY SI4963DY R/TP SO-8 -20V
C214 0CE476SF6DC 47UF MVG 16V M SMD R/TP
IC805 0TF492509AA FET,SI4925DY TP TEMIC 30V 6.1A SO
C217 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD
IC913 0TF492509AA FET,SI4925DY TP TEMIC 30V 6.1A SO
C220 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD
Q3 0TR387500AA CHIP 2SC3875S(ALY) KEC
C221 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD
Q5 0TR387500AA CHIP 2SC3875S(ALY) KEC
C302 0CE476SF6DC 47UF MVG 16V M SMD R/TP
Q102 0TR387500AA CHIP 2SC3875S(ALY) KEC
C323 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD
Q204 0TR387500AA CHIP 2SC3875S(ALY) KEC
C331 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q205 0TR387500AA CHIP 2SC3875S(ALY) KEC
C332 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q206 0TR387500AA CHIP 2SC3875S(ALY) KEC
C333 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q207 0TR387500AA CHIP 2SC3875S(ALY) KEC
C334 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q208 0TR387500AA CHIP 2SC3875S(ALY) KEC
C335 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q209 0TR387500AA CHIP 2SC3875S(ALY) KEC
C336 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q210 0TR387500AA CHIP 2SC3875S(ALY) KEC
C347 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q301 0TR387500AA CHIP 2SC3875S(ALY) KEC
C354 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
Q605 0TR150400BA CHIP 2SA1504S(ASY) KEC
C361 0CE105CK636 1UF SHL,SD 50V M FM5 BP(D) TP
Q801 0TR387500AA CHIP 2SC3875S(ALY) KEC
C362 0CE105CK636 1UF SHL,SD 50V M FM5 BP(D) TP
Q901 0TR387500AA CHIP 2SC3875S(ALY) KEC
C363 0CE105CK636 1UF SHL,SD 50V M FM5 BP(D) TP
Q903 0TR387500AA CHIP 2SC3875S(ALY) KEC
C364 0CE105CK636 1UF SHL,SD 50V M FM5 BP(D) TP
REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
C365 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R C946 0CE476SF6DC 47UF MVG 16V M SMD R/TP
C406 0CE476SF6DC 47UF MVG 16V M SMD R/TP C970 0CE107SF6DC 100UF MVG 16V M SMD R/TP
C418 0CE107SF6DC 100UF MVG 16V M SMD R/TP C1101 0CE107DD618 100UF STD 10V M FL TP5
C493 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD
100UF MVG 16V M SMD R/TP
FUSE
C494 0CE107SF6DC
C495 0CE107SF6DC 100UF MVG 16V M SMD R/TP F101 0FS6300B84B FUSE,SLOW BLOW 630MA 250V
C610 0CE107DF618 100UF STD 16V M FL TP5 F102 131-096F FUSE,FAST BLOE MICRO 125V 2.5A
C614 0CE107DF618 100UF STD 16V M FL TP5
JACK
C618 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R
C619 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R JA201 6612VAH001A JACK,PHONE HEC3900-010110 HOSIDEN DC (7)
C620 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R JA203 6613V00008F JACK ASSY,PMJ014F E/P(ST)+S-VH
C621 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R JA204 6612VJH008D JACK,RCA PJ6063D DVD IN 3P GN-
C622 0CE476DF618 47UF STD 16V M FL TP5 JA205A 380-336E JACK,RCA WA6013E RCA 1P WH GOL
C631 0CE106DF618 10UF STD 16V M FL TP5 JA205B 380-336F JACK,RCA WA6013E RCA RED 1P GO
C632 0CE106DF618 10UF STD 16V M FL TP5 JA206 6612VCH003B JACK,PHONE PEJ012C H=6.5 STEREO
C633 0CE335DK618 3.3UF STD 50V 20% FL TP 5
COIL & TRANSFORMER
C635 0CE107DF618 100UF STD 16V M FL TP5
C638 0CE107DF618 100UF STD 16V M FL TP5 L102 0LA0272K139 INDUCTOR,27UH K
C639 0CE107DF618 100UF STD 16V M FL TP5 L802 6140VB0004B COIL,CHOKE 26UH 1UEWPHY 22.5TURN
C640 0CE477DF618 470UF STD 16V 20% FL TP 5 L803 6140VB0004A COIL,CHOKE 9.5UH 1UEWPHY 13.5TURN
C643 0CE477DF618 470UF STD 16V 20% FL TP 5 L1101 0LA0222K119 INDUCTOR,22UH K
C644 0CE107DF618 100UF STD 16V M FL TP5 T801 6170VTCA30A TRANSFORMER,SMPS[COIL] EPC 13-Z 320UH DC-DC CONV. SI-
C645 0CE107DH618 100UF STD 25V M FL TP5
RESISTOR
C647 0CE225DK618 2.2UF STD 50V 20% FL TP 5
C648 0CE225DK618 2.2UF STD 50V 20% FL TP 5 R219 0RD1200H609 120 OHM 1/2 W 5.00% TA52
C649 0CQ1031N509 0.01U 100V K POLY TP R220 0RD1200H609 120 OHM 1/2 W 5.00% TA52
C650 0CE477DF618 470UF STD 16V 20% FL TP 5 R803 0RHZVTA001A 0.025 OHM 1W 2% 2512 R/TP, IRC
C651 0CE476DF618 47UF STD 16V M FL TP5 R805 0RHZVTA001A 0.025 OHM 1W 2% 2512 R/TP, IRC
C652 0CQ1031N509 0.01U 100V K POLY TP RA901 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C653 0CE107DF618 100UF STD 16V M FL TP5 RA902 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C654 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R RA903 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C655 0CK224DF56A 220000PF 2012 16V 10% R/TP X7R RA904 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C801 0CE476DK618 47UF STD 50V M FL TP5 RA905 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C802 0CE477DF618 470UF STD 16V 20% FL TP 5 RA906 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C803 0CE477DF618 470UF STD 16V 20% FL TP 5 RA907 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C804 0CE477DF618 470UF STD 16V 20% FL TP 5 RA908 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C805 0CE477DF618 470UF STD 16V 20% FL TP 5 RA909 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C806 0CE477DF618 470UF STD 16V 20% FL TP 5 RA910 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C807 0CE477DF618 470UF STD 16V 20% FL TP 5 RA911 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C808 0CE227DH618 220UF STD 25V M FL TP5 RA912 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C814 0CE107DH618 100UF STD 25V M FL TP5 RA926 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C815 0CE107DH618 100UF STD 25V M FL TP5 RA927 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C817 0CE475DK618 4.7UF STD 50V 20% FL TP 5 RA928 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C902 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD RA929 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C904 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD RA930 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C906 0CE107SF6DC 100UF MVG 16V M SMD R/TP RA931 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 OH
C909 0CE107SF6DC 100UF MVG 16V M SMD R/TP
SWITCH
C911 0CE107SF6DC 100UF MVG 16V M SMD R/TP
C915 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) SMD SW1101 140-313A SWITCH,TACT 2LEAD 100G(TA)
C935 0CE107SF6DC 100UF MVG 16V M SMD R/TP SW1101 6600VM1001A SWITCH,PUSH SDKLA1 UL/CSA 250V 5A VER
C939 0CE476SF6DC 47UF MVG 16V M SMD R/TP SW1102 140-313A SWITCH,TACT 2LEAD 100G(TA)
REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
SW1103 140-313A SWITCH,TACT 2LEAD 100G(TA) P1101 6631V20014E CONNECTOR ASSEMBLY,12P 300MM
SW1104 140-313A SWITCH,TACT 2LEAD 100G(TA) P1103 6631V25049H CONNECTOR ASSY,4P 200MM
SW1105 140-313A SWITCH,TACT 2LEAD 100G(TA) PA1101 6726VV0006D REMOTE CONTROLLER RECEIVER,38KHZ
SW1106 140-313A SWITCH,TACT 2LEAD 100G(TA) TU101 6700VNF019E TUNER,TAFH-H001P LG NTSC FS
SW1107 140-313A SWITCH,TACT 2LEAD 100G(TA)
ACCESSORIES
FILTER & CRYSTAL
A1 3828VA0308Q MANUAL,OWNERS ML012A RU-15LA52 ZENITH EN
L1 6210TCE001G FILTER,EMC HH-1M3216-501 A2 6710V00082G REMOTE CONTROLLER
L3 6210TCE001G FILTER,EMC HH-1M3216-501 A3 6410VUH003A POWER CORD,PS204-001 VOLEX UL/CSA 1800MM
L4 6210TCE001G FILTER,EMC HH-1M3216-501 A4 6634B00043B ADAPTER,AC-DC SAD6012SE 12V 5.0A 60W
L101 6210TCE001G FILTER,EMC HH-1M3216-501
L103 6210TCE001G FILTER,EMC HH-1M3216-501
L104 6210TCE001G FILTER,EMC HH-1M3216-501
L106 6210TCE001G FILTER,EMC HH-1M3216-501
L201 6210TCE001A FILTER,EMC HB-1S2012-080JT
L202 6210TCE001A FILTER,EMC HB-1S2012-080JT
L204 6210TCE001A FILTER,EMC HB-1S2012-080JT
L205 6210TCE001A FILTER,EMC HB-1S2012-080JT
L206 6210TCE001A FILTER,EMC HB-1S2012-080JT
L207 6210TCE001G FILTER,EMC HH-1M3216-501
L215 6210TCE001A FILTER,EMC HB-1S2012-080JT
L216 6210TCE001A FILTER,EMC HB-1S2012-080JT
L276 6210TCE001A FILTER,EMC HB-1S2012-080JT
L277 6210TCE001A FILTER,EMC HB-1S2012-080JT
L301 6210TCE001G FILTER,EMC HH-1M3216-501
L302 6210TCE001G FILTER,EMC HH-1M3216-501
L303 6210TCE001A FILTER,EMC HB-1S2012-080JT
L304 6210TCE001G FILTER,EMC HH-1M3216-501
L601 6210TCE001G FILTER,EMC HH-1M3216-501
L602 6210TCE001G FILTER,EMC HH-1M3216-501
L603 6210TCE001G FILTER,EMC HH-1M3216-501
L604 6210TCE001G FILTER,EMC HH-1M3216-501
L801 6210TCE001G FILTER,EMC HH-1M3216-501
L804 6210TCE001G FILTER,EMC HH-1M3216-501
L805 6210TCE001G FILTER,EMC HH-1M3216-501
L901 6210TCE001G FILTER,EMC HH-1M3216-501
L902 6210TCE001G FILTER,EMC HH-1M3216-501
L904 6210TCE001G FILTER,EMC HH-1M3216-501
L905 6210TCE001G FILTER,EMC HH-1M3216-501
L908 6210TCE001G FILTER,EMC HH-1M3216-501
L911 6210TCE001G FILTER,EMC HH-1M3216-501
L913 6210TCE001G FILTER,EMC HH-1M3216-501
L917 6210TCE001G FILTER,EMC HH-1M3216-501
L918 6210TCE001G FILTER,EMC HH-1M3216-501
X1 156-A01P RESONATOR,CRYSTAL HC49U 8.000MHZ 30
X301 6202VDT002E RESONATOR,CRYSTAL SX-1SMD 20250000H
X601 156-A02M RESONATOR,CRYSTAL HC49U 18.432MHZ 30P
X901 6202VDT002B RESONATOR,CRYSTAL SX-1SMD 14.318MHZ
MISCELLANEOUS
JA202 6630VGA001B CONNECTOR,D-SUB 15PIN 2.2
PRINTED CIRCUIT BOARD CONTROL
MAIN(TOP)
POWER
MAIN(BOTTOM) BLOCK DIAGRAM
MEMORY MEMORY
MEMORY MEMORY
5V 5.0V 5.0V LVDS
LVDS
8bit 8bit
3.3V
IC904
IC904 C
IC902
EPROM
EPROM
SCL/SDA CPU
IC1
IC1 AT27C020
AT27C020 IC901
80C652 IC912
IC912 TMDS
TMDS
MICOM
MICOM JAGASM
(TXT/CAPTION)
(TXT/CAPTION)
R/G/B SIL140
SIL140
(SCALER / A/D Converter )
(SCALER A/D Converter ) 8/8/8BIT
6MHZ
6MHZ A2
A1
Y/ U/ V
4:2:2
H/V 5V POWER
3.3V 2.5V DC to DC Converter
SYNC 3.3V (SI786,SI4808DY,T801)
SCL/SDA
SYNC
SCL/SDA
8.0V 5.0V SEP. 5.0V 3.3V
CAPTION SEP.
SCL/SDA
12V 3.3V
Audio AMP R/ G/ B/ FB
33V 12V
LA4282 Y
IC601 IC301
R-SPK
Audio Processor
Audio Processor Color Decoder/ TO INVERTER
MSP-3440
MSP-3440 A/D Converter
SIF_IN
SIF_IN IC302 H- sync VPC-3230D
CLK ( 20.25MHz) 33V
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
