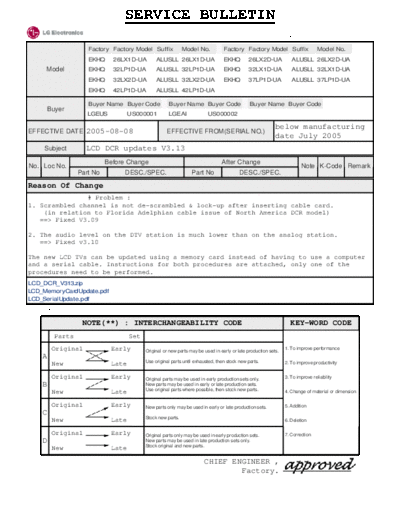

LG_LCD_DCR_updates_V3.13_[SM]


>> Download LG_LCD_DCR_updates_V3.13_[SM] documenatation <<

Text preview - extract from the document
                               SERVICE BULLETIN
                                                                                                    No. : 0IVL20050025
                                                                                                    Date : 2005-08-08
                   Factory Factory Model Suffix            Model No.           Factory Factory Model Suffix                    Model No.
                   EKHQ     26LX1D-UA        ALUSLL 26LX1D-UA                  EKHQ         26LX2D-UA             ALUSLL 26LX2D-UA
     Model         EKHQ     32LP1D-UA        ALUSLL 32LP1D-UA                  EKHQ         32LX1D-UA             ALUSLL 32LX1D-UA
                   EKHQ     32LX2D-UA        ALUSLL 32LX2D-UA                  EKHQ         37LP1D-UA             ALUSLL 37LP1D-UA
                   EKHQ     42LP1D-UA        ALUSLL 42LP1D-UA

                   Buyer Name Buyer Code           Buyer Name Buyer Code                    Buyer Name Buyer Code
     Buyer
                   LGEUS          US000001         LGEAI               US000002

                                                                                                         below manufacturing
EFFECTIVE DATE 2005-08-08                         EFFECTIVE FROM(SERIAL NO.)
                                                                                                         date July 2005
    Subject        LCD DCR updates V3.13
                          Before Change                                       After Change
No. Loc No.                                                                                                           Note K-Code Remark
                Part No        DESC./SPEC.                     Part No                 DESC./SPEC.

Reason Of Change
               # Problem :
1. Scrambled channel is not de-scrambled & lock-up after inserting cable card.
    (in relation to Florida Adelphian cable issue of North America DCR model)
   ==> Fixed V3.09

2. The audio level on the DTV station is much lower than on the analog station.
   ==> Fixed v3.10

The new LCD TVs can be updated using a memory card instead of having to use a computer
and a serial cable. Instructions for both procedures are attached, only one of the
procedures need to be performed.
LCD_DCR_V313.zip
LCD_MemoryCardUpdate.pdf
LCD_SerialUpdate.pdf

    ** FILE THIS SERVICE BULLETIN WITH YOUR SERVICE MANUAL
                 NOTE(**) : INTERCHANGEABILITY CODE                                                              KEY-WORD CODE
        Parts                     Set
        Original           Early        Original or new parts may be used in early or late production sets.
                                                                                                              1. To improve performance
    A
                                        Use original parts until exhausted, then stock new parts.             2. To improve productivity
        New                Late

        Original           Early        Original parts may be used in early production sets only.             3. To improve reliability
    B                                   New parts may be used in early or late production sets.
                                        Use original parts where possible, then stock new parts.
        New                Late                                                                               4. Change of material or dimension

        Original           Early        New parts only may be used in early or late production sets.          5. Addition
    C
                                        Stock new parts.
        New                Late                                                                               6. Deletion

        Original           Early        Original parts only may be used in early production sets.             7. Correction
    D                                   New parts may be used in late production sets only.
                                        Stock original and new parts.
        New                Late

                                                                     CHIEF ENGINEER ,
