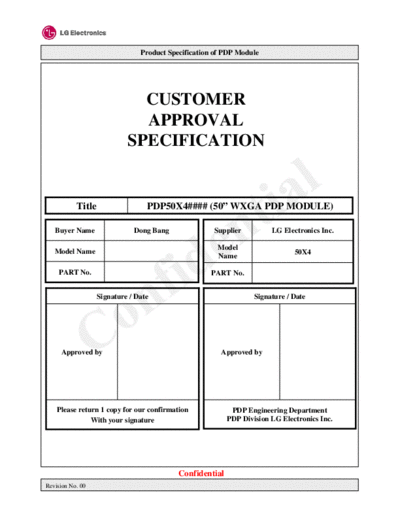

Image preview - the first page of the document
LG_Plasma_Panel_PDP50X4_[SM][DS]


>> Download LG_Plasma_Panel_PDP50X4_[SM][DS] documenatation <<

Text preview - extract from the document
                                Product Specification of PDP Module




                              CUSTOMER
                              APPROVAL
                            SPECIFICATION


           Title                  PDP50X4#### (50" WXGA PDP MODULE)

   Buyer Name                 Dong Bang              Supplier          LG Electronics Inc.

                                                      Model
   Model Name                                                                 50X4
                                                      Name

    PART No.                                        PART No.


                   Signature / Date                               Signature / Date




     Approved by                                       Approved by




    Please return 1 copy for our confirmation              PDP Engineering Department
               With your signature                        PDP Division LG Electronics Inc.




                                           Confidential
Revision No. 00
                         Product Specification of PDP Module




                            Record of Revisions

           Revision   Effective
                                                   Comments
             No.        Date




                                    Confidential
Revision No. 00
                                      Product Specification of PDP Module


 0. Warnings and Cautions
         WARNING indicates hazards that may lead to death or injury if ignored.
         CAUTION indicates hazards that may lead to injury or damage to property if ignored.




                        WARNING
 1)      This product uses a high voltage (450 V max.). Do not touch the circuitry of this product with your hands when
         power is supplied to the product or immediately after turning off the power. Be sure to confirm that the voltage
         is dropped to a sufficiently low level.
 2)      Do not supply a voltage higher than that specified to this product. This may damage the product and may cause a
         fire.
 3)      Do not use this product in locations where the humidity is extremely high, where it may be splashed with water,
         or where flammable materials surround it. Do not install or use the product in a location that does no satisfy the
         specified environmental conditions. This may damage the product and may cause a fire.
 4)      If a foreign substance (such as water, metal, or liquid) gets inside the product, immediately turn off the power.
         Continuing to use the products it may cause fire or electric shock.
 5)      If the product emits smoke, an abnormal smell, or makes an abnormal sound, immediately turn off the power. If
         noting is displayed or if the display goes out during use, immediately turn off the power. Continuing to use the
         product as it is may cause fire or electric shock.
 6)      Do not disconnect or connect the connector while power to the product is on. It takes some time for the voltage
         to drop to a sufficiently low level after the power has been turned off. Confirm that the voltage has dropped to a
         safe level before disconnecting or connecting the connector. Otherwise, this may cause fire, electric shock, or
         malfunction.
 7)      Do not pull out or insert the power cable from/to an outlet with wet hands. It may cause electric shock.
 8)      Do not damage or modify the power cable. It may cause fire or electric shock.
 9)      If the power cable is damaged, or if the connector is loose, do not use the product; otherwise, this can lead to fire
         or electric shock.
 10)     If the power connector or the connector of the power cable becomes dirty or dusty, wipe it with a dry cloth.
         Otherwise, this can lead to fire.




                                                     Confidential
Revision No. 00
                                      Product Specification of PDP Module




                         CAUTION
       General
 1)      Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an
         inclined surface. The product may fall off or fall over, causing injuries.

 2)      When moving the product, be sure to turn off the power and disconnect all the cables. While moving the
         product, watch your step. The product may be dropped or fall, leading to injuries of electric shock.

 3)      Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an
         inclined surface. The product may fall off or fall over, causing injuries.

 4)      Before disconnecting cable from the product, be sure to turn off the power. Be sure to hold the connector when
         disconnecting cables. Pulling a cable with excessive force may cause the core of the cable to be exposed or
         break the cable, and this can lead to fire or electric shock.

 5)      This product should be moved by two or more persons. If one person attempts to carry this product alone, he/she
         may be injured.

 6)      This product contains glass. The glass may break, causing injuries, if shock, vibration, heat, or distortion is
         applied to the product.

 7)      The temperature of the glass surface of the display may rise to 80
