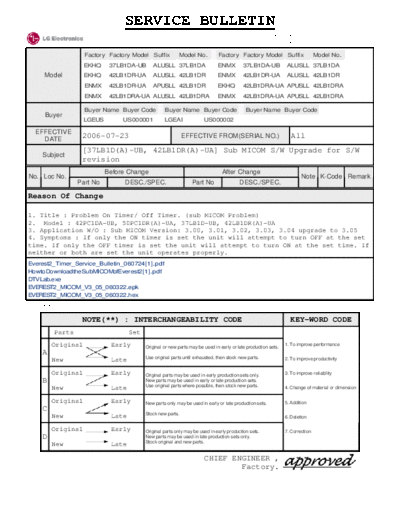

                                SERVICE BULLETIN
                                                                                                     No. : 0IVL20060068
                                                                                                     Date : 2006-07-23
                   Factory Factory Model Suffix           Model No.          Factory Factory Model Suffix                      Model No.
                   EKHQ     37LB1DA-UB       ALUSLL 37LB1DA                  ENMX         37LB1DA-UB            ALUSLL 37LB1DA
     Model         EKHQ     42LB1DR-UA       ALUSLL 42LB1DR                  ENMX         42LB1DR-UA            ALUSLL 42LB1DR
                   ENMX     42LB1DR-UA       APUSLL 42LB1DR                  EKHQ         42LB1DRA-UA APUSLL 42LB1DRA
                   ENMX     42LB1DRA-UA ALUSLL 42LB1DRA                      ENMX         42LB1DRA-UA APUSLL 42LB1DRA

                   Buyer Name Buyer Code          Buyer Name Buyer Code                    Buyer Name Buyer Code
     Buyer
                   LGEUS        US000001          LGEAI               US000002

  EFFECTIVE
    DATE
                 2006-07-23                                 EFFECTIVE FROM(SERIAL NO.)                            All
                 [37LB1D(A)-UB, 42LB1DR(A)-UA] Sub MICOM S/W Upgrade for S/W
    Subject
                 revision
                           Before Change                                       After Change
No. Loc No.                                                                                                            Note K-Code Remark
                Part No         DESC./SPEC.                     Part No                 DESC./SPEC.

Reason Of Change

1. Title : Problem On Timer/ Off Timer. (sub MICOM Problem)
2. Model : 42PC1DA-UB, 50PC1DR(A)-UA, 37LB1D-UB, 42LB1DR(A)-UA
3. Application W/O : Sub MICOM Version: 3.00, 3.01, 3.02, 3.03, 3.04 upgrade to 3.05
4. Symptoms : If only the ON timer is set the unit will attempt to turn OFF at the set
time. If only the OFF timer is set the unit will attempt to turn ON at the set time. If
neither or both are set the unit operates properly.
Everest2_Timer_Service_Bulletin_060724[1].pdf
HowtoDownloadtheSubMICOMofEverest2[1].pdf
DTVLab.exe
EVEREST2_MICOM_V3_05_060322.epk
EVEREST2_MICOM_V3_05_060322.hex

    ** FILE THIS SERVICE BULLETIN WITH YOUR SERVICE MANUAL
