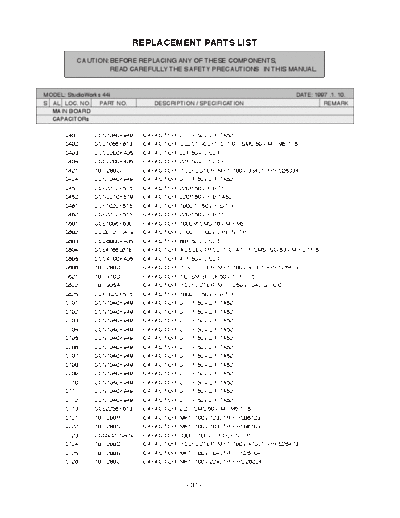

Image preview - the first page of the document
>> Download CS480_9 documenatation <<
Text preview - extract from the document
REPLACEMENT PARTS LIST
CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,
READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
MAIN BOARD
CAPACITORs
C401 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C402 0CE1056K618 CAPACITOR, ELECTROLYTIC, 1.0U SMS 50V M FM5 TP5
C403 0CC2200K405 CAPACITOR, 22P 50V J SL TP
C404 0CC2200K405 CAPACITOR, 22P 50V J SL TP
C421 181-288G CAPACITOR, POLYESTER, MKT, 100V 334JTR PHS26334
C424 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C451 0CK2210K515 CAPACITOR, 220P 50V K B TS
C452 0CN2210K519 CAPACITOR, 220P 50V K B TA52
C461 0CK1020K515 CAPACITOR, 1000PF 50V K B TR
C462 0CK2210K515 CAPACITOR, 220P 50V K B TS
C601 0CE1086F630 CAPACITOR, 1000M SMS 16V M FM5
C602 0CQ2721N419 CAPACITOR, 2700PF 100V J PE NI TP
C603 0CC6800K405 CAPACITOR, 68P 50V J SL TP
C604 0CE4766L618 CAPACITOR, AL.ELECTROLYTIC, 47 UF SMS, SG 63V M FL TP 5
C605 0CC4700K405 CAPACITOR, 47P 50V J SL TP
C606 181-288D CAPACITOR, POLYESTER, MKT, 100V 473JTR PHS26473
C621 181-310D CAPACITOR, CE, SM-BP(D) 50V 1UF TP5
C622 181-305A CAPACITOR, POLYESTER, MPP, 250V 104J S=10.0
C625 0CK1020K515 CAPACITOR, 1000PF 50V K B TR
C701 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C702 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C703 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C704 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C705 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C706 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C707 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C708 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C709 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C710 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C711 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C712 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C713 0CE2256K618 CAPACITOR, 2.2U SMS 50V M FM5 TP5
C721 181-288R CAPACITOR, MKT, 100V 123JTR PHS86123
C722 181-288N CAPACITOR, MKT, 100V 103JTR PHS86103
C723 0CQ3321N419 CAPACITOR, 3300P 100V J POLY NI TP
C724 181-288D CAPACITOR, POLYESTER, MKT, 100V 473JTR PHS26473
C725 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C726 181-288C CAPACITOR, MKT, 100V 224JTR PHS 26224
- 31 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
C731 0CK1020K515 CAPACITOR, 1000PF 50V K B TR
C732 0CE1056K618 CAPACITOR, ELECTROLYTIC, 1.0U SMS 50V M FM5 TP5
C733 0CK1020K515 CAPACITOR, 1000PF 50V K B TR
C734 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C735 0CE4766H618 CAPACITOR, 47M SMS 25V M FL TP(5)
C736 0CE2256K618 CAPACITOR, 2.2U SMS 50V M FM5 TP5
C737 0CN1010K519 CAPACITOR, 100P 50V K B TA52
C740 0CK4710W515 CAPACITOR, 470PF 500V K B TR
C741 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C742 181-314K CAPACITOR, SMSHR, 200V 47UF 16X25
C743 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C751 0CC4710K405 CAPACITOR, 470P 50V J SL TP
C752 0CE1076F618 CAPACITOR, 100UF SMS 16V M TP(5)
C753 0CQ1021N419 CAPACITOR, 1000P 100V J POLY NI TP
C755 181-305H CAPACITOR, MPP, 250V 394J S=10.0
C756 181-309P CAPACITOR, BUP, 1.6KV 512J S=20.0 353P
C757 181-306M CAPACITOR, PU, 800V 822J S=10.0
C758 181-302Q CAPACITOR, PL, 200V 153J S=10.0 143F
C759 0CK10201515 CAPACITOR, 1000P 1KV K B TS
C761 0CE4766F618 CAPACITOR, 47U SMS 16V M FM5 TP5
C762 181-288D CAPACITOR, POLYESTER, MKT, 100V 473JTR PHS26473
C763 0CQZTBU002F CAPACITOR, POLYESTER, MPE, 100V 335PF (26*19*12*17.5)
C764 181-305G CAPACITOR, MPP, 250V 334J S=10.0
C765 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C766 0CK2220K515 CAPACITOR, 2200P 50V K B TS
C771 181-305X CAPACITOR, MPP, 250 304J S=10.0
C772 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C773 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C776 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C781 0CE2266K618 CAPACITOR, 22M SMS 50V M FM5 TP(5)
C782 0CE1056K618 CAPACITOR, ELECTROLYTIC, 1.0U SMS 50V M FM5 TP5
C783 0CK1030W510 CAPACITOR, 0.01U 500V K B S
C784 0CE2266K618 CAPACITOR, 22M SMS 50V M FM5 TP(5)
C785 0CE4756P618 CAPACITOR, 4.7U SMS 160V M FM5 TP5
C786 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C787 0CE1056K618 CAPACITOR, ELECTROLYTIC, 1.0U SMS 50V M FM5 TP5
C788 0CE1056K618 CAPACITOR, ELECTROLYTIC, 1.0U SMS 50V M FM5 TP5
C789 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C791 0CK1030W510 CAPACITOR, 0.01U 500V K B S
C792 0CE1056R618 CAPACITOR, 1.0U SMS 250V M FM5 TP5
C793 0CE2266K618 CAPACITOR, 22M SMS 50V M FM5 TP(5)
C901 0CBZTBU002B CAPACITOR, POLYPROPYLENE, BULK, PCX2 335 474K
or C901 181-192D CAPACITOR, KNB, 1531 0.47MF/250V (ISKRA)
or C901 181-500D CAPACITOR, MKT, 335 10474M PHILIPS
C903 181-311C CAPACITOR, DE7150-477F472M VA1-KC
C904 181-311C CAPACITOR, DE7150-477F472M VA1-KC
- 32 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
C908 181-296F CAPACITOR, 330UF 400V (30*40)
C909 0CN5610K519 CAPACITOR, 560P 50V K B TA52
C911 0CE337CH638 CAPACITOR, 330UF SHL 25V M FM5 TP5
C912 0CE335BN638 CAPACITOR, 3.3000UF KME 100V M FM5 TP5
C913 0CE1076H618 CAPACITOR, 100M SMS 25V M FM5 TP(5)
C914 0CQ1521N419 CAPACITOR, 1500PF 100V J PE NI TP
C915 0CE105BN638 CAPACITOR, 1.0U KME 100V M FM5 TP5
C916 181-308N CAPACITOR, PL, 630V 103J S=10.0 061K
C917 0CK56101515 CAPACITOR, 560P 1KV K B TS
C921 181-311C CAPACITOR, DE7150-477F472M VA1-KC
C932 0CE107CP630 CAPACITOR, 100UF SHL 160V M FM5 BULK
C934 0CE227CN630 CAPACITOR, 220U SHL 100V M FM5
C935 0CE108CH630 CAPACITOR, 1000UF SHL 25V M FM5 BULK
C936 0CE1086F630 CAPACITOR, 1000M SMS 16V M FM5
C937 0CE4766L618 CAPACITOR, AL.ELECTROLYTIC, 47 UF SMS, SG 63V M FL TP 5
C943 0CK1030W510 CAPACITOR, 0.01U 500V K B S
C944 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C945 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C946 0CE477CF618 CAPACITOR, 470UF SHL 16V M FL TP5
C947 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C948 0CE1086F630 CAPACITOR, 1000M SMS 16V M FM5
C951 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C952 0CE1056K618 CAPACITOR, ELECTROLYTIC, 1.0U SMS 50V M FM5 TP5
C953 0CE2266P630 CAPACITOR, 22U SMS 160V M FM5
DIODEs
D411 0DL150320AA LED, L-1503EB/2GD
D412 0DL150320AA LED, L-1503EB/2GD
D413 0DL150320AA LED, L-1503EB/2GD
D414 0DL150320AA LED, L-1503EB/2GD
D415 0DL150320AA LED, L-1503EB/2GD
D416 0DL150320AA LED, L-1503EB/2GD
D421 0DZ510009AB DIODE, ZENER, MTZ5.1B, TP (52MM), ROHM
D422 0DZ510009AB DIODE, ZENER, MTZ5.1B, TP (52MM), ROHM
D423 0DZ510009AB DIODE, ZENER, MTZ5.1B, TP (52MM), ROHM
D461 0DZ510009AB DIODE, ZENER, MTZ5.1B, TP (52MM), ROHM
D462 0DZ510009AB DIODE, ZENER, MTZ5.1B, TP (52MM), ROHM
D621 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D701 0DD300009AC DIODE, RU3AMV(1) TP, SANKEN
D713 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D731 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D732 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D733 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D734 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D735 0DD100009DE DIODE, RGP10G, TP (52MM), GI
- 33 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
D736 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D737 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D738 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D741 0DD400000AB DIODE, RU4DS, SANKEN
D742 0DD400000AE DIODE, RG4A, SANKEN
D751 0DZ820009AA DIODE, ZENER, MTZ8.2B, TP (52MM), ROHM
D761 0DZ150009BD DIODE, ZENER, MTZ15B, TP (52MM), ROHM
D771 0DZ150009BD DIODE, ZENER, MTZ15B, TP (52MM), ROHM
D783 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D791 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D793 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D794 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D795 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D796 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D797 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D798 0DZ110009AA DIODE, ZENER, MTZ 11B, TP (52MM), ROHM
D901 0DD260000BD DIODE, BRIDGE, D2SBA60 SHINDENKEN
D905 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D906 0DZ820009AA DIODE, ZENER, MTZ8.2B, TP (52MM), ROHM
D907 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D908 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D909 0DD100009DD DIODE, RGP10D, TP (52MM), GI
D911 0DD100009AH DIODE, ES1FV(1) TP, SANKEN
D912 0DD220009AA DIODE, RG2A2 TP, SANKEN
D931 0DD200009AH DIODE, RU2AMV(1) TP, SANKEN
D932 0DD410000AF DIODE, RL4A, LF-L1 SANKEN
D933 0DD540200AA DIODE, UF5402 (19C2-409), GI
D936 0DD540200AA DIODE, UF5402 (19C2-409), GI
D937 0DD100009DE DIODE, RGP10G, TP (52MM), GI
D941 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D942 0DL571300AA LED (LIGHT EMITTED DIODE), SPR571MVW3, ROHM
D951 0DZ510009AB DIODE, ZENER, MTZ5.1B, TP (52MM), ROHM
ICs
IC401 167-094L IC, HIC, PC68HC705BD7, CS480 OTP MICOM
IC402 0IKE704200B IC, KEC, KIA7042P(AT) TO-92 4.2V RESET
IC403 0IAL240410A IC, ATMEL, AT24C04-10PC 8D EEPROM (4K, IIC)
or IC403 0INS240400A IC, NATIONAL SEMICONDUCTOR, NM24C04N8D, EEPROM (4K, IIC)
or IC403 0IXI240400B IC, XICORX, 24C04P 8D, EEPROM (4K, IIC)
IC601 0IPH486600B IC, TDA4866 V3, V4
IC701 0IPH485800A IC, PHILIPS, TDA4858
IC901 0ISK571700A IC, SANKEN, STR-5717
IC931 0IGS780500A IC, GOLDSTAR ELECTRON, GL7805 REGULATOR
or IC931 0IKE780500K IC, KEC, KIA7805PI 3P (TO-220IS) 5V, 1A
- 34 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
COILs & COREs
L483 125-155J CORE (CIRC), BEAD (BFS2550A0FG), SAMHWA
L484 125-155J CORE (CIRC), BEAD (BFS2550A0FG), SAMHWA
L701 150-518S COIL, CHOKE 14X20 180UH
L702 125-155C CORE (CIRC), BEAD (BFD3514R2FG), SAMHWA
L731 125-155J CORE (CIRC), BEAD (BFS2550A0FG), SAMHWA
L732 150-985G COIL, CHOKE 8*11, 10MH, R/CENTER
L733 150-L05C COIL, LINEARITY 10UH
L751 150-518N COIL, CHOKE 180UH (140X20)
L901 150-A50C FILTER (CIRC), LINE L/FILTER, SQ2930 28MH MIN, CS587
L902 150-509A COIL, LINE FILTER 2*1.8MH
L903 125-155C CORE (CIRC), BEAD (BFD3514R2FG), SAMHWA
L932 0LA2200K139 INDUCTOR, AXIAL LEAD, 220 UH 10% A 4.0 X 10.5 TA52
TRANSISTORs
Q411 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q412 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q413 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q414 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q415 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q416 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q417 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q451 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q452 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q453 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q621 0TR320609AB TRANSISTOR, KTC3206-Y, TP (KTC2229), KEC
Q701 0TR320209AA TRANSISTOR, KTC3202-TP-Y (KTC1959), KEC
Q702 0TR320209AA TRANSISTOR, KTC3202-TP-Y (KTC1959), KEC
Q703 0TR127009AA TRANSISTOR, KTA1270-Y (KTA562TM) TP, KEC
Q704 0TF730000AA FET, IRFS730 BK SAMSUNG 400 3.5A TO
Q720 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q721 0TR200009AB TRANSISTOR, KTC200-Y, TP, KEC
Q722 0TR949009BA TRANSISTOR, 2SA949-Y TP, TOSHIBA
Q724 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q729 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q730 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q731 0TR514900AA TRANSISTOR, 2SC5149, TOSHIBA
Q740 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q741 0TR126609AA TRANSISTOR, KTA1266-Y (KTA1015) TP, KEC
Q742 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q743 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q753 0TR141400AC TRANSISTOR, KTD1414 (TO22OIS) CUTTING BK KE
Q754 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q755 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q756 0TR102609AC TRANSISTOR, KTC1026-Y (KTC2230A) TP
Q761 0TF630000AA FET (FIELD EFFECT TRANSISTOR), YTAF 630, TOSHIBA
- 35 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
or Q761 0TF630000BA FET (FIELD EFFECT TRANSISTOR), IRFS 630, SAMSUNG
Q762 0TR320709AA TRANSISTOR, KTC3207, TP (KTC2482), KEC
Q771 0TF630000AA FET (FIELD EFFECT TRANSISTOR), YTAF 630, TOSHIBA
or Q771 0TF630000BA FET (FIELD EFFECT TRANSISTOR), IRFS 630, SAMSUNG
Q772 0TR320709AA TRANSISTOR, KTC3207, TP (KTC2482), KEC
Q901 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q902 0TR200009AB TRANSISTOR, KTC200-Y, TP, KEC
Q932 0TR127309AA TRANSISTOR, KTA1273-Y TP (KTA966A) , KEC
Q934 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q935 0TR127309AA TRANSISTOR, KTA1273-Y TP (KTA966A), KEC
Q936 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q941 0TR320209AA TRANSISTOR, KTC3202-TP-Y (KTC1959), KEC
Q942 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
Q943 0TR319809AA TRANSISTOR, KTC3198-TP-Y (KTC1815), KEC
RESISTORs
R401 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R402 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R403 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R404 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R405 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R406 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R407 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R408 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R409 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R410 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R411 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R412 0RD5600F609 RESISTOR, FIXED CARBON FILM, 560 1/6W 5 TA52
R413 0RD5600F609 RESISTOR, FIXED CARBON FILM, 560 1/6W 5 TA52
R414 0RD5600F609 RESISTOR, FIXED CARBON FILM, 560 1/6W 5 TA52
R415 0RD5600F609 RESISTOR, FIXED CARBON FILM, 560 1/6W 5 TA52
R416 0RD5600F609 RESISTOR, FIXED CARBON FILM, 560 1/6W 5 TA52
R417 0RD5600F609 RESISTOR, FIXED CARBON FILM, 560 1/6W 5 TA52
R418 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R419 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R420 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R421 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R422 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R423 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R424 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R425 0RD3302F609 RESISTOR, FIXED CARBON FILM, 33K 1/6W 5% TA52
R427 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R428 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R429 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R430 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R431 0RD1202F609 RESISTOR, FIXED CARBON FILM, 12K 1/6W 5 TA52
- 36 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
R441 0RD1000F509 RESISTOR, FIXED CARBON FILM, 100 1/6W 2 TA52
R442 0RD1000F509 RESISTOR, FIXED CARBON FILM, 100 1/6W 2 TA52
R443 0RD1001F509 RESISTOR, FIXED CARBON FILM, 1K 1/6W 2 TA52
R444 0RD1001F509 RESISTOR, FIXED CARBON FILM, 1K 1/6W 2 TA52
R445 0RD9100F509 RESISTOR, FIXED CARBON FILM, 910 1/6W 2 TA52
R446 0RD5600F509 RESISTOR, FIXED CARBON FILM, 560 1/6W 2 TA52
R447 0RD1001F509 RESISTOR, FIXED CARBON FILM, 1K 1/6W 2 TA52
R448 0RD6800F509 RESISTOR, FIXED CARBON FILM, 680 1/6W 2 TA52
R451 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R452 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R453 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R454 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R455 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R456 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R457 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R458 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R459 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R461 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R462 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R463 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R464 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R471 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R472 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R473 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R479 0RD2200F609 RESISTOR, FIXED CARBON FILM, 220 1/6W 5 TA52
R601 0RN0101H609 RESISTOR, 1.0 1/2W 5 TA52
R602 0RD0102H609 RESISTOR, FIXED CARBON FILM, 10 1/2W 5 TA52
R603 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R604 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R605 0RD1802F609 RESISTOR, FIXED CARBON FILM, 18K 1/6W 5 TA52
R606 0RN0101H609 RESISTOR, 1.0 1/2W 5 TA52
R607 0RD1801F609 RESISTOR, FIXED CARBON FILM, 1.8K 1/6W 5 TA52
R608 0RD1000G609 RESISTOR, FIXED CARBON FILM, 100 1/4W 5 TA52
R609 0RD2200H609 RESISTOR, FIXED CARBON FILM, 220 1/2W 5 TA52
R610 0RD0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R621 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R622 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R623 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R624 0RD1502G609 RESISTOR, FIXED CARBON FILM, 15K 1/4W 5 TA52
R625 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R701 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R702 0RD1202F609 RESISTOR, FIXED CARBON FILM, 12K 1/6W 5 TA52
R703 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R704 0RD1202F609 RESISTOR, FIXED CARBON FILM, 12K 1/6W 5 TA52
R705 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R706 0RD1502F609 RESISTOR, FIXED CARBON FILM, 15K 1/6W 5 TA52
- 37 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
R707 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R708 0RD2402F609 RESISTOR, FIXED CARBON FILM, 24K 1/6W 5 TA52
R709 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R710 0RD1202F609 RESISTOR, FIXED CARBON FILM, 12K 1/6W 5 TA52
R711 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R712 0RD1202F609 RESISTOR, FIXED CARBON FILM, 12K 1/6W 5 TA52
R713 0RD2702F609 RESISTOR, FIXED CARBON FILM, 27K 1/6W 5 TA52
R714 0RD2702F609 RESISTOR, FIXED CARBON FILM, 27K 1/6W 5 TA52
R715 0RD2702F609 RESISTOR, FIXED CARBON FILM, 27K 1/6W 5 TA52
R716 0RD2702F609 RESISTOR, FIXED CARBON FILM, 27K 1/6W 5 TA52
R717 0RD1502F609 RESISTOR, FIXED CARBON FILM, 15K 1/6W 5 TA52
R718 0RD2702F609 RESISTOR, FIXED CARBON FILM, 27K 1/6W 5 TA52
R719 0RD3303F609 RESISTOR, FIXED CARBON FILM, 330K 1/6W 5 TA52
R721 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R722 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R723 0RN1001F409 RESISTOR, FIX METAL FILM, 1K 1/6W 1% TA52
R724 0RN1801F409 RESISTOR, FIX METAL FILM, 1.80K 1/6W 1% TA52
R725 0RD8201F609 RESISTOR, FIXED CARBON FILM, 8.2K 1/6W 5 TA52
R726 0RD2002F609 RESISTOR, FIXED CARBON FILM, 20K 1/6W 5 TA52
R727 0RD8202F609 RESISTOR, FIXED CARBON FILM, 82K 1/6W 5 TA52
R728 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R729 0RD5102F609 RESISTOR, FIXED CARBON FILM, 51K 1/6W 5 TA52
R731 0RD1502F609 RESISTOR, FIXED CARBON FILM, 15K 1/6W 5 TA52
R732 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R733 0RD2002F609 RESISTOR, FIXED CARBON FILM, 20K 1/6W 5 TA52
R734 0RD5602F609 RESISTOR, FIXED CARBON FILM, 56K 1/6W 5 TA52
R735 0RD1801F609 RESISTOR, FIXED CARBON FILM, 1.8K 1/6W 5 TA52
R736 0RD2201G609 RESISTOR, FIXED CARBON FILM, 2.2K 1/4W 5 TA52
R737 0RD0102F609 RESISTOR, FIXED CARBON FILM, 10 1/6W 5 TA52
R738 0RD2002F609 RESISTOR, FIXED CARBON FILM, 20K 1/6W 5 TA52
R739 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R741 0RD1803F609 RESISTOR, FIXED CARBON FILM, 180K 1/6W 5 TA52
R742 0RD3001F609 RESISTOR, FIXED CARBON FILM, 3.0K 1/6W 5 TA52
R743 0RD3303F609 RESISTOR, FIXED CARBON FILM, 330K 1/6W 5 TA52
R744 0RD6803F609 RESISTOR, FIXED CARBON FILM, 680K 1/6W 5 TA52
R745 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R746 0RD3303F609 RESISTOR, FIXED CARBON FILM, 330K 1/6W 5 TA52
R747 0RD3001F609 RESISTOR, FIXED CARBON FILM, 3.0K 1/6W 5 TA52
R748 0RD4700F609 RESISTOR, FIXED CARBON FILM, 470 1/6W 5 TA52
R750 0RN0750H609 RESISTOR, FIX METAL FILM, 0.75 1/2W 5 TA52
R751 0RN0750H609 RESISTOR, FIX METAL FILM, 0.75 1/2W 5 TA52
R752 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R753 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R754 0RD0222F609 RESISTOR, FIXED CARBON FILM, 22 1/6W 5 TA52
- 38 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
R755 0RD0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R756 0RS3300J607 RESISTOR, FIX METAL FILM, OXID330 OHM 1 W 5% TA62
R758 0RD3301F609 RESISTOR, FIXED CARBON FILM, 3.3K 1/6W 5 TA52
R759 0RD0222F609 RESISTOR, FIXED CARBON FILM, 22 1/6W 5 TA52
R760 0RD1200Q609 RESISTOR, FIXED CARBON FILM, 120 1/4W(3 5% TA52
R761 0RD6801F609 RESISTOR, FIXED CARBON FILM, 6.8K 1/6W 5 TA52
R762 0RD8200G609 RESISTOR, FIXED CARBON FILM, 820 1/4W 5 TA52
R763 0RD3900F609 RESISTOR, FIXED CARBON FILM, 390 1/6W 5 TA52
R764 0RD7501F609 RESISTOR, FIXED CARBON FILM, 7.5K 1/6W 5 TA52
R765 0RD2200F609 RESISTOR, FIXED CARBON FILM, 220 1/6W 5 TA52
R766 0RD1802G609 RESISTOR, FIXED CARBON FILM, 18K 1/4W 5 TA52
R768 0RD1801F609 RESISTOR, FIXED CARBON FILM, 1.8K 1/6W 5 TA52
R769 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R770 0RD2002F609 RESISTOR, FIXED CARBON FILM, 20K 1/6W 5 TA52
R771 0RD0222F609 RESISTOR, FIXED CARBON FILM, 22 1/6W 5 TA52
R772 0RD1503H609 RESISTOR, FIXED CARBON FILM, 150K 1/2W 5 TA52
R773 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R774 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R775 0RD3301F609 RESISTOR, FIXED CARBON FILM, 3.3K 1/6W 5 TA52
R776 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R777 0RS0101J607 RESISTOR, FIX METAL FILM, OXID1 OHM 1 W 5% TA62
R778 0RS0101J607 RESISTOR, FIX METAL FILM, OXID1 OHM 1 W 5% TA62
R779 0RD2201H609 RESISTOR, FIXED CARBON FILM, 2.2K 1/2W 5 TA52
R780 0RS1003J609 RESISTOR, FIX METAL FILM, OXID100K 1W 5% TA52
R781 0RD0471H609 RESISTOR, FIXED CARBON FILM, 4.7 1/2W 5 TA52
R782 0RD1503H609 RESISTOR, FIXED CARBON FILM, 150K 1/2W 5 TA52
R783 0RD2202F609 RESISTOR, FIXED CARBON FILM, 22K 1/6W 5 TA52
R784 0RD0471H609 RESISTOR, FIXED CARBON FILM, 4.7 1/2W 5 TA52
R785 0RD3301F609 RESISTOR, FIXED CARBON FILM, 3.3K 1/6W 5 TA52
R786 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R787 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R788 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R789 0RD2200H609 RESISTOR, FIXED CARBON FILM, 220 1/2W 5 TA52
R790 0RN0470H609 RESISTOR, FIX METAL FILM, 0.47 1/2W 5 TA52
R791 0RD2002F509 RESISTOR, FIXED CARBON FILM, 20K 1/6W 2 TA52
R792 0RD4702F509 RESISTOR, FIXED CARBON FILM, 47K 1/6W 2% TA52
R793 0RD3602F509 RESISTOR, FIXED CARBON FILM, 36K 1/6W 2% TA52
R794 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R795 0RD3003F609 RESISTOR, FIXED CARBON FILM, 300K 1/6W 5 TA52
R796 0RD1501F609 RESISTOR, FIXED CARBON FILM, 1.5K 1/6W 5 TA52
R797 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R798 0RD9102F609 RESISTOR, FIXED CARBON FILM, 91K 1/6W 5 TA52
R811 0RN0470H609 RESISTOR, FIX METAL FILM, 0.47 1/2W 5 TA52
R813 0RN0470H609 RESISTOR, FIX METAL FILM, 0.47 1/2W 5 TA52
R824 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R825 0RD7502F609 RESISTOR, FIXED CARBON FILM, 75K 1/6W 5 TA52
- 39 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
R827 0RD6202F609 RESISTOR, FIXED CARBON FILM, 62K 1/6W 5 TA52
R828 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R829 0RD2702F609 RESISTOR, FIXED CARBON FILM, 27K 1/6W 5 TA52
R830 0RD3902F609 RESISTOR, FIXED CARBON FILM, 39K 1/6W 5 TA52
R832 0RD5101F609 RESISTOR, FIXED CARBON FILM, 5.1K 1/6W 5 TA52
R833 0RD1201F609 RESISTOR, FIXED CARBON FILM, 1.2K 1/6W 5 TA52
R841 0RD8202G609 RESISTOR, FIXED CARBON FILM, 82K 1/4W 5 TA52
R842 0RD4703F609 RESISTOR, FIXED CARBON FILM, 470K 1/6W 5 TA52
R843 0RD1202G609 RESISTOR, FIXED CARBON FILM, 12K 1/4W 5 TA52
R846 0RD1503F609 RESISTOR, FIXED CARBON FILM, 150K 1/6W 5 TA52
R847 0RD5601F609 RESISTOR, FIXED CARBON FILM, 5.6K 1/6W 5 TA52
R848 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R849 0RD6201F609 RESISTOR, FIXED CARBON FILM, 6.2K 1/6W 5 TA52
R851 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R853 0RD2000F609 RESISTOR, FIXED CARBON FILM, 200 1/6W 5 TA52
R854 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R855 0RD2201F609 RESISTOR, FIXED CARBON FILM, 2.2K 1/6W 5 TA52
R856 0RD1201F609 RESISTOR, FIXED CARBON FILM, 1.2K 1/6W 5 TA52
R857 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R861 0RN0470H609 RESISTOR, FIX METAL FILM, 0.47 1/2W 5 TA52
R871 0RD1004F609 RESISTOR, FIXED CARBON FILM, 1.0M 1/6W 5 TA52
R872 0RD1003F609 RESISTOR, FIXED CARBON FILM, 100K 1/6W 5 TA52
R873 0RD1003F609 RESISTOR, FIXED CARBON FILM, 100K 1/6W 5 TA52
R901 0RD4703H609 RESISTOR, FIXED CARBON FILM, 470K 1/2W 5 TA52
R902 180-142V RESISTOR, VARIABLE, CEMENT RWR 5W 4.7J
R903 0RD5603H609 RESISTOR, FIXED CARBON FILM, 560K 1/2W 5 TA52
R904 0RD2202H609 RESISTOR, FIXED CARBON FILM, 22K 1/2W 5 TA52
R905 0RD2202H609 RESISTOR, FIXED CARBON FILM, 22K 1/2W 5 TA52
R906 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R907 0RD6800F509 RESISTOR, FIXED CARBON FILM, 680 1/6W 2 TA52
R911 0RS0152J607 RESISTOR, FIX METAL FILM, OXID15 OHM 1 W 5% TA62
R912 0RB0270K607 RESISTOR, FIX WIRE-WOUND, PREC0.27OHM 2 W 5% TA62
R915 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R916 0RD0201H609 RESISTOR, FIXED CARBON FILM, 2.0 1/2W 5 TA52
R917 0RD0102F609 RESISTOR, FIXED CARBON FILM, 10 1/6W 5 TA52
R918 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R921 0RD7502H609 RESISTOR, FIXED CARBON FILM, 75K 1/2W 5 TA52
R931 0RD1003H609 RESISTOR, FIXED CARBON FILM, 100K 1/2W 5 TA52
R933 0RD4700F609 RESISTOR, FIXED CARBON FILM, 470 1/6W 5 TA52
R934 0RD8200H609 RESISTOR, FIXED CARBON FILM, 820 1/2W 5 TA52
R935 0RD8200H609 RESISTOR, FIXED CARBON FILM, 820 1/2W 5 TA52
R936 0RD3902G609 RESISTOR, FIXED CARBON FILM, 39K 1/4W 5 TA52
R937 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R938 0RD4700F609 RESISTOR, FIXED CARBON FILM, 470 1/6W 5 TA52
R939 0RD1800H609 RESISTOR, FIXED CARBON FILM, 180 1/2W 5 TA52
R941 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
- 40 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
R951 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
R952 0RD8200H609 RESISTOR, FIXED CARBON FILM, 820 1/2W 5 TA52
R953 0RD1201H609 RESISTOR, FIXED CARBON FILM, 1.2K 1/2W 5 TA52
R954 0RD1001F609 RESISTOR, FIXED CARBON FILM, 1.0K 1/6W 5 TA52
R955 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R956 0RD4701F609 RESISTOR, FIXED CARBON FILM, 4.7K 1/6W 5 TA52
VR705 180-038K RESISTOR, VARIABLE, EVM-EGS AOOB24
VR826 180-038N RESISTOR, VARIABLE, EVM-EGS AOOB15
VR831 6110T9H001E VOLUME, 9PHI, B5K, F20, NC, SINGLE
VR842 180-038H RESISTOR, VARIABLE, EVM-EGS AOOB53
VR850 180-038H RESISTOR, VARIABLE, EVM-EGS AOOB53
VR852 6110T9H001F VOLUME, 9PHI, B20K, F20, NC, SINGLE
OTHERs
#F901 430-858A METAL, FUSE, HOLDER TAP (05.2)
or #F901 430-858C METAL, AFC-520 (BAEEUN)
F901 131-040C FUSE, HBC 250V 3.15A UL/S TRIAD
E2 366-167A PIN, BW-501S (17MM)
E7 366-167A PIN, BW-501S (17MM)
P401 366-921E WAFER, IL-G 6 (2.5S)
P701 366-139A PIN, BW-706 (BAEEUN)
P702 366-921H WAFER, IL-G 9 (2.5S)
P703 366-921H WAFER, IL-G 9 (2.5S)
P902 366-921K WAFER, IL-G 11 (2.5S)
P903 366-112B PIN, BW-502L(BAEEUN)
PG101 385-141A METAL, GROUND
PG102 385-141A METAL, GROUND
RL901 141-027B RELAY, JW1FH-DC12V/AJW44113 (MEC)
or RL901 141-037A RELAY, OMI-SS-112L
SW431 140-058B SWITCH, TACT, EVQ PB2 05K (TP) 160GF
SW432 140-058B SWITCH, TACT, EVQ PB2 05K (TP) 160GF
SW433 140-058B SWITCH, TACT, EVQ PB2 05K (TP) 160GF
SW434 140-058B SWITCH, TACT, EVQ PB2 05K (TP) 160GF
SW435 140-058D SWITCH, TACT, SKHV 10911A (7MM)
SW731 140-079A SWITCH, BAND, SELECTION (JRS-1301)
T701 6174Z-2001D FBT (FLY BACK TRANSFORMER), FMMPC11
T702 151-269K TRANSFORMER, HDT, 8MH MIN, PIN-TYPE
T901 6170TMZ014A TRANSFORMER, SMPS EER4042 16PIN (SC/NY) CS480
TH901 163-053C THERMISTOR, J502P53D140M220 (JAHWA)
or TH901 163-067B THERMISTOR, ECPBC140M290
X401 156-005B CRYSTAL, 4.0MHZ (CL.15P)
- 41 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
VIDEO BOARD
CAPACITORs
C301 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C302 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C303 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C304 0CE4766F618 CAPACITOR, 47U SMS 16V M FM5 TP5
C305 0CE4766F618 CAPACITOR, 47U SMS 16V M FM5 TP5
C306 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C307 0CE1066K618 CAPACITOR, 10M SMS 50V M FM5 TP(5)
C311 0CE1066K618 CAPACITOR, 10M SMS 50V M FM5 TP(5)
C312 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C313 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C314 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C315 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C316 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C317 0CE4766F618 CAPACITOR, 47U SMS 16V M FM5 TP5
C342 0CC6800K415 CAPACITOR, 68P 50V J NP0 TP
C343 0CE4756P618 CAPACITOR, 4.7U SMS 160V M FM5 TP5
C344 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C345 0CE1056P618 CAPACITOR, 1U SMS 160V M FM5 TP5
C352 0CC5600K415 CAPACITOR, 56P 50V J NP0 TP
C353 0CE4756P618 CAPACITOR, 4.7U SMS 160V M FM5 TP5
C354 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C355 0CE1056P618 CAPACITOR, 1U SMS 160V M FM5 TP5
C362 0CC4700K415 CAPACITOR, 47P 50V J NP0 TP
C364 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C365 0CE1056P618 CAPACITOR, 1U SMS 160V M FM5 TP5
C366 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C371 181-288B CAPACITOR, MKT, 100V 104JTR PHS26104
C381 0CN1040K949 CAPACITOR, 0.1UF 50V Z F TA52
C382 0CK10201515 CAPACITOR, 1000P 1KV K B TS
C383 0CK10201515 CAPACITOR, 1000P 1KV K B TS
C384 0CK10201515 CAPACITOR, 1000P 1KV K B TS
C391 0CE107CP630 CAPACITOR, 106UF 100V M FM5 BULK
DIODEs
D301 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D302 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D303 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D304 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D305 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D306 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D331 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D332 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D333 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D341 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
- 42 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
D342 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D343 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D344 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D351 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D352 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D353 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D354 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D361 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D362 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D363 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D364 0DD131009AC DIODE, 1SS131, SWIT TP, ROHM
D391 0DZ200009AB DIODE, ZENER, MTZ20B, TP (52MM), ROHM
D392 0DZ240009BB DIODE, ZENER, MTZ24B, TP (52MM), ROHM
ICs
IC301 0IMO132810A IC, MC13281BP
IC302 0IKE780800B IC, KEC, KIA78L08BP (TA) TO-92 8V, 150MA
COILs & COREs
L321 125-155M CORE (CIRC), BEAD (BFD3550R2FG), SAMHWA
L327 125-155G CORE (CIRC), BEAD (BFS3550R2FG), SAMHWA
L328 125-155G CORE (CIRC), BEAD (BFS3550R2FG), SAMHWA
L329 125-155G CORE (CIRC), BEAD (BFS3550R2FG), SAMHWA
L341 0LA0221K119 INDUCTOR, AXIAL LEAD, 2.2UH K 2.3*3.4 TP
L343 125-155G CORE (CIRC), BEAD (BFS3550R2FG), SAMHWA
L351 0LA0221K119 INDUCTOR, AXIAL LEAD, 2.2UH K 2.3*3.4 TP
L353 125-155G CORE (CIRC), BEAD (BFS3550R2FG), SAMHWA
L361 0LA0221K119 INDUCTOR, AXIAL LEAD 2.2UH K 2.3*3.4 TP
L371 0LA2200K139 INDUCTOR, AXIAL LEAD, 220 UH 10% A 4.0 X 10.5 TA52
L372 971-0016 WIRE, TIN, HDC 0.60H
L373 971-0016 WIRE, TIN, HDC 0.60H
L375 125-155M CORE (CIRC), BEAD (BFD3550R2FG), SAMHWA
L381 125-155F CORE (CIRC), BEAD (BFD3580R2FG), SAMHWA
TRANSISTORs
Q331 0TR320609AB TRANSISTOR, KTC3206-Y, TP (KTC2229), KEC
Q332 0TR320609AB TRANSISTOR, KTC3206-Y, TP (KTC2229), KEC
Q333 0TR320609AB TRANSISTOR, KTC3206-Y, TP (KTC2229), KEC
Q341 0TR350200AA TRANSISTOR, 2SC3502, STICK SANYO
Q342 0TR131009BA TRANSISTOR, BFQ 131 TP, PHILIPS
Q343 0TR555109AB TRANSISTOR, 2N5551 TP
Q344 0TR540109AB TRANSISTOR, 2N5401 TP
Q351 0TR350200AA TRANSISTOR, 2SC3502, STICK SANYO
Q352 0TR131009BA TRANSISTOR, BFQ 131 TP, PHILIPS
- 43 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
Q353 0TR555109AB TRANSISTOR, 2N5551 TP
Q354 0TR540109AB TRANSISTOR, 2N5401 TP
Q361 0TR350200AA TRANSISTOR, 2SC3502, STICK SANYO
Q362 0TR131009BA TRANSISTOR, BFQ 131 TP, PHILIPS
Q363 0TR555109AB TRANSISTOR, 2N5551 TP
Q364 0TR540109AB TRANSISTOR, 2N5401 TP
Q391 0TR320609AB TRANSISTOR, KTC3206-Y, TP (KTC2229), KEC
RESISTORs
R301 0RD0752F609 RESISTOR, FIXED CARBON FILM, 75 1/6W 5% TA
R302 0RD0752F609 RESISTOR, FIXED CARBON FILM, 75 1/6W 5% TA
R303 0RD0752F609 RESISTOR, FIXED CARBON FILM, 75 1/6W 5% TA
R304 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R305 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R306 0RD1000F609 RESISTOR, FIXED CARBON FILM, 100 1/6W 5 TA52
R311 0RD8201F609 RESISTOR, FIXED CARBON FILM, 8.2K 1/6W 5 TA52
R312 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R316 0RD3300F609 RESISTOR, FIXED CARBON FILM, 330 1/6W 5 TA52
R317 0RD3300F609 RESISTOR, FIXED CARBON FILM, 330 1/6W 5 TA52
R318 0RD3300F609 RESISTOR, FIXED CARBON FILM, 330 1/6W 5 TA52
R321 0RD1500F609 RESISTOR, FIXED CARBON FILM, 150 1/6W 5 TA52
R322 0RD1500F609 RESISTOR, FIXED CARBON FILM, 150 1/6W 5 TA52
R323 0RD1500F609 RESISTOR, FIXED CARBON FILM, 150 1/6W 5 TA52
R327 0RD2200F609 RESISTOR, FIXED CARBON FILM, 220 1/6W 5 TA52
R328 0RD2200F609 RESISTOR, FIXED CARBON FILM, 220 1/6W 5 TA52
R329 0RD2200F609 RESISTOR, FIXED CARBON FILM, 220 1/6W 5 TA52
R331 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R332 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R333 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
R334 0RD3902F609 RESISTOR, FIXED CARBON FILM, 39K 1/6W 5 TA52
R335 0RD3902F609 RESISTOR, FIXED CARBON FILM, 39K 1/6W 5 TA52
R336 0RD3902F609 RESISTOR, FIXED CARBON FILM, 39K 1/6W 5 TA52
R337 0RD7502F609 RESISTOR, FIXED CARBON FILM, 75K 1/6W 5 TA52
R338 0RD7502F609 RESISTOR, FIXED CARBON FILM, 75K 1/6W 5 TA52
R339 0RD7502F609 RESISTOR, FIXED CARBON FILM, 75K 1/6W 5 TA52
R341 0RD0562F609 RESISTOR, FIXED CARBON FILM, 56 1/6W 5% TA52
R342 0RD0122F609 RESISTOR, FIXED CARBON FILM, 12 1/6W 5 TA52
R343 0RMZTSP001A RESISTOR, CEMENT RSR, 5W, 1.2K, J, P-TYPE
R344 0RN0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R345 0RD2701F609 RESISTOR, FIXED CARBON FILM, 2.7K 1/6W 5 TA52
R346 0RD1004F609 RESISTOR, FIXED CARBON FILM, 1.0M 1/6W 5 TA52
R347 0RN0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R348 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R351 0RD0562F609 RESISTOR, FIXED CARBON FILM, 56 1/6W 5% TA52
R352 0RD0122F609 RESISTOR, FIXED CARBON FILM, 12 1/6W 5 TA52
R353 0RMZTSP001A RESISTOR, CEMENT RSR, 5W,1.2K,J,P-TYPE
- 44 -
MODEL: StudioWorks 44i DATE: 1997 .1. 10.
S AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK
R354 0RN0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R355 0RD2701F609 RESISTOR, FIXED CARBON FILM, 2.7K 1/6W 5 TA52
R356 0RD1004F609 RESISTOR, FIXED CARBON FILM, 1.0M 1/6W 5 TA52
R357 0RN0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R358 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R361 0RD0562F609 RESISTOR, FIXED CARBON FILM, 56 1/6W 5% TA52
R362 0RD0122F609 RESISTOR, FIXED CARBON FILM, 12 1/6W 5 TA52
R363 0RMZTSP001A RESISTOR, CEMENT RSR, 5W, 1.2K, J, P-TYPE
R364 0RN0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R365 0RD2701F609 RESISTOR, FIXED CARBON FILM, 2.7K 1/6W 5 TA52
R366 0RD1004F609 RESISTOR, FIXED CARBON FILM, 1.0M 1/6W 5 TA52
R367 0RN0102G609 RESISTOR, FIXED CARBON FILM, 10 1/4W 5 TA52
R368 0RD1002F609 RESISTOR, FIXED CARBON FILM, 10K 1/6W 5 TA52
R381 0RD0472H609 RESISTOR, FIXED CARBON FILM, 47 1/2W 5 TA52
R382 0RD0472H609 RESISTOR, FIXED CARBON FILM, 47 1/2W 5 TA52
R383 0RD0472H609 RESISTOR, FIXED CARBON FILM, 47 1/2W 5 TA52
R384 0RD0472H609 RESISTOR, FIXED CARBON FILM, 47 1/2W 5 TA52
R385 0RD0472H609 RESISTOR, FIXED CARBON FILM, 47 1/2W 5 TA52
R391 0RD4702F609 RESISTOR, FIXED CARBON FILM, 47K 1/6W 5 TA52
VR313 180-037Q RESISTOR, VARIABLE, EVN-DCAA03B24 (MEC), 20KB
VR314 180-037Q RESISTOR, VARIABLE, EVN-DCAA03B24 (MEC), 20KB
VR347 180-038K RESISTOR, VARIABLE, EVM-EGS AOOB24
VR357 180-038K RESISTOR, VARIABLE, EVM-EGS AOOB24
VR367 180-038K RESISTOR, VARIABLE, EVM-EGS AOOB24
OTHERs
P301 366-921E WAFER, IL-G 6 (2.5S)
P302 366-921K WAFER, IL-G 11 (2.5S)
P303 366-167A PIN, BW-501S (17MM)
P304 366-112B PIN, BW-502L (BAEEUN)
P305 381-199B SOCKET, CPT, PCS626-01 (PARK)
SG381 165-004A SPARK GAP, AG20PT 152F-L3N/S-23
SG382 165-004A SPARK GAP, AG20PT 152F-L3N/S-23
SG383 165-004A SPARK GAP, AG20PT 152F-L3N/S-23
SG384 165-004A SPARK GAP, AG20PT 152F-L3N/S-23
SG385 165-004A SPARK GAP, AG20PT 152F-L3N/S-23
MISCELLANEOUS
CRT 2055-10672W CDT, M34KWW30XX 20N6LD, FOR USA/CAN, EUROPE, CIS
or CRT 2055-10673C CDT, M36KWW30XX 20S6LD, FOR AUS.
or CRT 2055-10673H CDT, M34KWW30XX 20R6LD, FOR CENTRAL AMERICA
D/COIL 150-A29N DEGAUSSING COIL
G/WIRE 6868T14001A GROUND WIRE FOR CRT
P/CORD 174-195B POWER CORD, IS011+IS14, 5FT, FOR EUROPE, AUS., CIS
or P/CORD 174-206A POWER CORD, 6FT, GY, FOR USA, CENTRAL AMERICA
S/CABLE 6866TA9004A SIGNAL CABLE, 2990-9C, AT, L1220, IVORY
- 45 -
- 16 -
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
