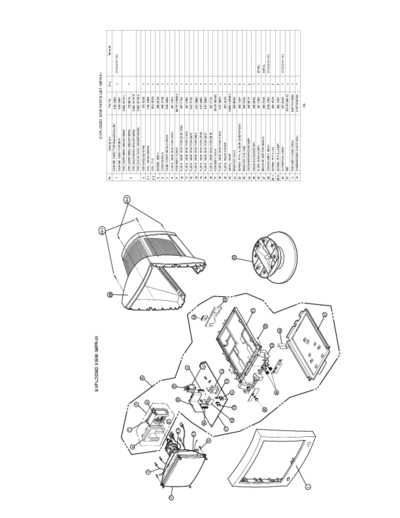

Image preview - the first page of the document
>> Download CS580_7 documenatation <<
Text preview - extract from the document
EXPLODED VIEW (MPR-II)
29-1
EXPLODED VIEW PARTS LIST (MPR-II)
28 No Description Part No. Q'ty Material
CABINET ASS'Y FOR StudioWorks 56i 300-D30A
1 1 CYCLOCK KJU
CABINET ASS'Y FOR 56W 300-D30K
CRT (NORTHERN HEMISPHERE) 2055-10741L
29-2 CRT (NORTHERN HEMISPHERE) 112-881A
7 1
2
6 CRT (SOUTHERN HEMISPHERE) 2055-10741S
A
CRT (EQUATORIAL HEMISPHERE) 2055-10742A
B 3 CRT GROUND WIRE 170-152B 1
3 8 4-1 COIL, DEGAUSSING 150-A29B 1
4-2 COIL, TILT 150-A29M 1
5 SCREW ASS'Y 339-002B 4
6 VIDEO SHIELD 409-170B 1
7 CASE, VIDEO SHIELD REAR 302-A63A 1
9
2 8 PLATE, HEAT SINK FOR IC301 407-T67A 1
31
9 PCB ASS'Y, VIDEO 6871TVH005A 1
4-2 10
10 PLATE, HEAT SINK FOR Q703,D704 407-T72A 1
11 11 PLATE, HEAT SINK FOR IC 651 407-T68A 1
12 PLATE, HEAT SINK FOR Q901 407-T73C 1
4-1 19
13 PLATE, HEAT SINK FOR D952 407-S88A 1
14 PLATE, HEAT SINK FOR IC952 407-S29C 1
18 15 PLATE, HEAT SINK FOR Q501 407-S29C 1
5
16 PLATE, HEAT SINK FOR Q816 407-T71A 1
17 PCB ASS'Y, MAIN 3313T15004A 1
18 PLATE, HEAT SINK FOR IC 601 407-S87D 1
12
20 19 PLATE, REAR COVER 431-123H 1
17 13
20 METAL, REAR 4950TKS018A 1
16 14
15 30 21 BRACKET, MAIN 340-698A 1
22 SCREW, PTP + 4 x 20BP (MSWR/FZMY) 332-102F 2
23 BRACKET, VOLUME 340-733A 1
24 KNOB, BRIGHT/CONTRAST 440-957A 2
21 25 KNOB, MICOM-ROTARY 440-958A 1
26 PLATE, SHIELD (FBT) 407-T83A 1 STEEL
27 BRACKET, BOTTOM SHIELD 340-732A 1 METAL
25 22
28 COVER ASS'Y, BACK 303-K30A 1 CYCLOCK KJU
23 29-1 SCREW PTP 4 x 40 332-102H 2
24 29-2 SCREW PTP 4 x 20BP 332-102F 2
26
30 TILT/SWIVEL ASS'Y 231-048A 1 CYCLOCK KJU
31 FBT 6174T13001C 1
A PCB ASS'Y, VIDEO TOTAL 6871TVT003A 1
B CHASSIS ASS'Y, MAIN TOTAL 3141TZZ004A 1
- 35 -
1
27
EXPLODED VIEW PARTS LIST (TCO-92)
EXPLODED VIEW (TCO-92) 29-1 No Description Part No. Q'ty Material
1 CABINET ASS'Y 300-D30F 1 CYCLOCK KJU
28
2 CRT (NORTHERN HEMISPHERE) 2055-10741L 1
3 CRT GROUND WIRE 170-152D 1
4-1 COIL, DEGAUSSING 150-A29B 1
29-2
7 4-2 COIL, TILT 150-A29M 1
6
5 SCREW ASS'Y 339-002B 4
A
6 VIDEO SHIELD 409-170C 1
B
33 7 CASE, VIDEO SHIELD REAR 302-A63A 1
3 8
8 PLATE, HEAT SINK FOR IC301 407-T67A 1
32 9 PCB ASS'Y, VIDEO 6871TVH005C 1
31 10 PLATE, HEAT SINK FOR Q703,D704 407-T72A 1
11 PLATE, HEAT SINK FOR IC 651 407-T68A 1
9
12 PLATE, HEAT SINK FOR Q901 407-T73C 1
13 PLATE, HEAT SINK FOR D952 407-S88A 1
4-2 10
14 PLATE, HEAT SINK FOR IC952 407-S29C 1
11 15 PLATE, HEAT SINK FOR Q501 407-S29C 1
16 PLATE, HEAT SINK FOR Q816 407-T71A 1
4-1 19
17 PCB ASS'Y, MAIN 3313T15004C 1
18 PLATE, HEAT SINK FOR IC 601 407-S87D 1
18
5 19 PLATE, REAR COVER 431-123H 1
20 METAL, REAR 4950TKS018A 1
21 BRACKET, MAIN 340-698A 1
12 22 SCREW, PTP + 4 x 20BP (MSWR/FZMY) 332-102F 2
17 13 20
23 BRACKET, VOLUME 340-733A 1
16 14
15 30 24 KNOB, BRIGHT/CONTRAST 440-957A 2
25 KNOB, MICOM-ROTARY 440-958A 1
26 PLATE, SHIELD (FBT) 407-T83A 1 STEEL
27 BRACKET, BOTTOM SHIELD 340-732A 1 METAL
21 28 COVER ASS'Y, BACK 303-K30A 1 CYCLOCK KJU
29-1 SCREW PTP 4 x 40 332-102H 2
25 22 29-2 SCREW PTP 4 x 20BP 332-102F 2
30 TILT/SWIVEL ASS'Y 231-048A 1 CYCLOCK KJU
23
24 6174T13001B
31 FBT WITH C-BLOCK 1
26 6174T13001A
32 METAL ASS'Y (FRONT EARTH FOR TCO-92) 4951TKE001B 1
33 WIRE ASS'Y, OPEN LOOP FOR TCO-92 6631T11001A 1
A PCB ASS'Y, VIDEO TOTAL 6871TVT003C 1
B CHASSIS ASS'Y, MAIN TOTAL 3141TZZ004C 1
1
- 39 -
27
