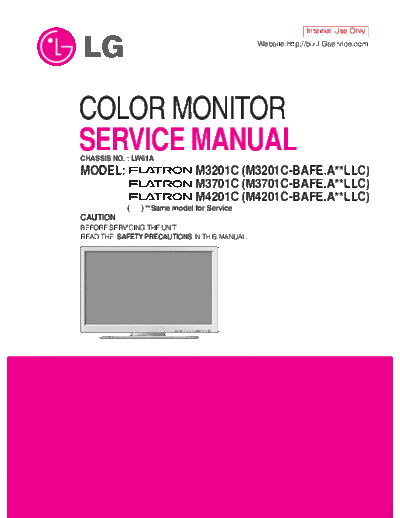

Image preview - the first page of the document
>> Download M3201C Service Manual documenatation <<
Text preview - extract from the document
Internal Use Only
Website:http://biz.LGservice.com
COLOR MONITOR
SERVICE MANUAL
CHASSIS NO. : LW61A
MODEL: M3201C (M3201C-BAFE.A**LLC)
M3701C (M3701C-BAFE.A**LLC)
M4201C (M4201C-BAFE.A**LLC)
( ) **Same model for Service
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CONTENTS
SPECIFICATIONS ................................................... 2 SERVICE OSD ...................................................... 14
PRECAUTIONS ....................................................... 4 TROUBLESHOOTING GUIDE .............................. 17
TIMING CHART ....................................................... 8 WIRING DIAGRAM ............................................... 24
BLOCK DIAGRAM ................................................. 10 EXPLODED VIEW...................................................25
DESCRIPTION OF BLOCK DIAGRAM...................11 REPLACEMENT PARTS LIST ...............................31
ADJUSTMENT ...................................................... 12 SCHEMATIC DIAGRAM ......................................... 42
SPECIFICATIONS
1. LCD CHARACTERISTICS 4-2. Speaker
Type : TFT Color LCD Module 1)TYPE : Detachable
Active Display Area : 31.51 inches(800.4mm) diagonal-M3201C 2)Impedance :8
: 37.02 inches(800.4mm) diagonal-M3701C 3)Input : Max : 15W, Normal : 10W
: 42.02 inches(1067.308mm) diagonal-M4201C 4-2. AV
Pixel Pitch : 170.25 (H) x 510.75 (V) x RGB-M3201C 1)Video Level: Input : 0.7 0.15Vp-p
: 0.2mm (H) x 0.6mm (V) x RGB-M3701C 2)Sync Level : Input : 0.286 0.075Vp-p
: 0.227mm (H) x 0.681mm (V) x RGB-M4201C 3)Color Burst: Input : 0.214 0.072Vp-p
Color Depth : 8bits, 16,777,216 colors 4)Audio Level: NTSC Input : 0.40 0.1Vrms
Electrical Interface : LVDS PAL Input : 0.5 0.1Vrms
Size : 760(H) x 450(D) x 48(D)-M3201C PC Input : 0.7 0.1Vrms
Size : 877(H) x 516.8(D) x 55.5(D)-M3701C 5)Video Cross Talk : 43dB
Size : 1006(H) x 610(D) x 59(D)-M4201C
Surface Treatment : Anti-Glare, Hard Coating(3H) 5. POWER SUPPLY
Operating Mode : Normally Black 5-1. Power Adaptor
Backlight Unit : 18EEFL (20lamps)-M3201C Input : AC 100~240V, 50/60Hz , 2.8A
Backlight Unit : 20EEFL (20lamps)-M3701C,M4201C
5-2. Power Consumption
2. OPTICAL CHARACTERISTICS
MODE H/V SYNC VIDEO POWER CONSUMPTION LED COLOR
2-1. Viewing Angle by Contrast Ratio 10
