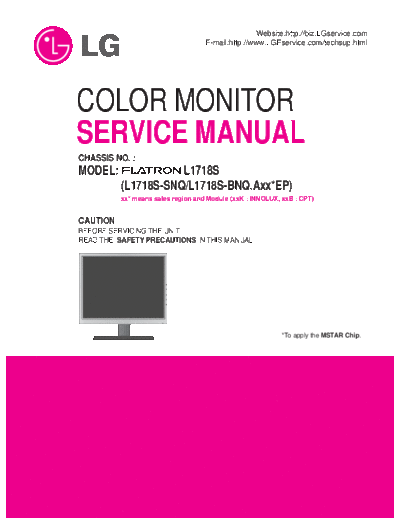

Image preview - the first page of the document



>> Download lg_l1718s-sn documenatation <<

Text preview - extract from the document

                                                   Website:http://biz.LGservice.com
                                    E-mail:http://www.LGEservice.com/techsup.html




COLOR MONITOR
SERVICE MANUAL
CHASSIS NO. :
MODEL:               L1718S
          (L1718S-SNQ/L1718S-BNQ.Axx*EP)
          xx* means sales region and Module (xxK : INNOLUX, xxB : CPT)


CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.




                                                           *To apply the MSTAR Chip.
                                                                CONTENTS
SPECIFICATIONS ................................................... 2         SERVICE OSD ............................................... .........14
PRECAUTIONS ....................................................... 3        TROUBLESHOOTING GUIDE .............................. 15
TIMING CHART ....................................................... 7
                                                                             WIRING DIAGRAM ............................................... 22
DISASSEMBLY ........................................................ 8
                                                                             EXPLODED VIEW ................................................... 23
BLOCK DIAGRAM...................................................10
DISCRIPTION OF BLOCK DIAGRAM ................... 11                          REPLACEMENT PARTS LIST ............................... 24
ADJUSTMENT ...................................................... 13         SCHEMATIC DIAGRAM ......................................... 32


                                                          SPECIFICATIONS
1. LCD CHARACTERISTICS                                                       5. POWER SUPPLY
   Type                : TFT Color LCD Module                                   5-1. Power : AC 90~264V, 47.5~63Hz , <0.8A
   Active Display Area : 17 inch                                                5-2. Power Consumption
   Pixel Pitch         : 0.264 (H) x 0.264 (V)
   Color Depth         : 16.2M colors                                             MODE          H/V SYNC VIDEO POWER CONSUMPTIONLED COLOR
  Size                     : 358.5 (H) x 296.5 (V) x 17.5(D)                 POWER ON (NORMAL    ON/ON ACTIVE     less than 35 W  GREEN
  Electrical Interface     : LVDS                                                STAND-BY         OFF/ON  OFF      less than 1W    AMBER
   Surface Treatment         : Hard-coating(3H), Haze=25%                        SUSPEND          ON/OFF  OFF      less than 1W    AMBER
                                        Anti-Glare treatment
                                                                                 DPMS OFF        OFF/OFF  OFF      less than 1W    AMBER
    Operating Mode         : Normally White, Transmissive mode
    Backlight Unit         : Top/Bottom edge side 4-CCFL                       POWER S/W Off                         less than 1W    Off

                             (Cold Cathode Fluorescent Lamp)
2. OPTICAL CHARACTERISTICS
    2-1. Viewing Angle by Contrast Ratio  10
    (a) For InnoLux MT170EN01 V.7 panel: Left
        75
