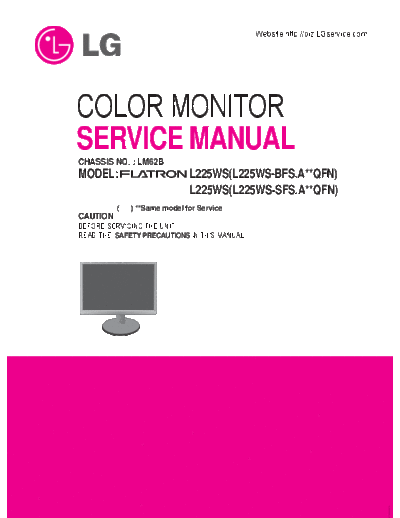

Image preview - the first page of the document
>> Download L225WSBFSA_ET-SB-EX-SI_1306224972 documenatation <<Text preview - extract from the document Website:http://biz.LGservice.com
COLOR MONITOR
SERVICE MANUAL
CHASSIS NO. : LM62B
MODEL: L225WS(L225WS-BFS.A**QFN)
L225WS(L225WS-SFS.A**QFN)
( ) **Same model for Service
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CONTENTS
SPECIFICATIONS ................................................... 2 ADJUSTMENT ...................................................... 12
PRECAUTIONS ....................................................... 3 TROUBLESHOOTING GUIDE .............................. 14
TIMING CHART ....................................................... 7 WIRING DIAGRAM ............................................... 18
DISASSEMBLY ........................................................8 EXPLODED VIEW...................................................19
BLOCK DIAGRAM ................................................. 9 REPLACEMENT PARTS LIST ...............................21
DESCRIPTION OF BLOCK DIAGRAM...................10 SCHEMATIC DIAGRAM ......................................... 25
SPECIFICATIONS
1. LCD CHARACTERISTICS 4. MAX. RESOLUTION
Type : TFT Color LCD Module Analog : 1680 x 1050@60Hz
Active Display Area : 22 inch diagonal
Pixel Pitch : 0.282 (H) x 0.282 (V)
Size : 493.7(H) x 320.1(V) x 16.5(D) 5. POWER SUPPLY
Color Depth : 16.7M (8bit) colors 5-1. Power Adaptor(Built-in Power)
Electrical Interface : LVDS Input : AC 100-240V~, 50/60Hz, 1.0A
Surface Treatment : AG(Haze 25%), Hard Coating(3H)
Operating Mode : Normally White 5-2. Power Consumption
Backlight Unit : 4 CCFL
MODE H/V SYNC VIDEO POWER CONSUMPTION LED COLOR
2. OPTICAL CHARACTERISTICS less than 50 W(max)
2-1. Viewing Angle by Contrast Ratio 10 POWER ON (NORMAL) ON/ON ACTIVE BLUE
less than 45 W(typ)
Left : +75
