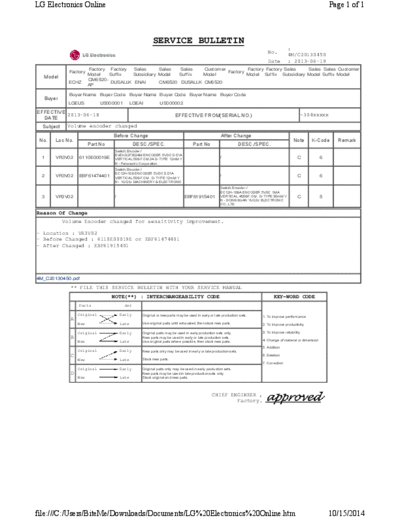

Image preview - the first page of the document
>> Download LG+CM6520-AP documenatation <<
Text preview - extract from the document
LG Electronics Online Page 1 of 1
SERVICE BULLETIN
:
No.
4M/C20130450
Date : 2013-06-19
Factory Factory Sales Sales Sales Customer Factory Factory Sales Sales Sales Customer
Factory Factory
Model Suffix Subsidiary Model Suffix Model Model Suffix Subsidiary Model Suffix Model
Model
CM6520-
ECHZ DUSALLK ENAI CM6520 DUSALLK CM6520
AP
Buyer Name Buyer Code Buyer Name Buyer Code Buyer Name Buyer Code
Buyer
LGEUS US000001 LGEAI US000002
EFFECTIVE
2013-06-18 EFFECTIVE FROM(SERIAL NO.) ~304xxxxx
DATE
Subject Volume encoder changed
Before Change After Change
No. Loc No. Note K-Code Remark
Part No DESC./SPEC. Part No DESC./SPEC.
Switch,Encoder /
EVEKD2F3024M ENCODER 5VDC 0.01A
1 VR3V02 6110E00019E VERTICAL 50GF.CM 24 D-TYPE 12mM Y
/ C 6
N - Panasonic Corporation.
Switch,Encoder /
EC12H-109 ENCODER 5VDC 0.01A
2 VR3V02 EBF61474401 VERTICAL 50GF.CM . D-TYPE 12mM Y
/ C 6
N - YUQIU MACHINERY & ELECTRONIC
Switch,Encoder /
EC12H-109A ENCODER 5VDC 1MA
3 VR3V02 / EBF61915401 VERTICAL 400GF.CM . D-TYPE 30mM Y C 5
N - DONGGUAN YUQIU ELECTRONIC
CO.,LTD
Reason Of Change
Volume Encoder changed for sensitivity improvement.
- Location : VR3V02
- Before Changed : 6110E00019E or EBF61474401
- After Changed : EBF61915401
4M_C20130450.pdf
** FILE THIS SERVICE BULLETIN WITH YOUR SERVICE MANUAL
NOTE(**) : INTERCHANGEABILITY CODE KEY-WORD CODE
Parts Set
Original Early Original or new parts may be used in early or late production sets. 1. To improve performance
A
New Late Use original parts until exhausted, then stock new parts. 2. To improve productivity
Original Early Original parts may be used in early production sets only. 3. To improve reliability
B New parts may be used in early or late production sets.
Use original parts where possible, then stock new parts. 4. Change of material or dimension
New Late
5. Addition
Original Early New parts only may be used in early or late production sets.
C 6. Deletion
New Late Stock new parts.
7. Correction
Original Early Original parts only may be used in early production sets.
D New parts may be used in late production sets only.
New Late Stock original and new parts.
CHIEF ENGINEER ,
Factory.
file:///C:/Users/BiteMe/Downloads/Documents/LG%20Electronics%20Online.htm 10/15/2014
Internal Use Only
Website http://biz.lgservice.com
SERVICE MANUAL
Mini Hi-Fi System
SERVICE MANUAL
MODEL: CM6520 (CM6520, CMS6520F/W)
MODEL: CM6520 (CM6520, CMS6520F/W)
CAUTION
BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS"
IN THIS MANUAL.
P/NO : AFN75814415 JUNE , 2012
CONTENTS
SECTION 1 ........ GENERAL
SECTION 2 ........ CABINET & MAIN CHASSIS
SECTION 3 ........ ELECTRICAL
SECTION 4 ........ REPLACEMENT PARTS LIST
1-1
SECTION 1
SUMMARY
CONTENTS
SERVICING PRECAUTIONS ................................................................................................................... 1-3
ESD PRECAUTIONS .................................................................................................................................. 1-5
SERVICE INFORMATION FOR EEPROM .......................................................................................... 1-6
PROGRAM DOWNLOAD GUIDE ........................................................................................................... 1-7
SPECIFICATIONS ....................................................................................................................................... 1-9
1-2
SERVICING PRECAUTIONS
NOTES REGARDING HANDLING OF THE PICK-UP
1. Notes for transport and storage
1) The pick-up should always be left in its conductive bag until immediately prior to use.
2) The pick-up should never be subjected to external pressure or impact.
Storage in conductive bag Drop impact
2. Repair notes
1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials.
2) The pick-up should always be handled correctly and carefully, taking care to avoid external pressure and
impact. If it is subjected to strong pressure or impact, the result may be an operational malfunction and/or
damage to the printed-circuit board.
3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason
the adjustment point and installation screws should absolutely never be touched.
4) Laser beams may damage the eyes!
Absolutely never permit laser beams to enter the eyes!
Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged.
NEVER look directly at the laser beam, and don't allow
contact with fingers or other exposed skin.
5) Cleaning the lens surface
If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used
for camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cotton
swab should be used, taking care not to distort lens.
Pressure
Magnet
Pressure
How to hold the pick-up
Cotton swab
Conductive Sheet
6) Never attempt to disassemble the pick-up.
Spring has excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab.
(Do not use any other liquid cleaners, because they will damage the lens.) Take care not to use too much
of this alcohol on the swab, and do not allow the alcohol to get inside the pick-up.
1-3
NOTES REGARDING COMPACT DISC PLAYER REPAIRS
1. Preparations
1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These components
are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components
can be damaged, and for that reason components should be handled with care.
2) The pick-up is composed of many optical components and other high-precision components. Care must be
taken, therefore, to avoid repair or storage where the temperature or humidity is high, where strong magnet-
ism is present, or where there is excessive dust.
2. Notes for repair
1) Before replacing a component part, first disconnect the power supply lead wire from the unit
2) All equipment, measuring instruments and tools must be grounded.
3) The workbench should be covered with a conductive sheet and grounded.
When removing the laser pick-up from its conductive bag, do not place the pick-up on the bag. (This is
because there is the possibility of damage by static electricity.)
4) To prevent AC leakage, the metal part of the soldering iron should be grounded.
5) Workers should be grounded by an armband (1 M)
6) Care should be taken not to permit the laser pick-up to come in contact with clothing, in order to prevent stat-
ic electricity changes in the clothing to escape from the armband.
7) The laser beam from the pick-up should NEVER be directly facing the eyes or bare skin.
Armband
Resistor
(1 M)
Resistor
Conductive
(1 M)
Sheet
1-4
ESD PRECAUTIONS
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components
commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated
circuits and some field-effect transistors and semiconductor chip components. The following techniques should
be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off
any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device, which should be removed for potential shock reasons
prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive surface
such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ESD devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can
generate electrical charges sufficient to damage ESD devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD
devices.
6. Do not remove a replacement ESD device from its protective package until immediately before you are
ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive materials).
7. Immediately before removing the protective material from the leads of a replacement ESD device, touch the
protective material to the chassis or circuit assembly into which the device will by installed.
CAUTION : BE SURE NO POWER IS APPLIED TO THE CHASSIS OR CIRCUIT, AND OBSERVE ALL OTHER
SAFETY PRECAUTIONS.
8. Minimize bodily motions when handing unpackaged replacement ESD devices. (Otherwise harmless motion
such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate
static electricity sufficient to damage an ESD device).
CAUTION. GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN EQUILATERAL TRIANGLE, IS
INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE" THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE
SERVICE PERSONNEL TO THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE
LITERATURE.
1-5
SERVICE INFORMATION FOR EEPROM
POWER ON
FLD no disc status
Remote control ` ' + Front `STOP' DETECT NEW EEPROM
push same timing during 5s (OPTION EDIT SCREEN)
NAME HEX
OP0 05
FLD `OP-0.... OP1 00
OP2 00
OP3 00
OP4 00
Move to appropriate position and OP5 09
make changes with remote control. OP6 90
( , , / , REPEAT ) OP7 06
OP8 90
OP9 08
Press STOP key
FLD `write ok'
Remote control ` ' +
Front `STOP' push same timing
FLD `E2P CLR'
Completed
1-6
PROGRAM DOWNLOAD GUIDE
1. AUDIO PROGRAM
Download program file name must be RCT606_YYMMDDX.HEX
If security program (Water Wall) is activated on your PC, you must save the file to the usb storage
device and disable the security software, then download the file to your set.
Caution: When downloading the file, you should neither unplug the usb device, change to the other
function, nor power off the device. Usb device must be unplugged when the downloading
process is completed.
ON VFD DISPLAY SCREEN
NO USB
Insert usb device at usb function
READ
FIRMWARE
WRITE 00 .. 100
UPDATED
POWER OFF AUTOMATICALLY When completed, remove usb device.
1-7
2. CD PROGRAM
Download program file name must be HD003_DATE_00.BIN
If security program (Water Wall) is activated on your PC, you must save the file to the usb storage
device and disable the security software, then download the file to your set.
Caution: When downloading the file, you should neither unplug the usb device, change to the other
function, nor power off the device. Usb device must be unplugged when the downloading
process is completed.
ON VFD DISPLAY SCREEN
NO USB
Insert usb device at usb function
READ
FIRMWARE
FINISH
UPDATED
POWER OFF AUTOMATICALLY When completed, remove usb device.
1-8
SPECIFICATIONS
