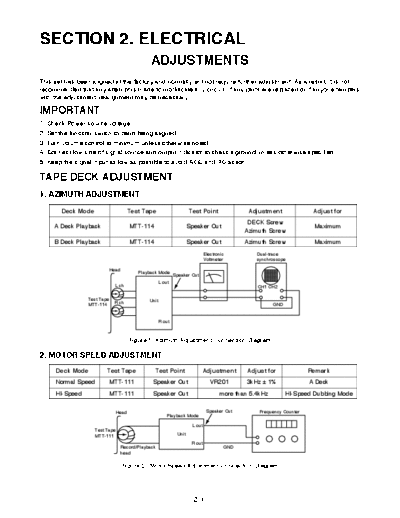

Image preview - the first page of the document



>> Download ADJUSTMENT documenatation <<

Text preview - extract from the document

SECTION 2. ELECTRICAL
                                            ADJUSTMENTS
This set has been aligned at the factory and normally will not require further adjustment. As a result, it is not
recommended that any attempt is made to modificate any circuit. If any parts are replaced or if anyone tampers
with the adjustment, realignment may be necessary.

IMPORTANT
1. Check Power-source voltage.
2. Set the function switch to band being aligned.
3. Turn volume control to minimum unless otherwise noted.
4. Connect low side of signal source and output indicator to chassis ground unless otherwise specified.
5. Keep the signal input as low as possible to avoid AGC and AC action.

TAPE DECK ADJUSTMENT
1. AZIMUTH ADJUSTMENT

       Deck Mode                    Test Tape                      Test Point               Adjustment               Adjust for
                                                                                            DECK Screw
     A Deck Playback                MTT-114                        Speaker Out                                       Maximum
                                                                                           Azimuth Screw
     B Deck Playback                MTT-114                        Speaker Out             Azimuth Screw             Maximum
                                                                            Electronic         Dual-trace
                                                                            Voltmeter          synchroscope

                         Head
                                       Playback Mode
                                                           Speaker Out
                                                   L out
                             L ch                                                              CH1 CH2

                 Test Tape                  Unit
                 MTT-114     R ch                                                                     GND


                                                   R out



                                    Figure 1. Azimuth Adjustment Connection Diagram

2. MOTOR SPEED ADJUSTMENT
     Deck Mode           Test Tape            Test Point                 Adjustment         Adjust for              Remark
     Normal Speed        MTT-111             Speaker Out                       VR201        3kHz
