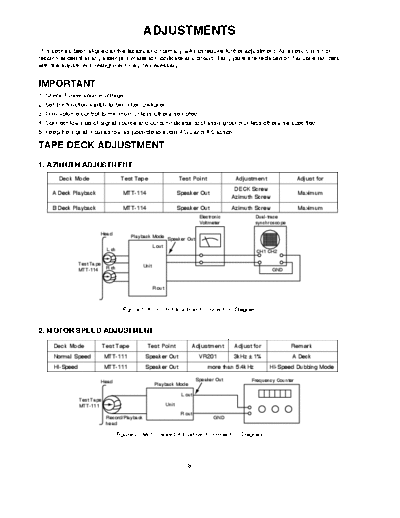

Image preview - the first page of the document



>> Download 363ADJ documenatation <<

Text preview - extract from the document

                                               ADJUSTMENTS
This set has been aligned at the factory and normally will not require further adjustment. As a result, it is not
recommended that any attempt is made to modificate any circuit. If any parts are replaced or if anyone tampers
with the adjustment, realignment may be necessary.


IMPORTANT
1. Check Power-source voltage.
2. Set the function switch to band being aligned.
3. Turn volume control to minimum unless otherwise noted.
4. Connect low side of signal source and output indicator to chassis ground unless otherwise specified.
5. Keep the signal input as low as possible to avoid AGC and AC action.

TAPE DECK ADJUSTMENT
1. AZIMUTH ADJUSTMENT
       Deck Mode                      Test Tape                     Test Point              Adjustment               Adjust for
                                                                                            DECK Screw
     A Deck Playback                   MTT-114                      Speaker Out                                      Maximum
                                                                                           Azimuth Screw
     B Deck Playback                   MTT-114                      Speaker Out            Azimuth Screw             Maximum
                                                                              Electronic             Dual-trace
                                                                              Voltmeter              synchroscope

                        Head
                                          Playback Mode
                                                             Speaker Out
                                                     L out
                              L ch                                                                   CH1 CH2

                Test Tape                     Unit
                MTT-114      R ch                                                                          GND


                                                     R out



                                       Figure 1. Azimuth Adjustment Connection Diagram


2. MOTOR SPEED ADJUSTMENT

     Deck Mode              Test Tape            Test Point              Adjustment        Adjust for               Remark
     Normal Speed            MTT-111           Speaker Out                    VR201        3kHz
