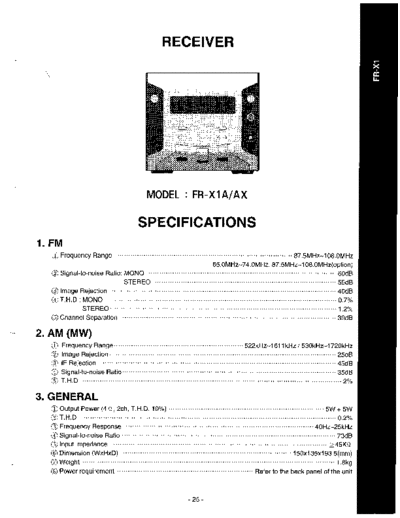

MODEL : FR-XlA/AX
SPECIFICATIONS
1 n
@ Frequency Range ................................................................................. 875MHz-108.OMHz
65OMHz-74.OMHz, 875MHz-108.0MHz(option)
@ Signal-to-noise Ratio: MONO ....................................................................................... 60dB
STEREO .................................................................................... 55dB
@ Image Rejection ......................................................................................................... 40dB
@ T.H.D : MONO ......................................................................................................... 0.7%
STEREO ......................................................................................................... 1.2%
@ Channel Separation ................................................................................................... 30dB
--_- 2. AM (MW)
@ Frequency Range ............................................................ 522kHz-1611 kHz / 530kHz-1720kHz
@ Image Rejection ......................................................................................................... 25dB
@ IF Rejection ............................................................................................................ 45dB
@ Signal-to-noise Ratio ................................................................................................... 35dB
@ T.H.D ........................................................................................................................ 2%
3.
Output Power (4 St, 2ch, T.H.D. 10%) ........................................................................ 5w+5w
T.H.D ..................................................................................................................... 0.2%
Frequency Response ....................................................................................... 4OHz-25kHz
Signal-to-noise Ratio ................................................................................................... 73dB
Input impedance ................................................................................................... >45KQ
-
Dimension (WxHxD) .............................................................................. 150x135x1 93.5(mm)
Weight ..................................................................................................................... 1.8kg
Power requirement ............................................................... Refer to the back panel of the unit
