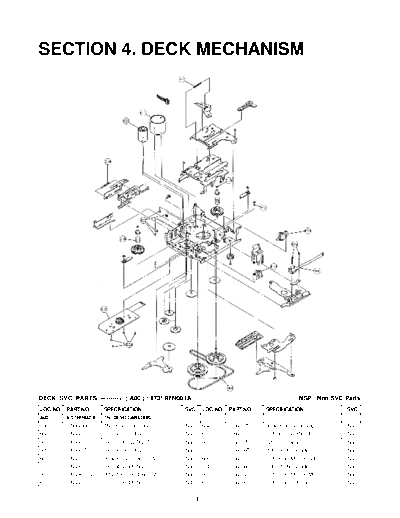

Image preview - the first page of the document
>> Download TCC9010_DECK documenatation <<Text preview - extract from the documentSECTION 4. DECK MECHANISM
DECK SVC PARTS ---------> ( A00 ) : 6731RFN001A NSP : Non SVC Parts
LOC. NO. PART NO. SPECIFICATION SVC LOC. NO. PART NO. SPECIFICATION SVC
A00 6731RFN001A TN-708-143 CAR LOGIC
A00-1 6730R-N001A TN-708-143 CAR LOGIC NSP 604 6768R-CT01C 9C04-20-303 SCREW ADJ NSP
608 6768R-RT01A 1970-07-303 ROLLER NSP 612 6768R-ST01C 1970-08-12 SPRING REE NSP
601 6768R-BT01A 1970-11-06 BELT/FELT NSP 605 6768R-HT01A 6201-07-57 HEAD NSP
609 6768R-RT01B 1970-07-304 ROLLER (R) NSP 613 6768R-WT01A 9W02-50-040 WASHER 1. NSP
602 6768R-CT01A 9C04-20-253 SCREW CAM NSP 606 6768R-QT01A 1970-09-301 MOTOR SUB NSP
610 6768R-ST01A 1970-04-12 SPRING E-L NSP 614 6768R-WT01B 9W01-20-050 WASHER 2. NSP
603 6768R-CT01B 9P02-20-031 SCREW TAM NSP 607 6768R-QT01B 1970-10-301 MOTOR MAI NSP
611 6768R-ST01B 1970-12-05 SPRING P.S NSP 615 6768R-XT01A 1970-13-301 SPECIAL R NSP
- 4-1 -
