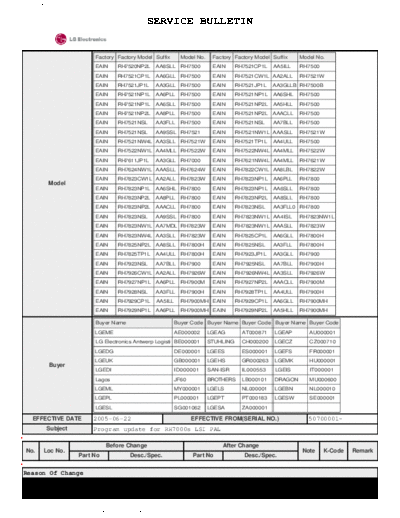

Image preview - the first page of the document
>> Download programupdate documenatation <<
Text preview - extract from the document
LG Electronics Online
SERVICE BULLETIN
:
No.
0AVD20050070
Date : 2005-06-29
Factory Factory Model Suffix Model No. Factory Factory Model Suffix Model No.
EAIN RH7520NP2L AA8SLL RH7500 EAIN RH7521CP1L AA5ILL RH7500
EAIN RH7521CP1L AA6GLL RH7500 EAIN RH7521CW1L AA2ALL RH7521W
EAIN RH7521JP1L AA3GLL RH7500 EAIN RH7521JP1L AA3GLLB RH7500B
EAIN RH7521NP1L AA6PLL RH7500 EAIN RH7521NP1L AA6SHL RH7500
EAIN RH7521NP1L AA6SLL RH7500 EAIN RH7521NP2L AA5HLL RH7500
EAIN RH7521NP2L AA8PLL RH7500 EAIN RH7521NP2L AAACLL RH7500
EAIN RH7521NSL AA3FLL RH7500 EAIN RH7521NSL AA7BLL RH7500
EAIN RH7521NSL AA9SSL RH7521 EAIN RH7521NW1L AAASLL RH7521W
EAIN RH7521NW4L AA3SLL RH7521W EAIN RH7521TP1L AA4ULL RH7500
EAIN RH7522NW1L AA4MLL RH7522W EAIN RH7522NW4L AA4MLL RH7522W
EAIN RH7611JP1L AA3GLL RH7000 EAIN RH7621NW4L AA4MLL RH7621W
EAIN RH7624NW1L AAASLL RH7624W EAIN RH7822CW1L AA8LBL RH7822W
EAIN RH7823CW1L AA2ALL RH7823W EAIN RH7823NP1L AA6PLL RH7800
Model
EAIN RH7823NP1L AA6SHL RH7800 EAIN RH7823NP1L AA6SLL RH7800
EAIN RH7823NP2L AA8PLL RH7800 EAIN RH7823NP2L AA8SLL RH7800
EAIN RH7823NP2L AAACLL RH7800 EAIN RH7823NSL AA3FLL0 RH7800
EAIN RH7823NSL AA9SSL RH7800 EAIN RH7823NW1L AA4ISL RH7823NW1L
EAIN RH7823NW1L AA7MDL RH7823W EAIN RH7823NW1L AAASLL RH7823W
EAIN RH7823NW4L AA3SLL RH7823W EAIN RH7825CP1L AA6GLL RH7800H
EAIN RH7825NP2L AA8SLL RH7800H EAIN RH7825NSL AA3FLL RH7800H
EAIN RH7825TP1L AA4ULL RH7800H EAIN RH7923JP1L AA3GLL RH7900
EAIN RH7923NSL AA7BLL RH7900 EAIN RH7925NSL AA7BLL RH7900H
EAIN RH7926CW1L AA2ALL RH7926W EAIN RH7926NW4L AA3SLL RH7926W
EAIN RH7927NP1L AA6PLL RH7900M EAIN RH7927NP2L AAACLL RH7900M
EAIN RH7928NSL AA3FLL RH7900H EAIN RH7928TP1L AA4ULL RH7900H
EAIN RH7929CP1L AA5ILL RH7900MH EAIN RH7929CP1L AA6GLL RH7900MH
EAIN RH7929NP1L AA6PLL RH7900MH EAIN RH7929NP2L AA5HLL RH7900MH
Buyer Name Buyer Code Buyer Name Buyer Code Buyer Name Buyer Code
LGEME AE000002 LGEAG AT000871 LGEAP AU000001
LG Electronics Antwerp Logisti BE000001 STUHLING CH000200 LGECZ CZ000710
LGEDG DE000001 LGEES ES000001 LGEFS FR000001
LGEUK GB000001 LGEHS GR000263 LGEMK HU000001
Buyer
LGEDI ID000001 SAN-ISR IL000553 LGEIS IT000001
Lagos JF60 BROTHERS LB000101 DRAGON MU000600
LGEML MY000001 LGELS NL000001 LGEBN NL000010
LGEPL PL000001 LGEPT PT000183 LGESW SE000001
LGESL SG001062 LGESA ZA000001
EFFECTIVE DATE 2005-06-22 EFFECTIVE FROM(SERIAL NO.) 50700001~
Subject Program update for RH7000s LSI PAL
Before Change After Change
No. Loc No. Note K-Code Remark
Part No Desc./Spec. Part No Desc./Spec.
Reason Of Change
http://biz.lgservice.com/gcsc/svb/main?tc=SvbPrintCmd&DOC_ID=KRSVB000045057 (1 di 2)05/12/2008 10.33.59
LG Electronics Online
#. Symptom
:It can't be possibly saved although you had set divx caption configuration
#. Countermeasure
: Updating by using the newest firmware.
The update method is refer to the attatchment.
#. Program Version : V5.0617
[CD Write method]
Disc Volume Label : RH7000_UP
File Name : LG_HDR_UPDATE.004
50617A_PAL.zip
** FILE THIS SERVICE BULLETIN WITH YOUR SERVICE MANUAL
NOTE(**) : INTERCHANGEABILITY CODE KEY-WORD CODE
Parts Set
1. To improve performance
Original Early Original or new parts may be used in early or late production sets.
A 2. To improve productivity
Use original parts until exhausted, then stock new parts.
New Late
3. To improve reliability
Original Early Original parts may be used in early production sets only.
B New parts may be used in early or late production sets.
4. Change of material or dimension
Use original parts where possible, then stock new parts.
New Late
5. Addition
Original Early New parts only may be used in early or late production sets.
C
Stock new parts. 6. Deletion
New Late
Original Early 7. Correction
Original parts only may be used in early production sets.
D New parts may be used in late production sets only.
Stock original and new parts.
New Late
CHIEF ENGINEER ,
Factory.
http://biz.lgservice.com/gcsc/svb/main?tc=SvbPrintCmd&DOC_ID=KRSVB000045057 (2 di 2)05/12/2008 10.33.59
